Emmegi - PENDOLAREPL-MIL-EMM-2002-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Emmegi PENDOLARE For Sale | gindumac.com

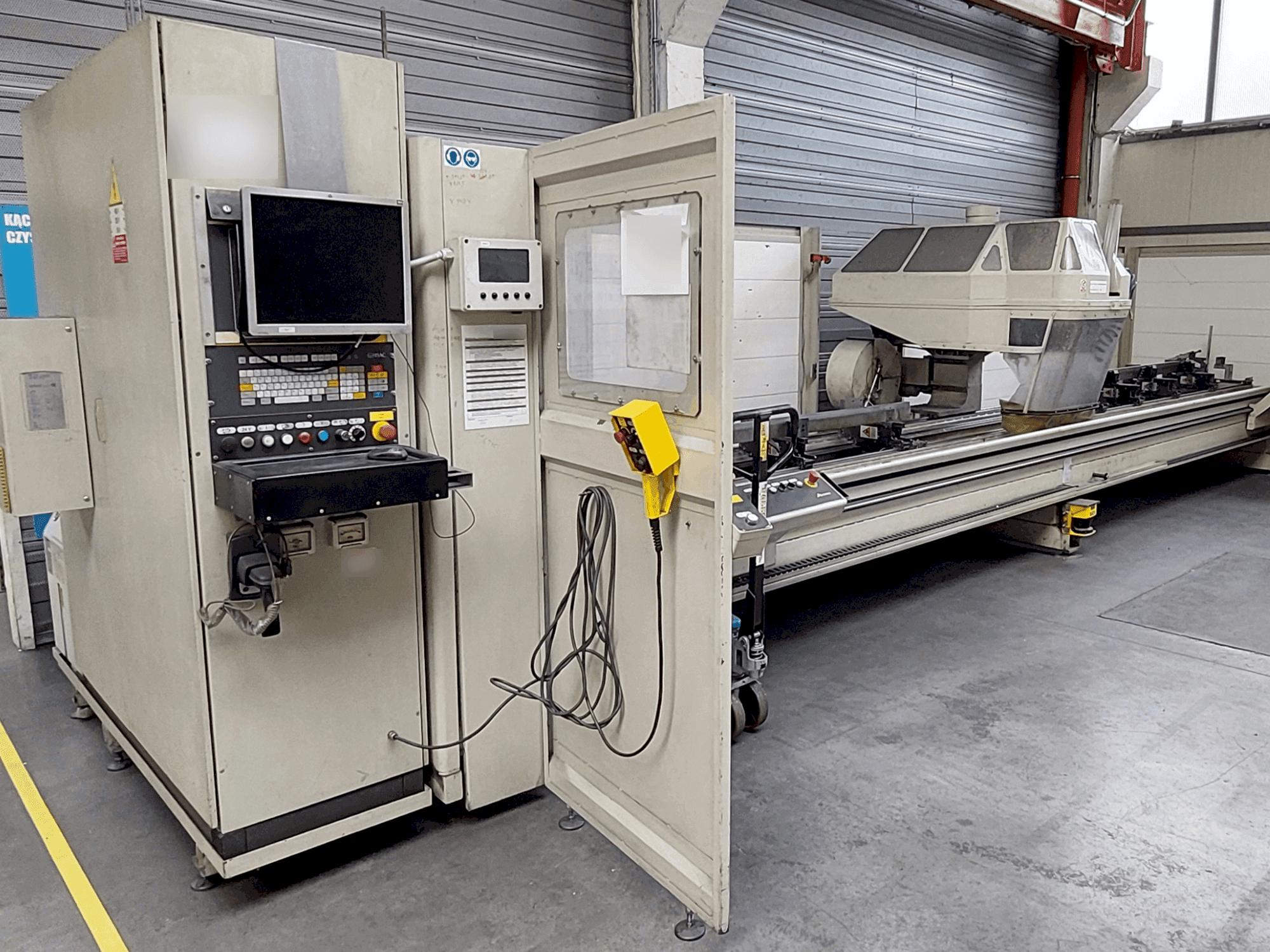

This 4-axis Emmegi PENDOLARE was manufactured in 2002. A universal machining center designed for aluminum, PVC, and light alloys, it features a spindle speed of 24000 rpm and a substantial X-axis movement of 7280 mm. Weighing 5500 kg, it's a robust option for diverse machining needs. Consider the Emmegi PENDOLARE machine we have for sale. Contact us for further details regarding this universal machining center.
Overview
- brand: Emmegi
- year: 2002
- MODEL: PENDOLARE
- production hours: 27730
- application type: Milling
- Location: Poland
- machine type: Machining centers (universal)
- availability: Immediately
Technical Information - Emmegi PENDOLARE
General Data
- Machine weight: 4800 kg
Main drive
- Number of spindles: 1
- Spindle speed range: 20000 rpm 1/MIN
- Spindle motor power: 7 kW
Movement
- X-AXIS Movement: 7280 mm
- Y-AXIS Movement: 525 mm
- Z-AXIS Movement: 380 mm
- A-AXIS Movement: 180° MM
Additional Equipment
- - Capacity of Tool Magazine 8 pcs
Additional Information
- Technical Machine Benefits:
- - Maximum positioning speed of x-axis 80 m/min
- - Maximum positioning speed of y-axis 60 m/min
- - Maximum positioning speed of z-axis 30 m/min
- - Maximum positioning speed of a-axis from 0° to 90° in 1° steps
- - Tool clamping system hsk-40e
- - Number of clamping devices 6" 8 pcs
- - Positioning of clamping devices automatic
- - Installed power 23 kw
- - Operating pressure 6 - 8 bar
- - CNC machining centre for machining bars or workpieces made of aluminium, PVC, light alloys in general, or steel
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
