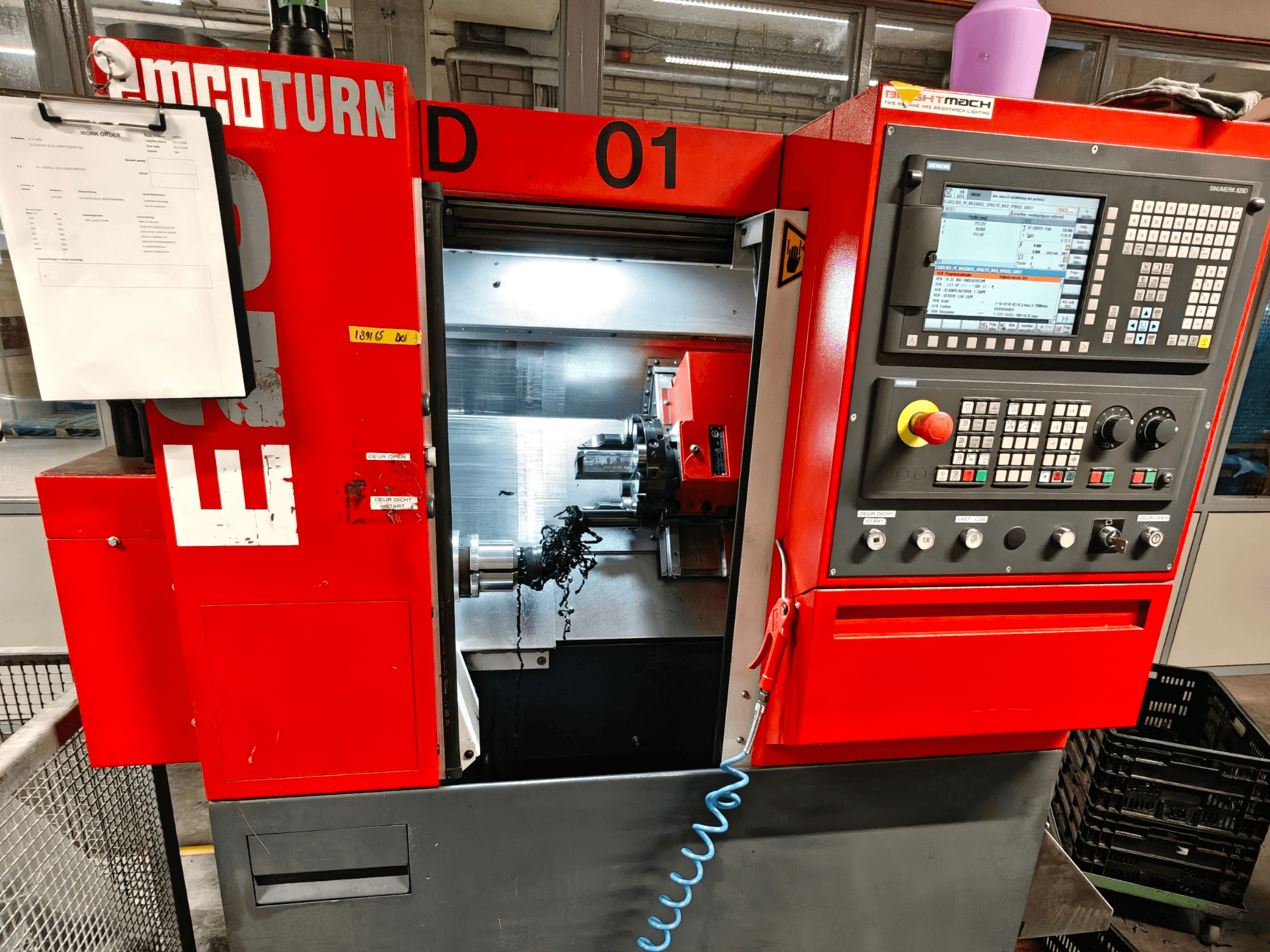

Horizontal turning machine manufactured in 2011. These EMCO TURN E25 features a maximum turning diameter of 85 mm and a turning length of 225 mm. Includes a VDI 16 disk turret with 12 tool stations and a maximum chuck size of 100 mm. If you are looking to get high-quality turning capabilities, consider the EMCO TURN E25 machines we have for sale. Contact us for further details. 2 units available.
Overview
- brand: EMCO
- year: 2011
- MODEL: TURN E25
- production hours: 4741
- application type: Turning
- Location: Netherlands
- machine type: Horizontal Turning Machine
- Available from: 31/10/2026
- control unit brand: SIEMENS
Technical Information - EMCO TURN E25
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 828D
Additional Information
Availability: 2 units
Working range:
Swing over bed: 250 mm
Max. turning diameter: 85 mm
Max. turning length: 225 mm
Max. bar capacity: 25.5 mm
Distance between centers: 405 mm
Main spindle & drive:
Spindle connection: Ø 70 h5
Max. chuck size: Ø 100 mm
Max. torque: 35 Nm
C-axis resolution: 0.001°
Tooling system:
Turret: VDI 16 disk turret with directional logic
Tool stations: 12
Tool shank cross-section: 12 x 12 mm
Feeds & axis performance:
Feed force (X / Z): 3000 N / 3500 N
Rapid traverse (X / Z): 15 m/min / 24 m/min
Positioning spread (Ps): 3 µm
Utilities:
Supply voltage: 400 V (3/PE)
Total connected load: 6 kVA
Coolant tank capacity: 140 liters
Sound pressure level: 78 dB(A)
Additional equipment
Chip conveyor (referenced in the stated machine weight)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
