EMCO - EMCOMAT-E 200X1000IT-TUR-EMC-2003-00001

Name: EMCO EMCOMAT-E 200X1000
Brand: EMCO
SKU: IT-TUR-EMC-2003-00001
Price: 9550 GBP
Availability: InStock

£ 9,550

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used EMCO EMCOMAT-E 200X1000 For Sale | gindumac.com

Show in original language

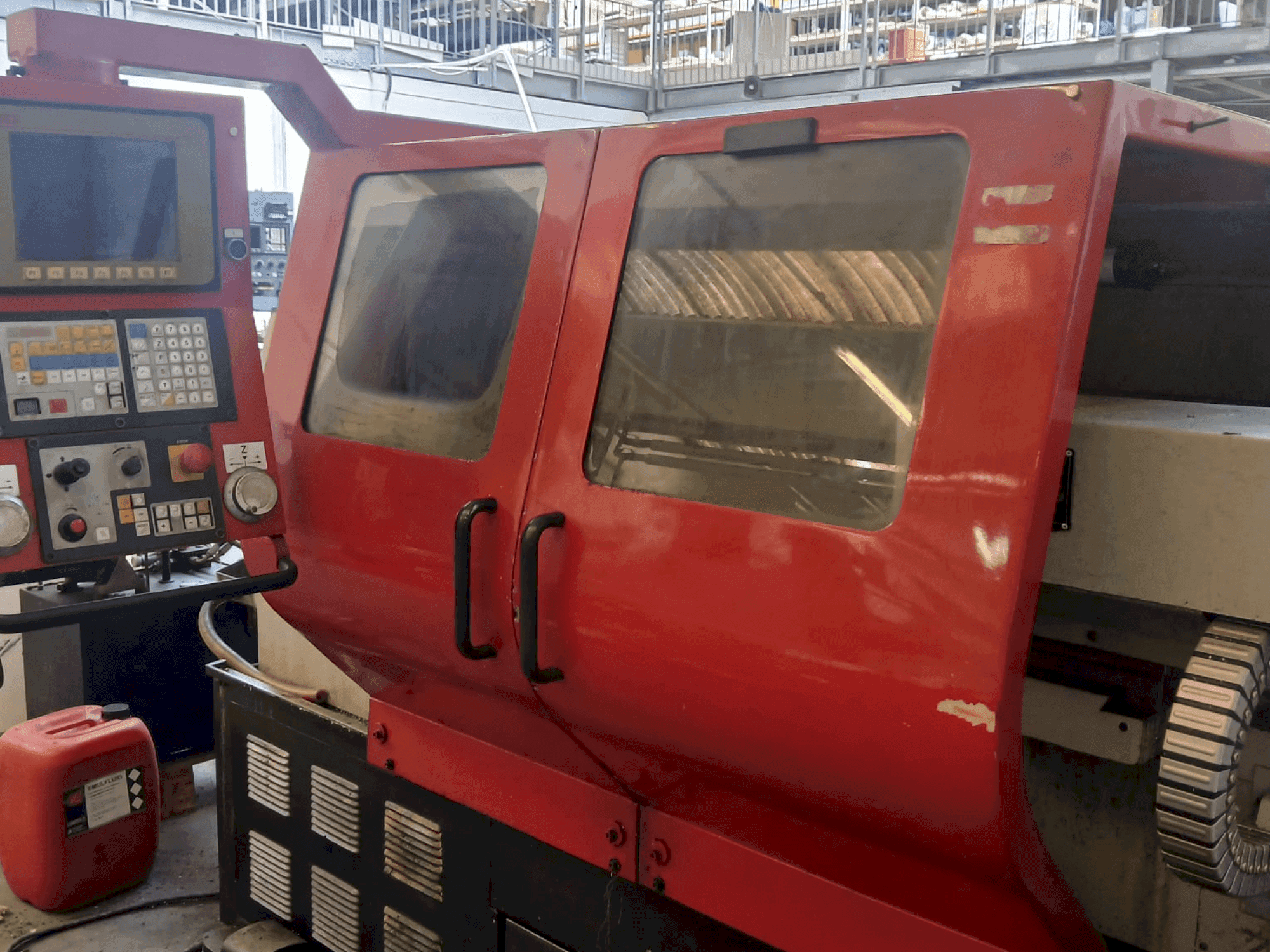

This EMCO EMCOMAT-E 200X1000 was manufactured in 2003. A robust horizontal turning machine featuring a FAGOR 8055 CNC, it offers a spindle speed of up to 3000 rpm and a spindle power of 11-15 kW. The machine handles a maximum diameter of 400 mm above the bed and 220 mm over the slide, with a center height of 200 mm. Contact us for more information about this machine.

Overview

brand: EMCO
year: 2003
MODEL: EMCOMAT-E 200X1000
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FAGOR

Technical Information - EMCO EMCOMAT-E 200X1000

General Data

Machine weight: 2100 kg

Control Unit

Brand: FAGOR
Model: 8055

Main drive

Spindle speed range: 3000 rpm 1/MIN
Spindle motor power: 11-15 kW
Spindle bore: 52 mm

Movement

X-AXIS Movement: 220 mm
X-AXIS Rapid traverse: 5 m/min
Z-AXIS Movement: 1000 mm
Z-AXIS Rapid traverse: 5 m/min

Tail Stock

Pinol diameter: 52 mm
Pinol tool taper: 4 N

Additional Equipment

- Total Installed Power: 13 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Z-axis continuous thrust: 550 dan
- - X-axis continuous thrust: 550 dan
- - Center height above bed: 200 mm
- - Nominal distance between centers: 1000 mm
- - Permitted diameter above bed: 400 mm
- - Permitted diameter over slide: 220 mm
- - Manual quill stroke: 145 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
