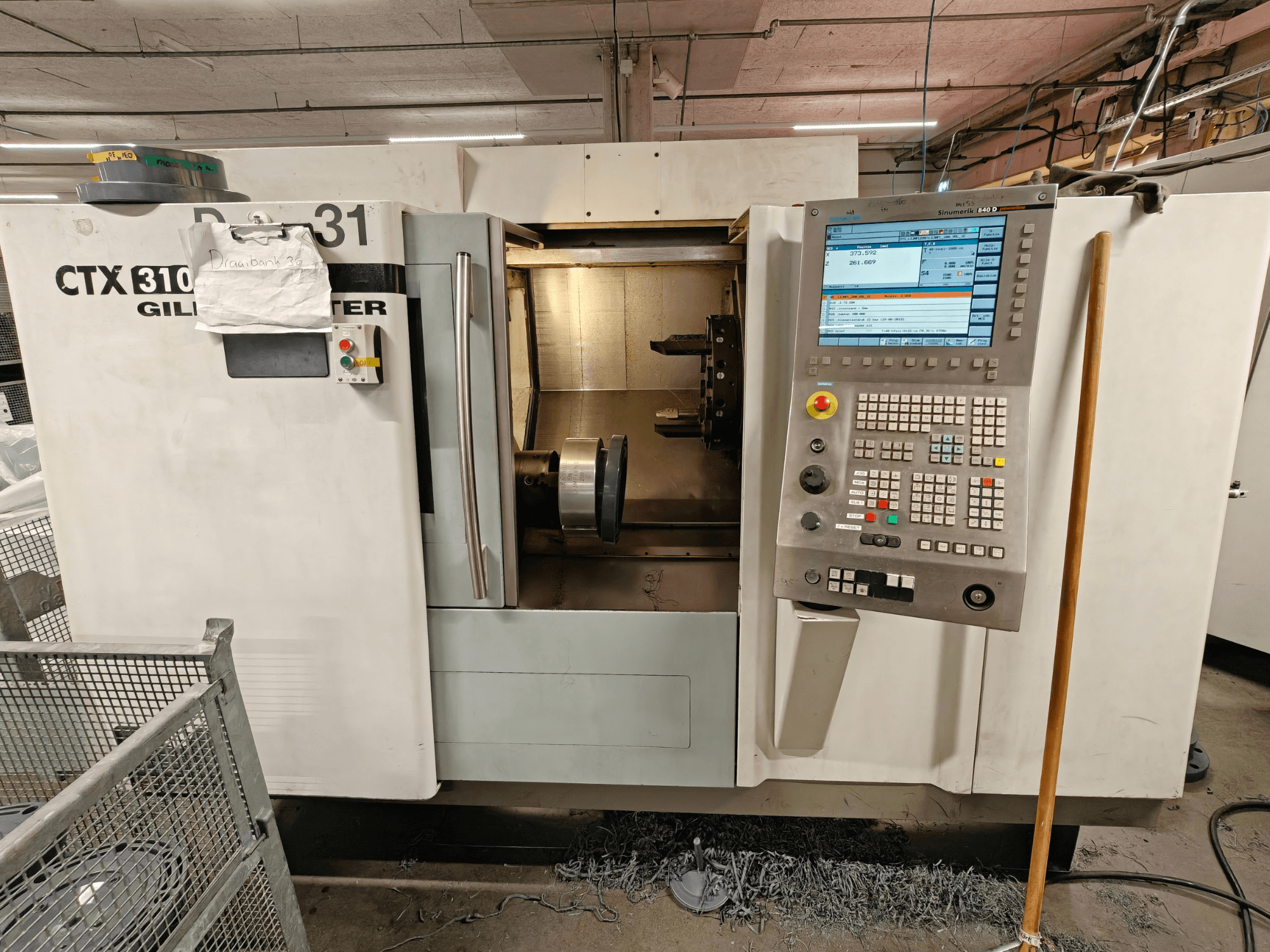

Gildemeister - CTX 310NL-TUR-GIL-2003-00001

• Availability: 2 units available

• Spindle

  • Nose: FL 140 h5

  • Max torque: 115 Nm (153 Nm at 40% S6)

  • Bore: 69 mm

  • Chuck diameter: 170 mm (optional 210 mm)

  • Bar capacity: Ø 50 mm

• Working range

  • Swing over bed: 500 mm

  • Max turning diameter: 246 mm

  • Max turning length: 445 mm

  • Distance between centers: 600 mm

• Turret and tools

  • Turret type: VDI 30

  • Tool stations: 12

  • Driven tools speed: 4200–5000 rpm (depends on control: Fanuc/Siemens/Heidenhain)

  • Driven tools power: 3.3–4.4 kW

• Feeds and axis data

  • Rapid traverse (X/Z): 24/30 m/min

  • C-axis rapid: 100 rpm

  • Feed force (X/Z): 450 daN

  • Resolution (X/Z): 0.001 mm

• Bed

  • Inclination: 45°

  • Material: Cast iron

• Electrical and auxiliary

  • Supply voltage: 400 V (±10%), 50 Hz

  • Total installed power: 24 kVA

  • Hydraulic system pressure: 50 bar

  • Coolant tank capacity: 175 liters

• Control systems (options): GE-FANUC 21i-TB, Siemens 840D, Heidenhain 4290 E

Additional equipment

• Chip conveyor (both units)

• Extraction unit (one unit)
