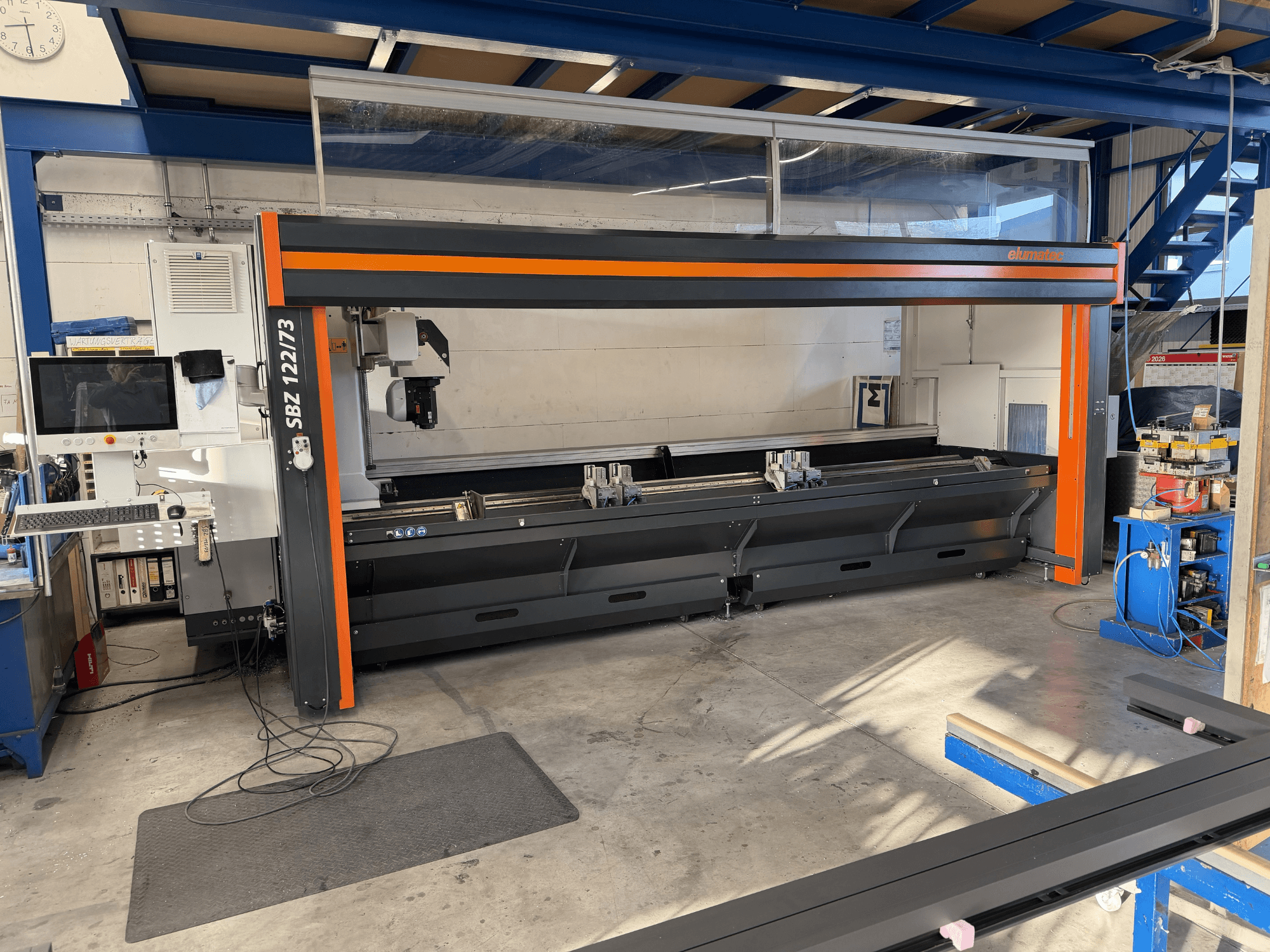

This 4-axis Elumatec SBZ 122/73 was manufactured in 2021. It features a powerful 17.5 kW capacity and a maximum spindle speed of 20,000 1/min, making it suitable for high-performance machining. The machine includes a collision-optimized clamping system and a specialized tooling set for aluminum. If you are looking to get high-quality machining capabilities, consider the Elumatec SBZ 122/73 machine we have for sale. Contact us for further details.
Overview
- brand: Elumatec
- year: 2021
- MODEL: SBZ 122/73
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand:
Technical Information - Elumatec SBZ 122/73
Movement
- Number of Axes: 4
- X-axis Travel: 4176 mm
Technical Specification
- Spindle Speed: 20000 RPM
Additional Information
Profile machining center
Voltage: 400 V
Phase/PE: 3 / PE
Frequency: 50/60 Hz
Power Capacity: 17.5 kW
Nominal Current: 25 A
Max. Motor Current: 20 A
Short Circuit Current Rating (Ik/SCCR): 5 kA
Operating Pressure (P 1): 7 bar
Machine Weight: 3800 kg
Suction Connection Diameter: Ø 120 mm
Spindle Speed 1: 4000 1/min
Spindle Speed 2: 20000 1/min
Profile Length Measurement: Reinforced version for SBZ 122-73-74-75
Tooling: HM cutter set for aluminum, HSK-F63 d16 L=155 tool holder for disc milling cutter, disc milling cutter D=92x6.0mm Z=14 d=16 HM
Clamping System: 4 x Collision-optimized clamping units (upgraded version)
Material Stop: Right-hand stop for 122/70/71/73/74 with 2nd clamping circuit
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
