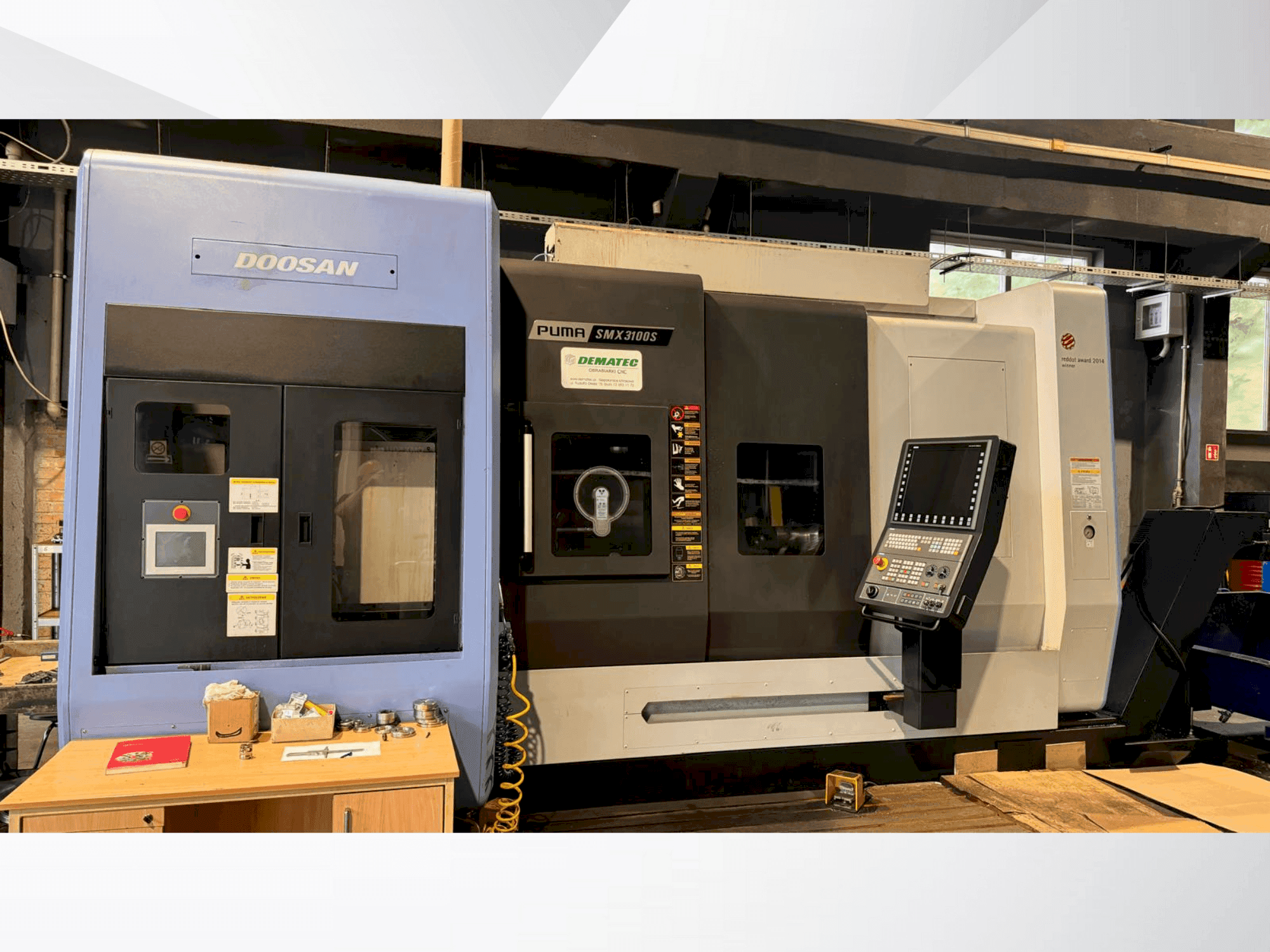

Front view of DOOSAN PUMA SMX 3100 S machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN PUMA SMX 3100 S

Photo Gallery

DOOSAN - PUMA SMX 3100 SPL-TUR-DOO-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN PUMA SMX 3100 S For sale | gindumac.com

Show in original language

This 7-axis DOOSAN PUMA SMX 3100 S lathe was manufactured in 2019. It features a max turning diameter of 660 mm and a length of 1540 mm. Equipped with Siemens Sinumerik 840D SL control, it offers precise multi-axis coordination. It has 2 HWR's chucks: the spindle is VT-S031 and the sub-spindle is VT-S026. Additional features include an 80-capacity tool storage, built-in coolant pump, and a robust chip conveyor. Ideal for complex machining tasks, the DOOSAN PUMA SMX 3100 S machine we have for sale. Contact us for further details regarding this lathe.

Overview

brand: DOOSAN
year: 2019
MODEL: PUMA SMX 3100 S
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - DOOSAN PUMA SMX 3100 S

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840D SL

Dimensions

Machine Depth: 4900 mm
Machine Height: 2850 mm
Machine Weight: 16700 kg

Movement

Number of Axes: 7
X-axis Travel: 630 mm
Y-axis Travel: 300 mm
Z-axis Travel: 1585 mm

Additional Information

Additional equipment

Air Gun // Coolant Gun
Automatic Workpiece Measurement: RMP60, Renishaw // Automatic Front Door: With Safety Device
Doosan Tool Load Monitoring
Linear Scale (X1 Axis): Absolute Pulse Coder // Linear Scale (Y Axis): Absolute Pulse Coder
Rotary Type Window Wiper: Electrical
Tool Setter: Automatic, Electric
Robot Interface: PROFIBUS-DP Type
Helical Interpolation
Arbitrary Speed Threading
Skiving Solution

Machine Benefits

Qualitative Machine Benefits

High precision with linear scales and absolute pulse coder
Enhanced safety and automation features (automatic front door, tool setter)

Technical Machine Benefits

Coolant pump for milling spindle: 2. 2 kw, 7. 0 mpa
Oil skimmer: belt type
B-axis movement: 240º // c1-axis: 0. 0001º - 360º // c2-axis: 0. 001º - 360º
High capacity tool storage (80 tools)
Advanced control system (siemens sinumerik 840d sl)
2 hwr's chucks: the spindle is vt-s031 and the sub-spindle is vt-s026

Extra Information

Machine still under power VT-S031: Diameter: 315 mm Center bore: 91 mm Maximum pulling force: 60 kN Maximum clamping force: 150 kN Maximum rotational speed: 3000 rpm VT-S026: Diameter: 264 mm Center bore: 72 mm Maximum pulling force: 55 kN Maximum clamping force: 125 kN Maximum rotational speed: 3500 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
