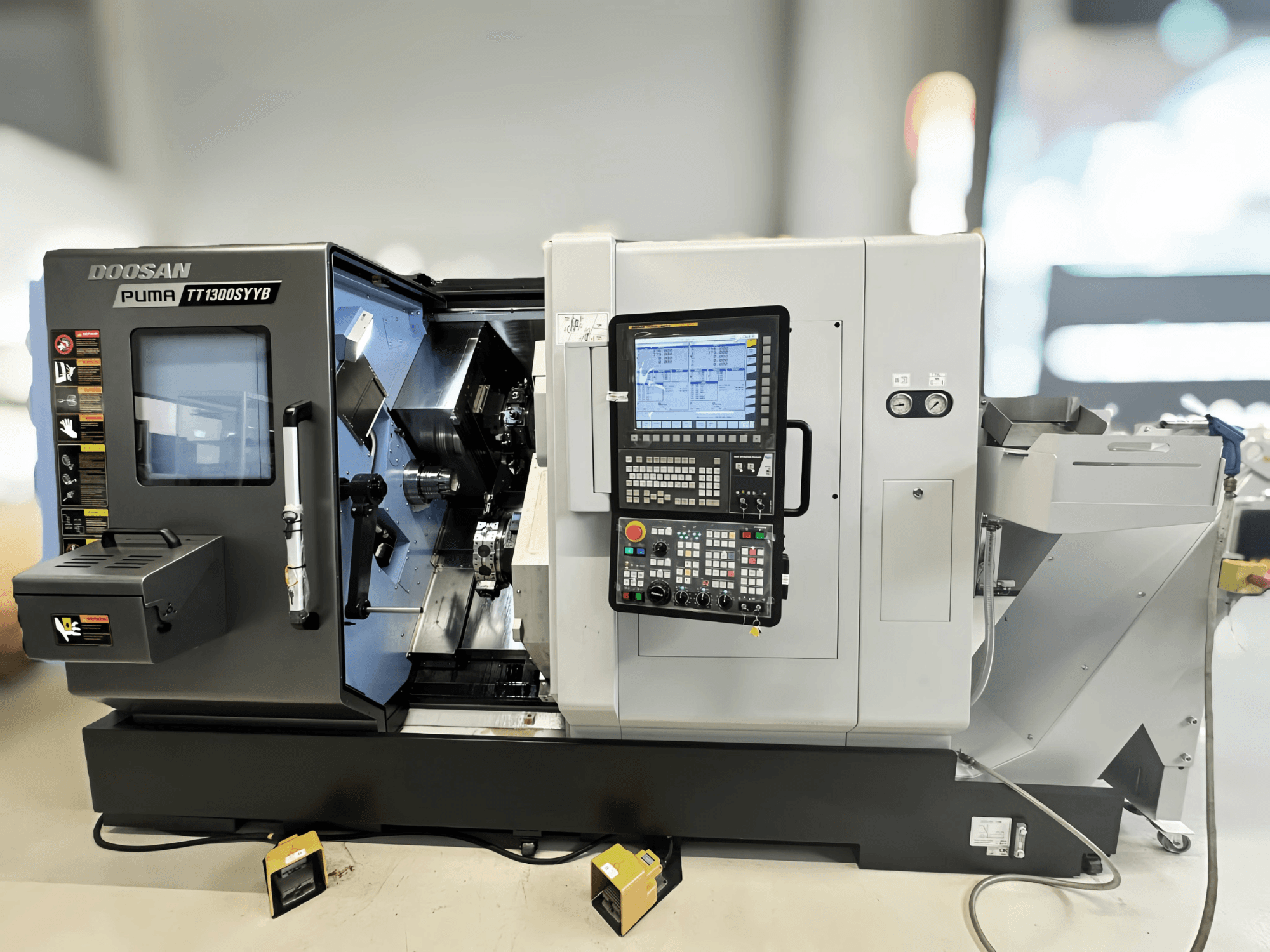

This 8-axis DN SOLUTIONS PUMA TT1300SYYB turn-mill centre was manufactured in 2019. As new, showroom model. It features a twin-spindle and twin-turret configuration, allowing for independent operation. With a maximum spindle speed of 6,000 RPM and integrated high-speed C-axis and Y-axis, it offers advanced capabilities for complex machining. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS PUMA TT1300SYYB machine we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2019
- MODEL: PUMA TT1300SYYB
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DN SOLUTIONS PUMA TT1300SYYB
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Height: 2070 mm
- Machine Length: 3510 mm
- Machine Width: 2300 mm
Movement
- Number of Axes: 8
- X-axis Travel: 135 mm
- Y-axis Travel: 30 mm
- Z-axis Travel: 230 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 15 kW
- Spindle Speed: 6000 RPM
Additional Information
Configuration: Twin-spindle / twin-turret (independent operation)
Chuck size: 6" (170)
Bar capacity: 51 mm
Travels: X1/X2 135/80 mm; Z1/Z2 530/530 mm; Y-axis 30/40 mm
Spindle motor power: 15 / 11 / 7.5 kW
Turret stations: 12 / 12 (BMT 45)
Guideways: Roller guideway
Capabilities: Integrated high-speed C-axis and Y-axis for complex machining
Additional equipment
High-pressure coolant through turret
Oil skimmer
Coolant supply through right/sub-spindle
Parts ejector (sub-spindle)
Parts catcher at main spindle with collection box
Parts removal conveyor belt for sub-spindle
Tool setter (automatic electric)
Automatic shut-off
Bar feeder interface (bar feeder not included)
3-color status light
Optional: Chip conveyor (hinge belt conveyor). Price on request
Machine is delivered with standard basic package: Turret fully equipped, base holder included.
Optional:
5 pcs. External turning tool holder BMT45 20x20 single (500-0665)
2 pcs. Facing tool holder BMT45 20x20 left right (500-0668)
1 pc. External turning tool holder BMT45 20x20 double single (500-0669)
2 pcs. Double external turning tool holder HS (500-0686)
1 pc. Parting-off tool holder (500-6317)
7 pcs. Drill holder ID 25mm BMT 45 (500-5898)
2 pcs. Double internal turning tool holder GS
2 pcs. IK-cover drill holder (500-5687)
2 pcs. Reducing sleeve set Boring
2 pcs. Reducing sleeve set Drill
1 pc. Adapter set PRECI-FLEX ER20 (BMT 45P) (500-0524)
2 angled externally cooled Eppinger AGWs
2 straight externally cooled Eppinger AGWs
Additional Information
As new, showroom model
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
