DMG - MU 70 ECO MillDE-MIL-DMG-2015-00005

£ 90,822
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

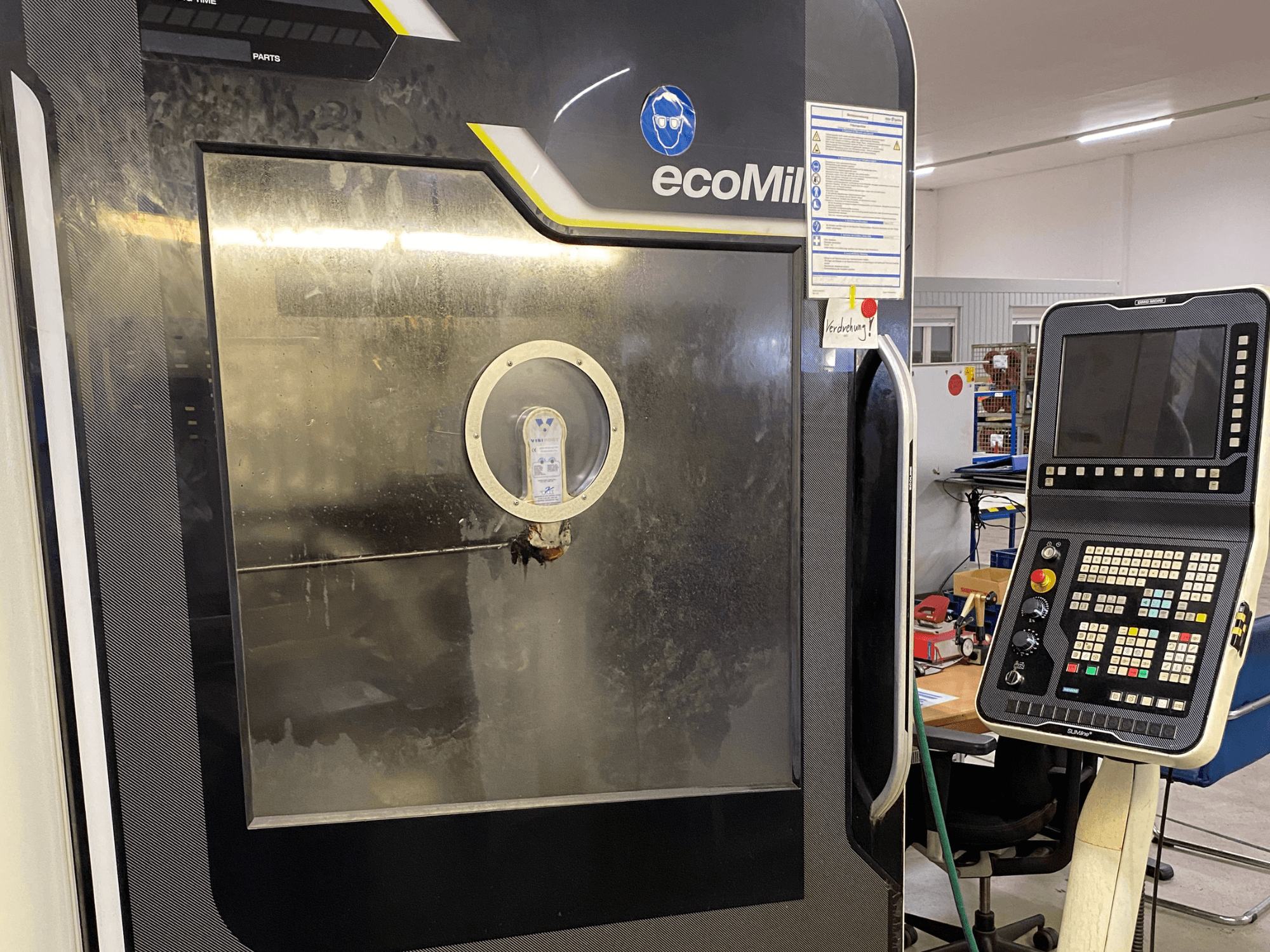

This 5-axis DMG MU 70 ECO Mill was manufactured in 2015. It features a maximum spindle speed of 12,000 rpm and a robust integrated NC swivel rotary table. Weighing 7,800 kg, this machine is equipped with an external chip conveyor and a coolant/filtration tank unit. If you are looking to get high-quality machining capabilities, consider the DMG MU 70 ECO Mill vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: DMG
  • year: 2015
  • MODEL: MU 70 ECO Mill
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: SIEMENS

Technical Information - DMG MU 70 ECO Mill

Control Unit

  • Control Brand: SIEMENS
  • Control Model: SLIMline

Dimensions

  • Machine Weight: 7800 kg

Movement

  • Number of Axes: 4
  • X-axis Travel: 750 mm

Technical Specification

  • Spindle Speed: 12000 RPM

Additional Information

- Axis Travel: Standard ecoMill 70 specifications typically feature X = 750 mm, Y = 600 mm, Z = 520 mm

- Maximum Spindle Speed: 12,000 max. 1/min (rpm)

- Machine Weight: 7,800 kg

- Apparent Power: 35 kVA

- Maximum Current (In max): 55 A

- Maximum Current (A max): 23 A

- Short-Circuit Current: 63 A

- Breaking Capacity: 0.6 kA

- Operating Voltage: 400 V ±10% / 440 Vm

- Auxiliary Voltage: 230 V ~ / 24 V =

- Frequency: 50 Hz

- Table Type: Integrated NC Swivel Rotary Table

- Additional Equipment: External Chip Conveyor, Coolant / Filtration Tank Unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
