DMG MORI - NTX 2500/1500SK-MIL-DMG-2019-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG MORI NTX 2500/1500 For Sale | gindumac.com

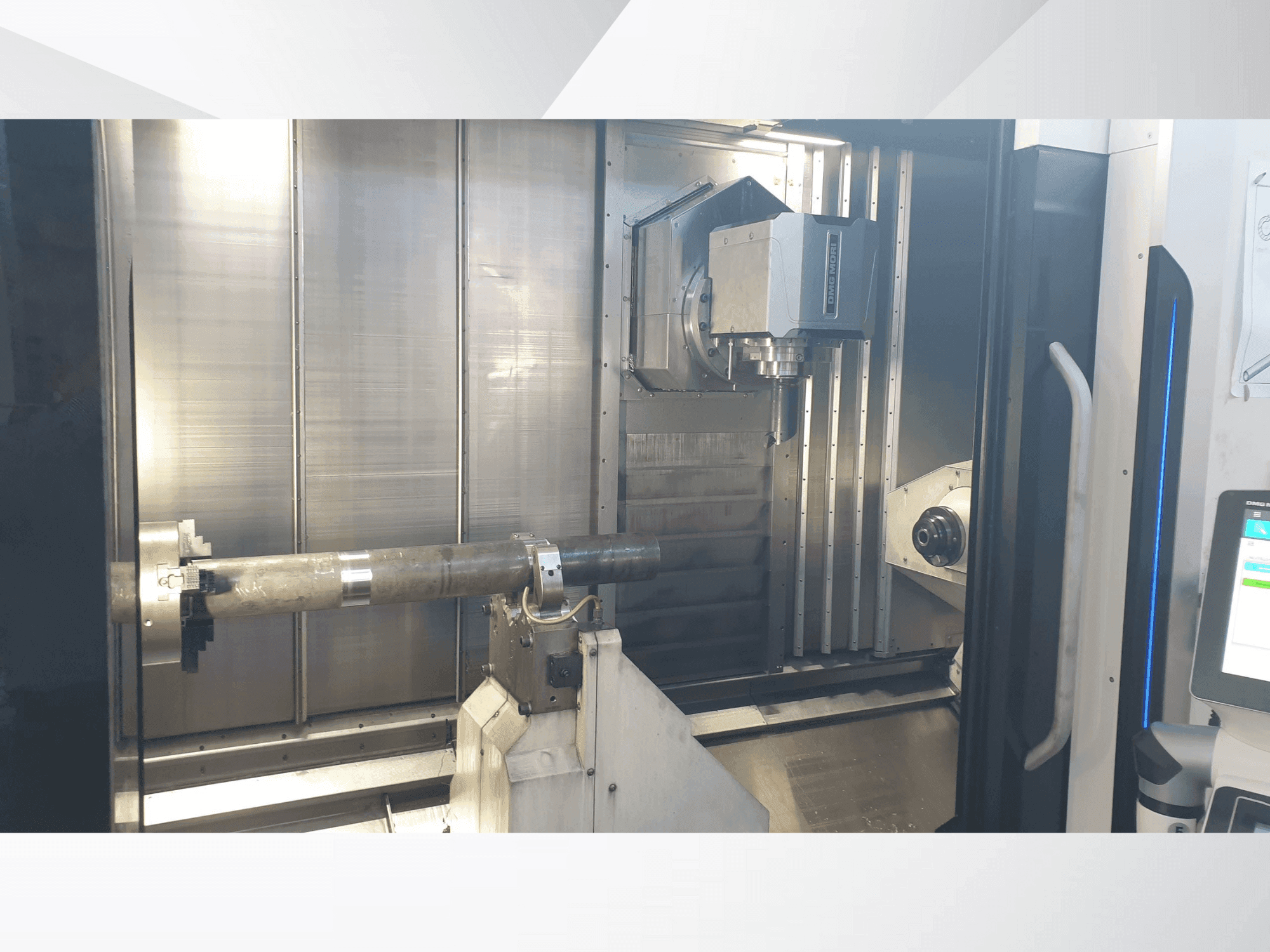

This 5-axis DMG MORI NTX 2500/1500 Turn-Mill Centre was manufactured in 2019. Ideal for complex machining tasks, it combines milling and turning capabilities in one machine. Consider the opportunity to buy this DMG MORI NTX 2500/1500 turn-mill Centre. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2019
- MODEL: NTX 2500/1500
- application type: Turning
- Location: Slovakia
- machine type: Turn-Mill Centre
Technical Information - DMG MORI NTX 2500/1500
Movement
- B-axis Max: 240°
- B-axis Min: 120°
- Number of Axes: 5
- X-axis Travel: 675 mm
- Y-axis Travel: 300 mm
- Z-axis Travel: 1562 mm
Technical Specification
- Number of Tools: 38
- Spindle Power: 26 kW
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment
- Automatic Centering Type Steady Rest: SLU-X3.1 (dia. 20-165mm), servo-driven
- Through-Spindle Coolant System (Turn-mill spindle) Interface for Super-high-pressure 70 Mpa (1015 psi), KNOLL
- Coolant Gun
- Oil Skimmer
- Interface for Mist Collector
- Manual In-Machine Tool Presetter
- In-Machine Measuring System (Turn-mill spindle) Touch Sensor (Radio Signal Transmission Type) RENISHAW
Machine Benefits
Technical Machine Benefits
- Through-spindle hole diameter: 91 mm
- Swing over cross slide: 700 mm
- Max. Turning length: 1616 mm
- Turn-mill spindle max. Speed: 12000/min
- Turn-mill spindle drive motor (<40%ed / cont>): 28 /23 kw
- Spindle taper hole: capto c6
- Built-in center: mt4
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
