DMG - Gildemeister GMX 400 linearAT-TUR-DMG-2004-00001

Name: DMG Gildemeister GMX 400 linear
Brand: DMG
SKU: AT-TUR-DMG-2004-00001
Price: 56800 GBP
Availability: InStock

£ 56,800

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG Gildemeister GMX 400 linear | Turn-Mill Centre

Show in original language

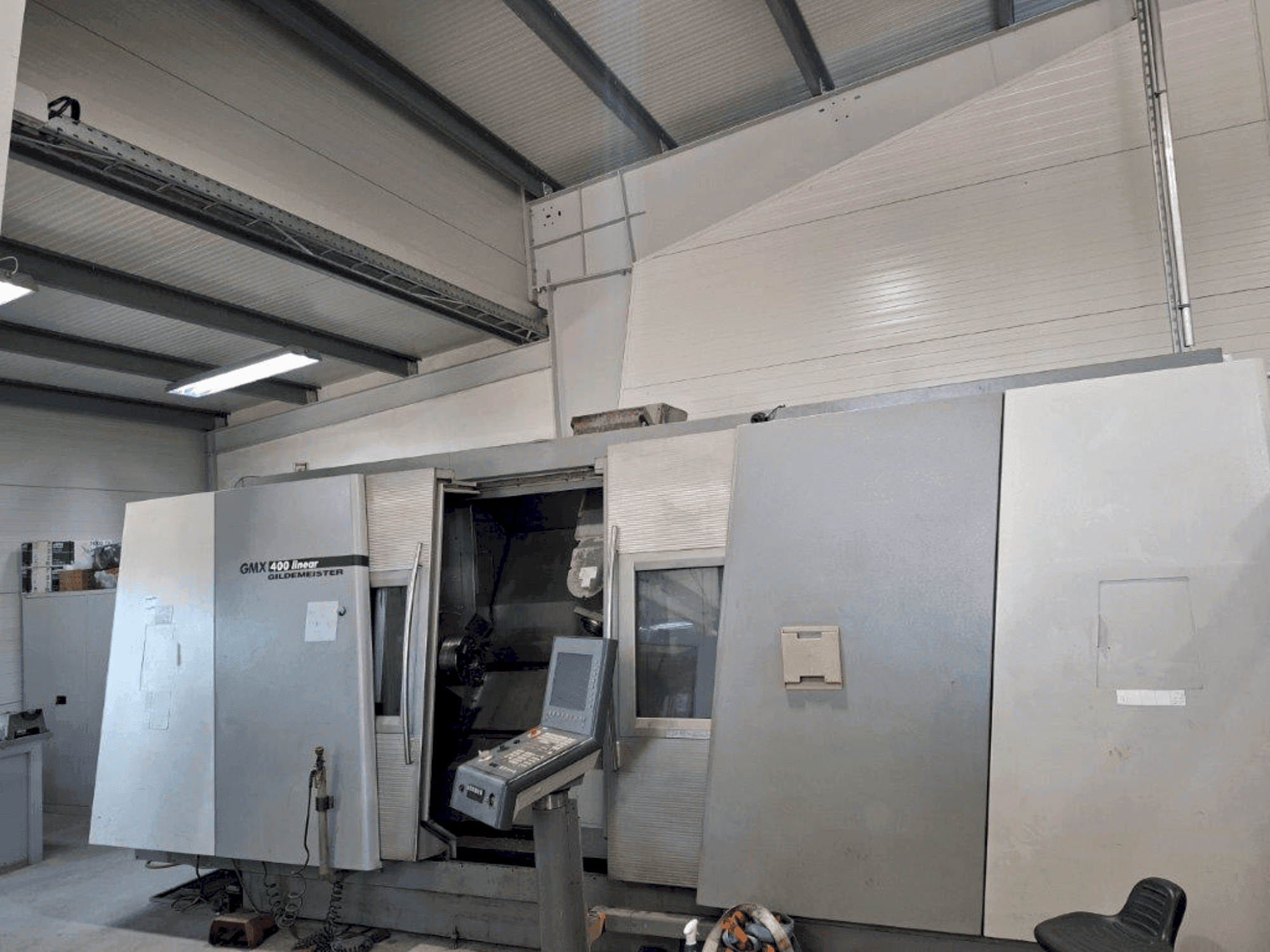

This 7-axis DMG Gildemeister GMX 400 linear was manufactured in 2004, featuring a maximum turning diameter of 640 mm and a turning length of 1,585 mm. It includes a Sinumerik 840D Powerline control, a milling spindle with a max speed of 12,000 rpm, and a tool magazine with up to 120 positions. If you are looking to get high-quality turn-mill capabilities, consider the DMG Gildemeister GMX 400 linear machine we have for sale. Contact us for more information.

Overview

brand: DMG
year: 2004
MODEL: Gildemeister GMX 400 linear
production hours: 18504
application type: Turning
Location: Austria
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - DMG Gildemeister GMX 400 linear

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840D Powerline

Dimensions

Machine Weight: 20000 kg

Movement

Number of Axes: 7
X-axis Travel: 550 mm
Y-axis Travel: 110 mm

Technical Specification

Spindle Speed: 4000 RPM

Additional Information

Additional equipment

Oil mist extraction
Coolant tank with belt filter system
Internal coolant system with 80 bar pressure
Approx. 30 tool holders

Machine Benefits

Technical Machine Benefits

Drive power - main spindle: max. Torque 600 nm
B-axis: +/- 120°
C-axis resolution: 0. 001° and 1°
Maximum turning diameter: 640 mm
Turning length: 1585 mm
Standard turning diameter: 400 mm
Distance between centers of main spindle: max. Bar diameter 90 mm
Chuck diameter: 250 mm (max. 400 mm)
Number of tool positions: 12 positions
Turret tool holder: 40 mm din 69880

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
