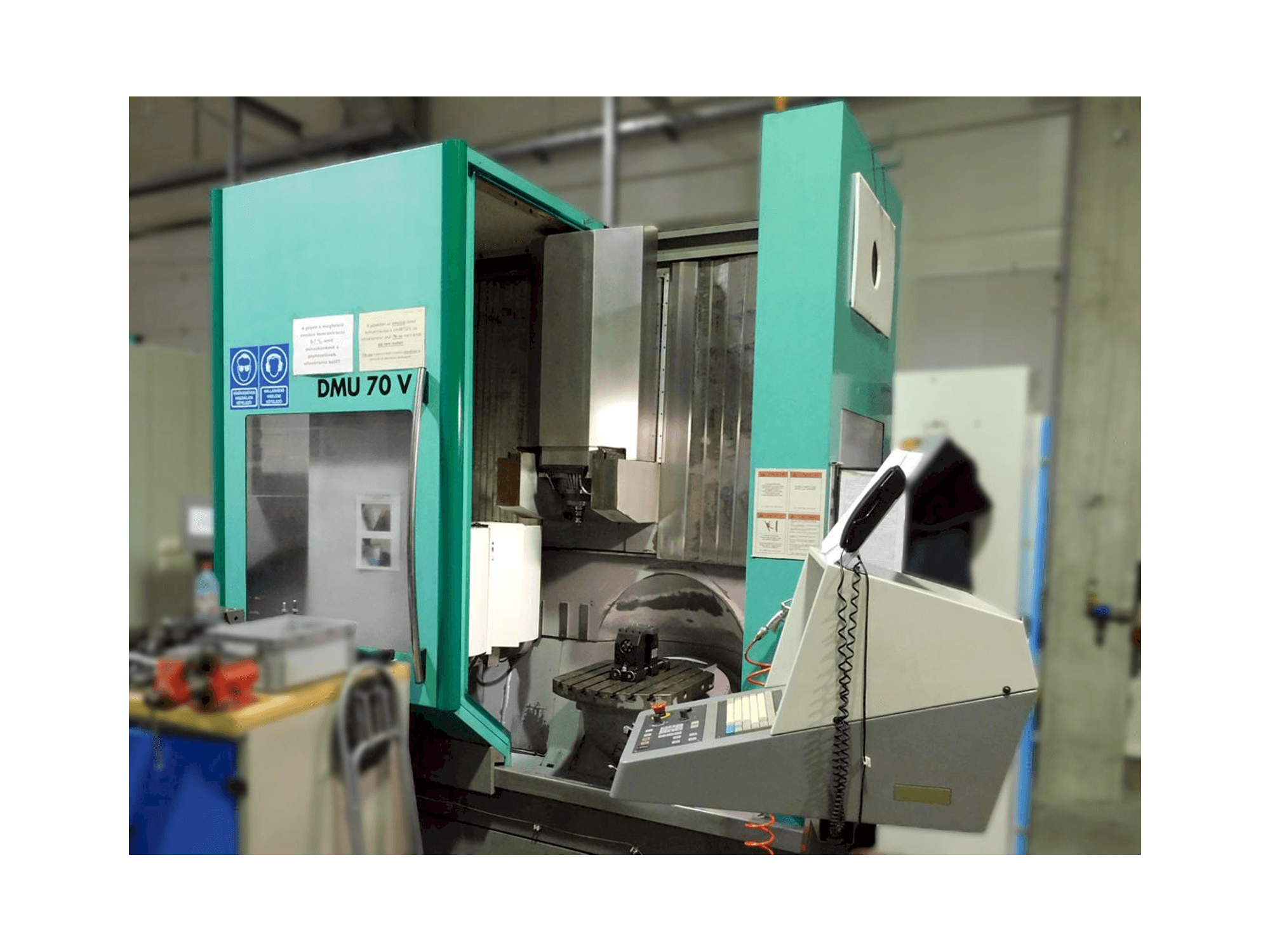

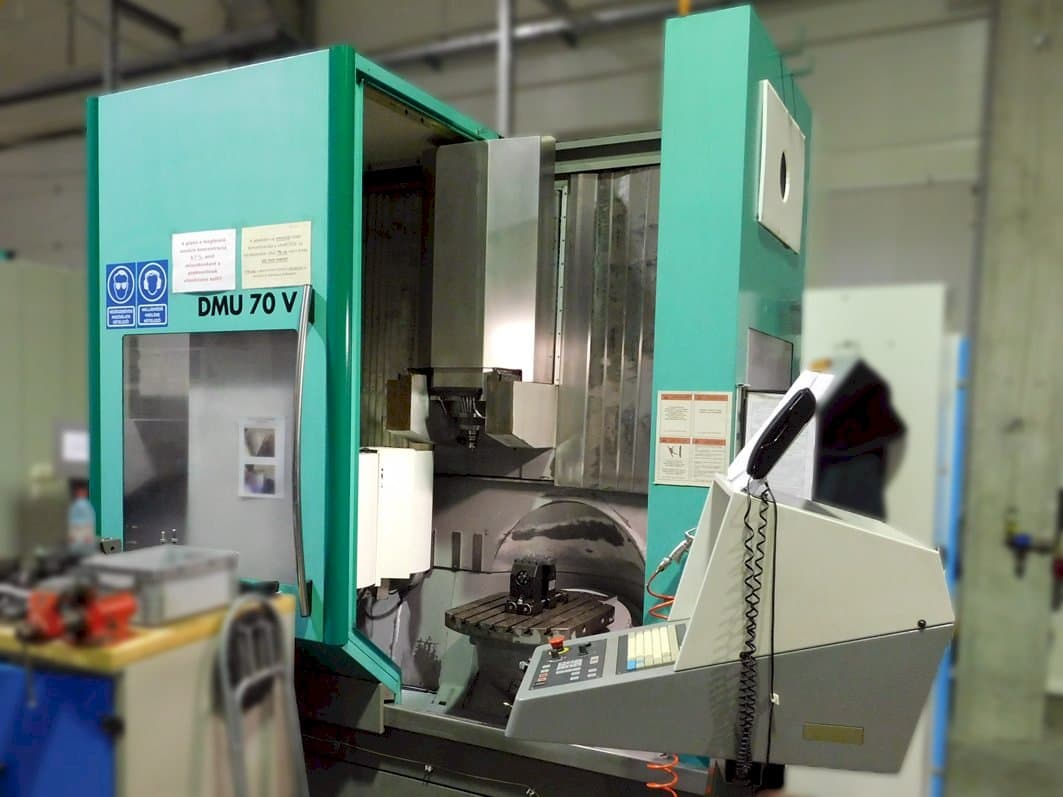

This DMG DMU 70 V Milling Machine was built in Germany in the year 2000. It has been on for 83340 hours, of which 21810 are spindle power hours. It is equipped with a Heidenhain MillPlus control unit. This 5 axis machine can work with a spindle speed up to 30000 rpm. It includes chip conveyor, coolant system, hand wheel for all axes, and spindle cooler.
Overview
- brand: DMG
- year: 2000
- MODEL: DMU 70 V
- production hours: 83340
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG DMU 70 V
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: Millplus
Dimensions
- Machine Depth: 2020 mm
- Machine Height: 2730 mm
- Machine Weight: 5500 kg
- Table Length: 1000 mm
- Table Load: 350 kg
- Table Width: 600 mm
Movement
- Number of Axes: 5
- X-axis Travel: 710 mm
- Y-axis Travel: 520 mm
- Z-axis Travel: 520 mm
Technical Specification
- Spindle Power: 20 kW
- Spindle Speed: 30000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- 5 axis machine with b-c axes
- Nc rotary table
- B – axis rotation 0-180 °
- C - axis rotaion 0-360 °
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
