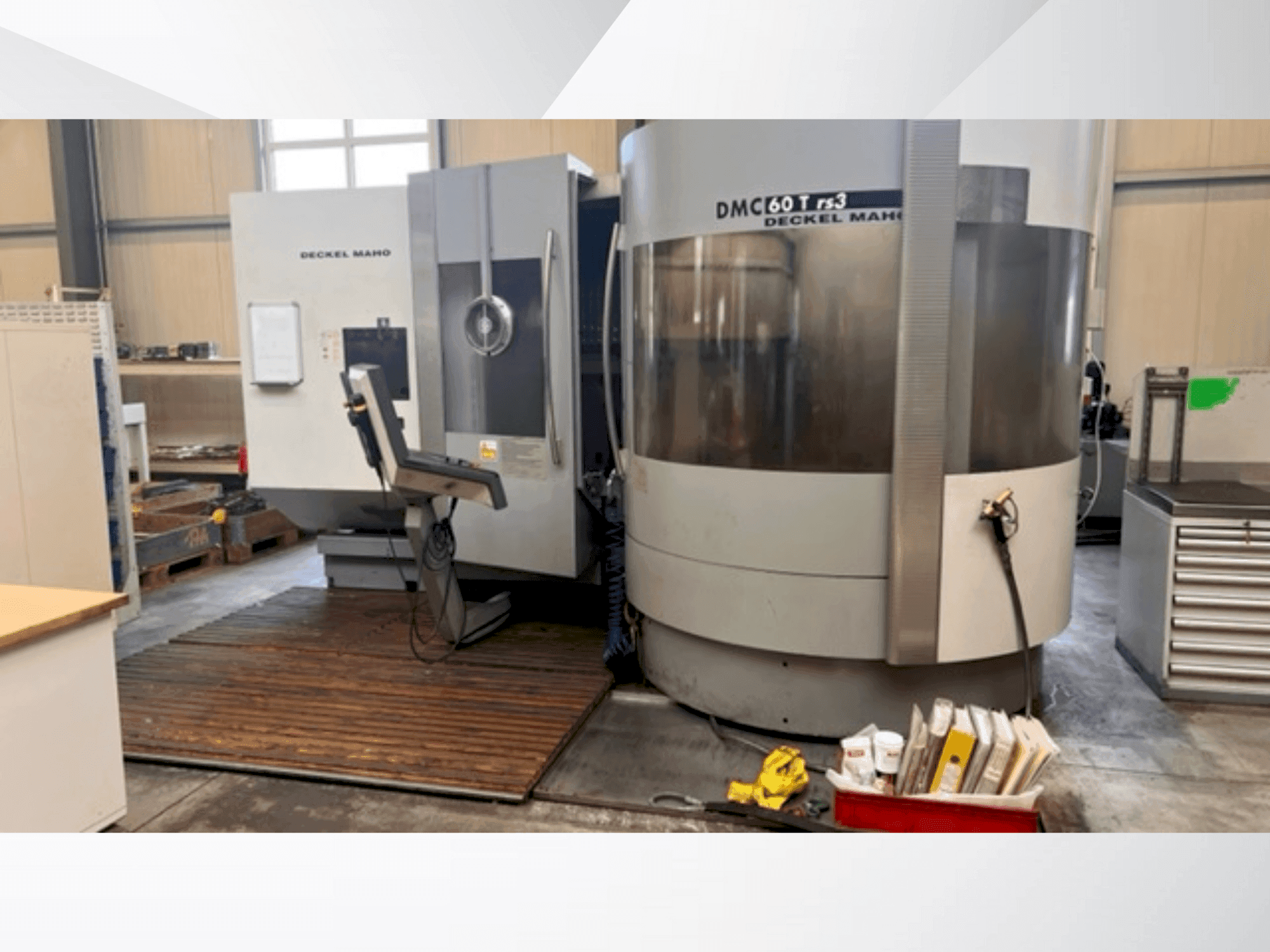

Front view of DMG DMC 60 T rs3  machine

DMG - DMC 60 T rs3DE-MIL-DMG-2004-00001

£ 45,700
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis DMG DMC 60 T rs3 universal machining centre was manufactured in 2004. It features a Heidenhain TNC530 control system, rapid traverse up to 50 m/min, and a spindle speed of 12,000 rpm. The machine accommodates a max tool weight of 8 kg and includes an NC rotary table. Ideal for complex machining tasks, the DMG DMC 60 T rs3 machine we have for sale. Contact us for further details regarding this universal machining centre.

Overview

  • brand: DMG
  • year: 2004
  • MODEL: DMC 60 T rs3
  • production hours: 40646
  • application type: Milling
  • Location: Germany
  • machine type: Universal Machining Centre
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - DMG DMC 60 T rs3

General Data

  • Measurements width: 3300 MM
  • Measurements depth: 3400 MM
  • Measurements height: 2600 MM
  • Machine weight: 9610 KG

Control Unit

  • Model: TNC530
  • Brand: HEIDENHAIN

Main drive

  • Spindle speed range: 12000 1/MIN
  • Tool taper: SK40
  • Number of axis: 5

Movement

  • X-AXIS Movement: 630 MM
  • Y-AXIS Movement: 630 MM
  • Z-AXIS Movement: 750 MM

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - NC rotary table
    • - Measuring system
    • - Belt filter system (900 L)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Feed rate: 20-15,000 mm/min
        • - Rapid traverse: 50 m/min
        • - Set-up mode: 20-2000 mm/min
        • - Resolution xyz: 0. 001 mm
        • - Position tolerance: 0. 010 mm
        • - Max. Tool diameter: with all spaces occupied: 80 mm
        • - With free neighbouring spaces: 180 mm
        • - Max. Tool length from spindle nose: without tool breakage monitoring: 315 mm
        • - Max. Tool weight: 8 kg

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
