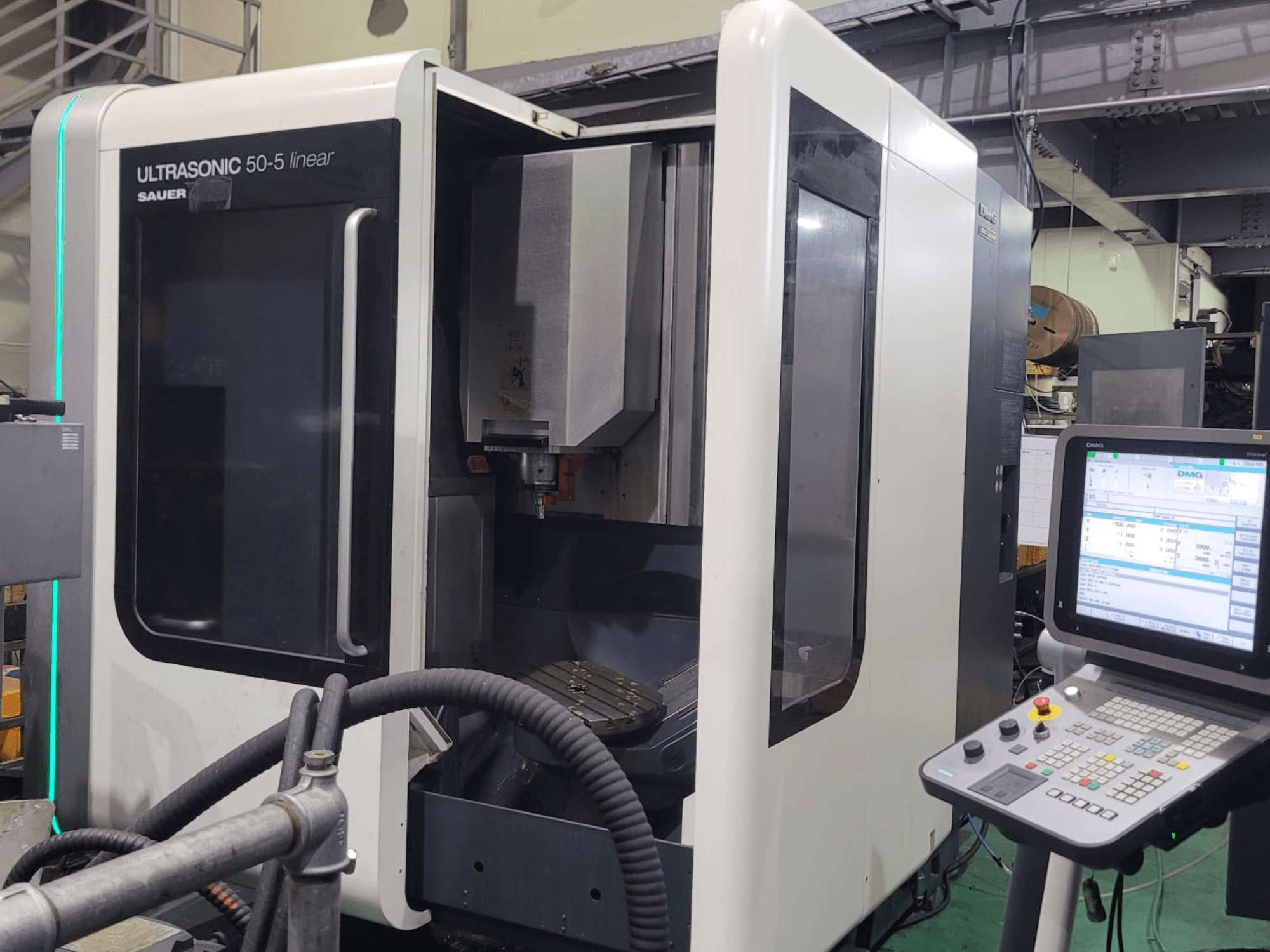

This 5-axis DMG ULTRASONIC 50-5 Linear was manufactured in 2010. It features a traverse range of 500 mm in the X-axis, 450 mm in the Y-axis, and 400 mm in the Z-axis. The machine is equipped with a USB 1818 hybrid spindle, offering speeds from 200 to 18,000 rpm for both ultrasonic hard machining and milling. If you are looking to get high-quality machining capabilities, consider the DMG ULTRASONIC 50-5 Linear universal machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG
- year: 2010
- MODEL: ULTRASONIC 50-5 Linear
- application type: Milling
- Location: South Korea
- machine type: Universal Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG ULTRASONIC 50-5 Linear
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Movement
- Number of Axes: 5
- X-axis Travel: 500 mm
- Y-axis Travel: 450 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Power: 35 kW
- Spindle Speed: 18000 RPM
Additional Information
Spindle: USB 1818 hybrid spindle, 35/25 kW
Tool interface: HSK-A63 / HSK-S63
Capabilities: ULTRASONIC hard machining and milling on one machine
Speed ranges:
ULTRASONIC speed: 200–18,000 1/min
Milling max speed: 18,000 1/min
Control system: 3D-Control, DMG ERGOline control with Siemens 840D solutionline and 19" display
Additional equipment
Oscillating tool: not included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
