DMG CTX 510 eco

Photo Gallery

DMG - CTX 510 ecoPL-TUR-DMG-2009-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

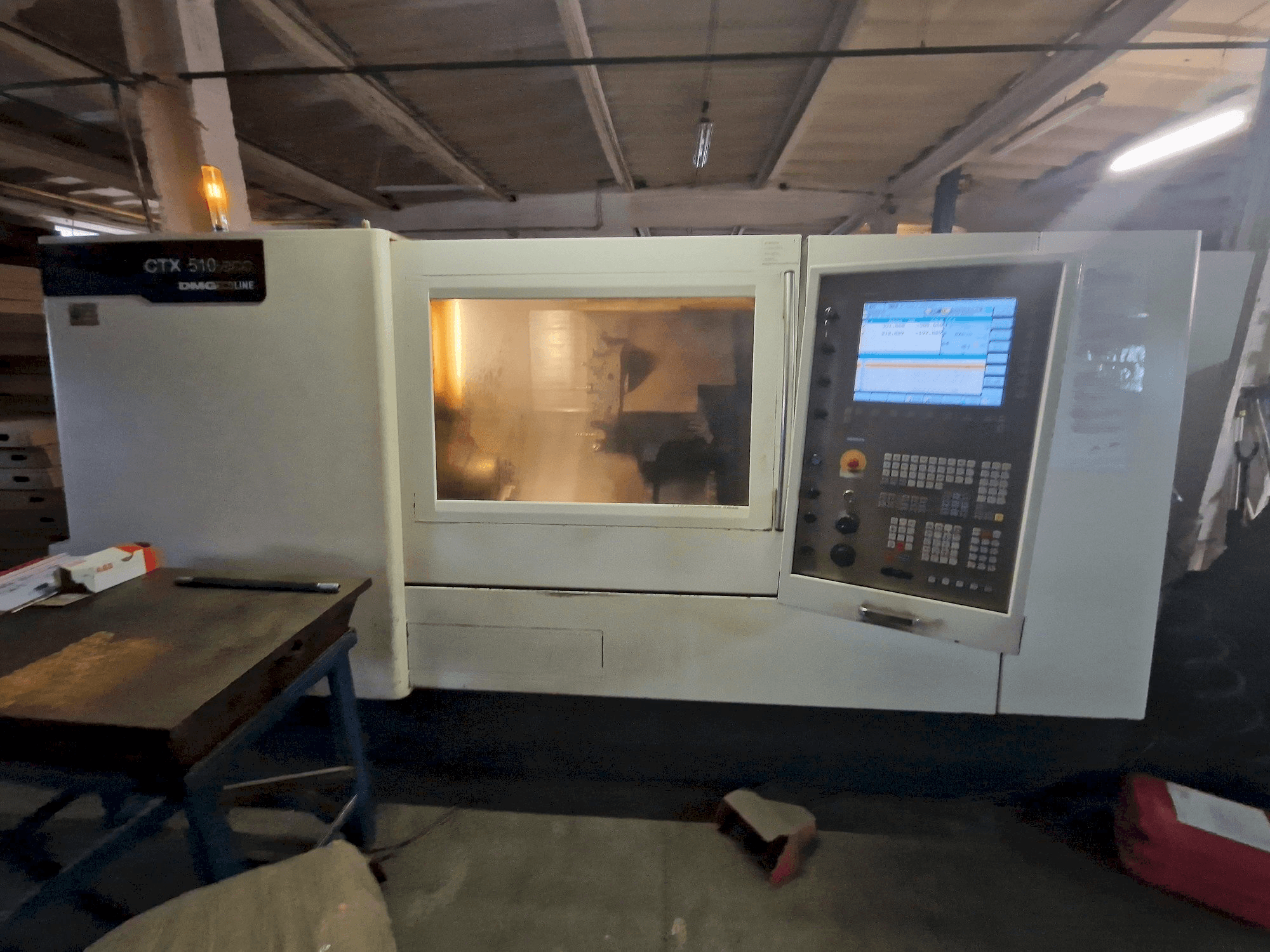

DMG CTX 510 eco lathe

Show in original language

This DMG CTX 510 eco lathe was built in Poland in the year 2009. It is equipped with a DMG panel with Siemens 810D powerline and ShopTurn control unit. The machine has a spindle speed of 3250 rpm.

Overview

brand: DMG
year: 2009
MODEL: CTX 510 eco
application type: Turning
Location: Poland
machine type: Turn-Mill Centre

Technical Information - DMG CTX 510 eco

Technical Specification

Spindle Speed: 3250 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Number of tool stations: 12
Driven tool stations: 6 shaft diameter (according to din 69880): 40 mm
Power output (40% dc) at 4,000 rpm: 8. 4(2) kw
Max. Torque (40% dc): 20(2) nm
Max. Rotational speed: 4,000 rpm
Tailstock
Machine weight with a chip conveyor: 8100 kg

Technical Machine Benefits

Max. Swing diameter: 680 mm
Max. Swing diameter above cross-guideway: 465 mm
Max. Turning diameter: 465 mm
Cross travel (x): 300 mm
Longitudinal travel (z): 1050 mm
Bar capacity: 76 mm
Spindle diameter in the front bearing: 140 mm
Chucks: 250 mm
Power output (40% / 100% dc): 33(2) / 22(2) kw (ac)
Max. Torque (40% / 100% dc): 630(2) / 420(2) nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
