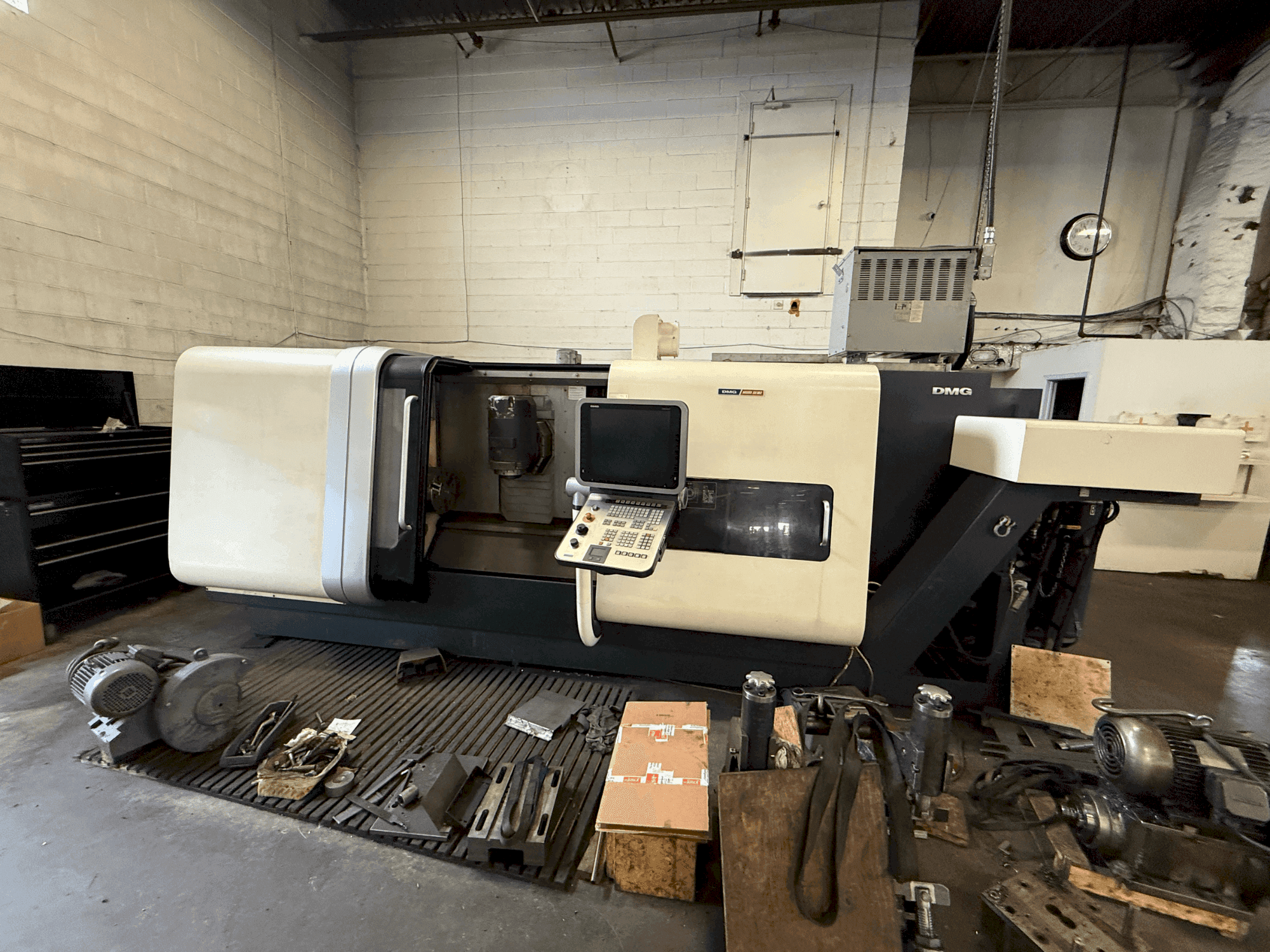

This 5-axis DMG CTX Beta 1250 TC turn-mill centre was manufactured in 2010. It features a swing diameter of 500 mm, max turning diameter of 390 mm, and a turning length of 1250 mm. The spindle supports up to 5000 RPM and 34 kW power, complemented by a 24-position tool magazine. Ideal for complex machining tasks, consider the opportunity to buy this DMG CTX Beta 1250 TC turn-mill centre. Contact us for more information about this machine.
Overview
- brand: DMG
- year: 2010
- MODEL: CTX Beta 1250 TC
- production hours: 5613
- application type: Turning
- Location: Canada
- machine type: Turn-Mill Centre
- control unit brand: SIEMENS
Technical Information - DMG CTX Beta 1250 TC
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840D solution line with ERGOline control and ShopTurn, operating system Windows
Dimensions
- Machine Depth: 5700 mm
- Machine Height: 2100 mm
- Machine Weight: 7950 kg
Movement
- Number of Axes: 5
Technical Specification
- Max. Tool Weight: 7 kg
- Spindle Speed: 5000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Draw bar diameter (internal): 68 mm
- Spindle diameter (front bearing): 130 mm
- Max. Torque (100/40%): 280 / 380 nm
- C-axis speed: 200 rpm
- C-axis torque: 280 nm
- Min. Angular resolution: 0. 001°
- Tool magazine capacity: 24 positions
Extra Information
Linear Axes Upper Slide Travel X1: 450 mm (−10 mm) Upper Slide Travel Y1: ±100 mm Upper Slide Travel Z1: 1300 mm Turning-Milling Spindle (CAPTO C6) Max. Speed: 12000 RPM Power (100/40%): 13 / 22 kW Max. Torque (100/40%): 60 / 100 Nm Min. Angular Resolution: 0.001° Locking Moment: 1000 Nm B-Axis Positioning Angle: ±110° Rotational Speed: 36000°/min Torque (B-Axis): 344 / 614 Nm Min. Angular Resolution: 0.001° Locking Moment (Pneumatic): 2800 Nm Tailstock Traverse: 1200 mm Electrical Requirements Power Supply: 400 VAC, 60 Hz, 3 Ph Connected Load: 72 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
