Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
DMG - CMX 600 VGB-MIL-DMG-2018-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DMG CMX 600 V vertical machine center

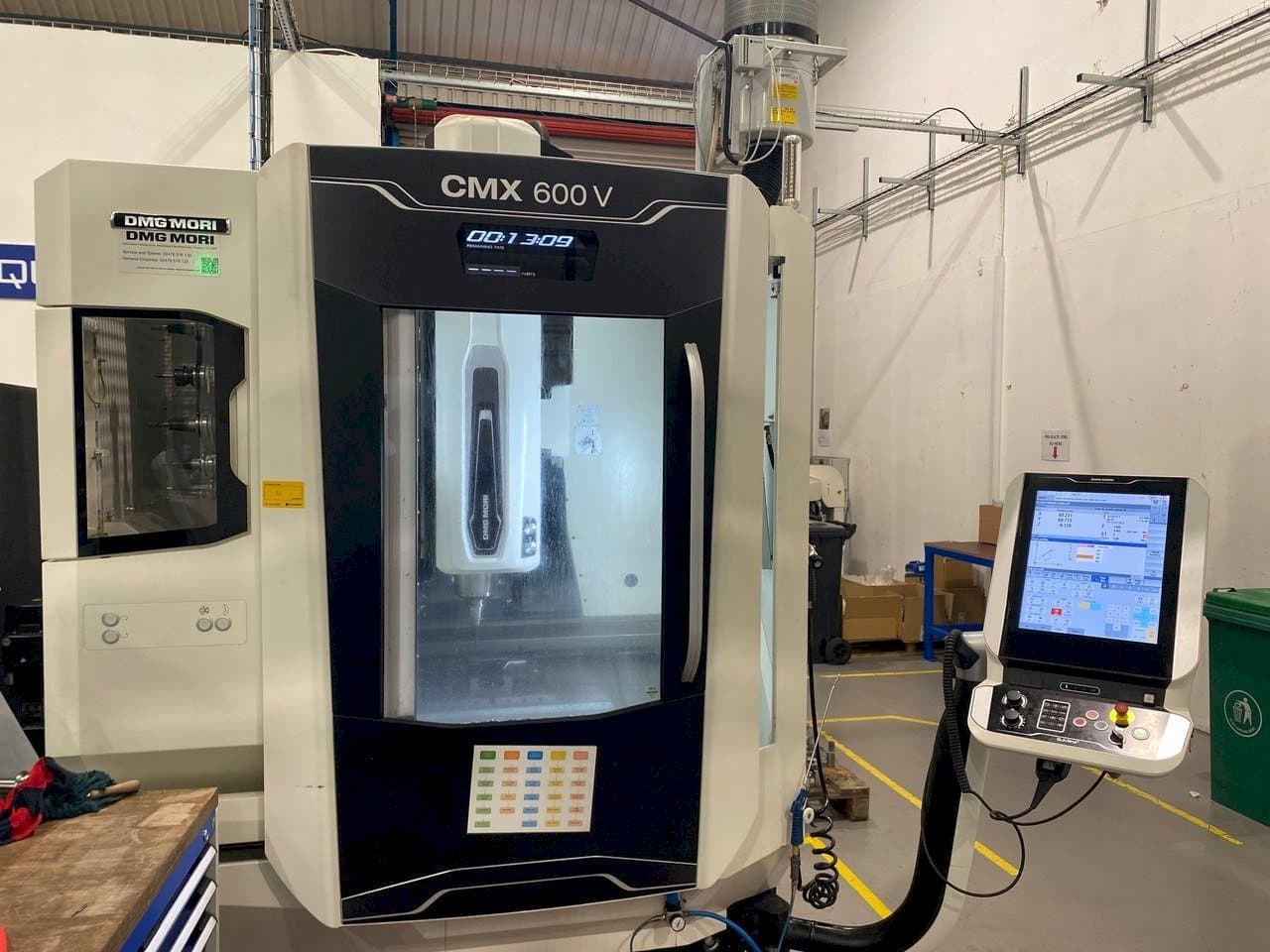

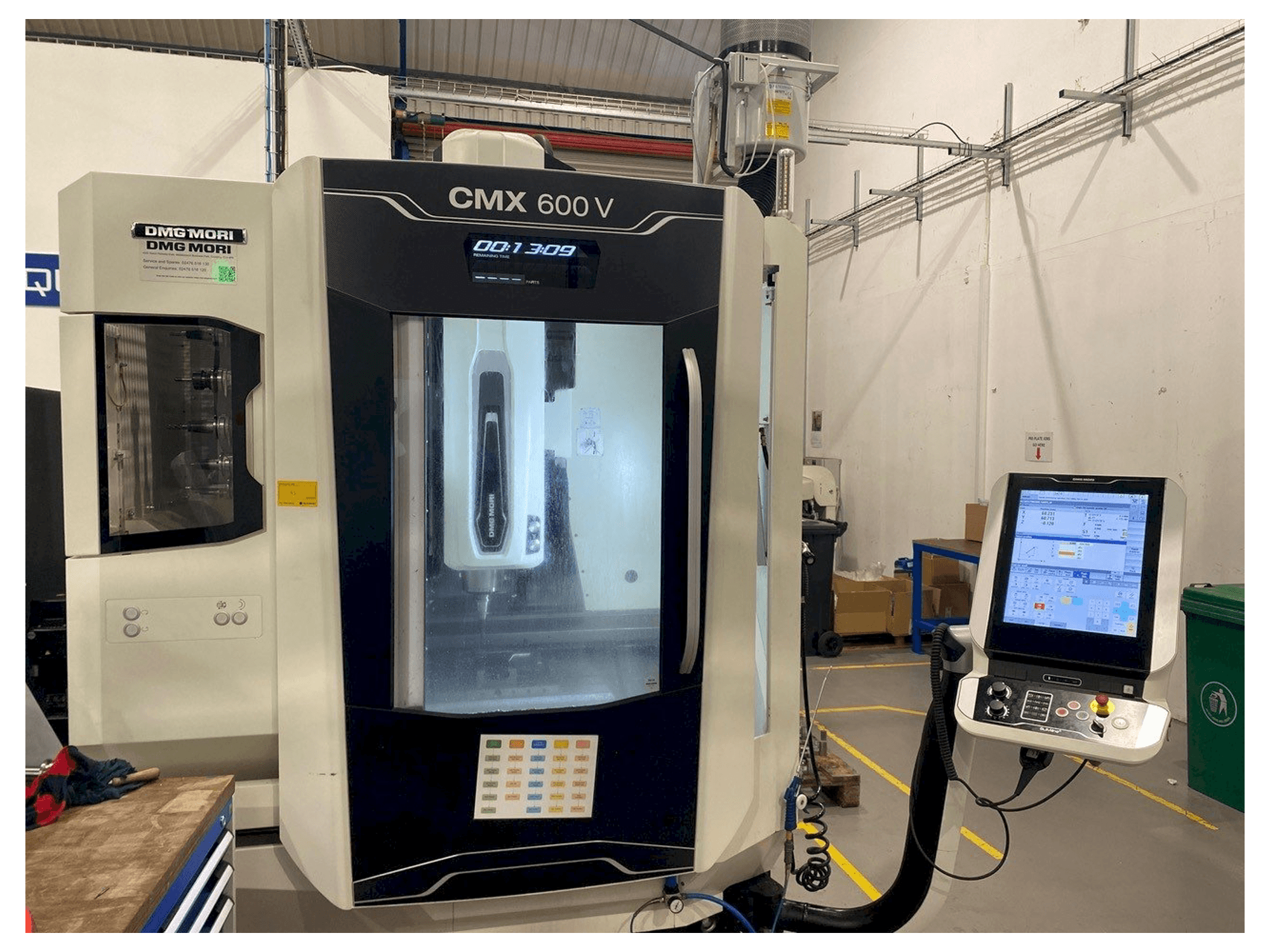

This DMG CMX 600 V vertical machine center was built in the year 2018 in Poland and has 14603 hours, of which 4740 are spindle hours. It is equipped with a Siemens 840D SL Slimline Multi-Touch Operate 4.7 control unit and has 3 axis. The machine has a spindle speed of 12000 rpm and is in very good condition.
Overview
- brand: DMG
- year: 2018
- MODEL: CMX 600 V
- production hours: 14603
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG CMX 600 V
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D SL Slimline Multi Touch Operate 4.7
Dimensions
- Machine Depth: 2757 mm
- Machine Height: 2935 mm
- Machine Weight: 5000 kg
- Table Length: 900 mm
- Table Width: 560 mm
Movement
- Number of Axes: 3
- X-axis Travel: 600 mm
- Y-axis Travel: 560 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Number of Tools: 30
- Spindle Power: 13 kW
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition
Technical Machine Benefits
- Min-max height under spindle 120 - 630 mm
- Rapid feed rates 30m/minute
- Tool setter
- Swarf conveyor
- Tool change time (chip to chip) 6. 7 seconds
- 3-axis controlled
Extra Information
oil mist filter and the clamping unit which was on the table it's not included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
