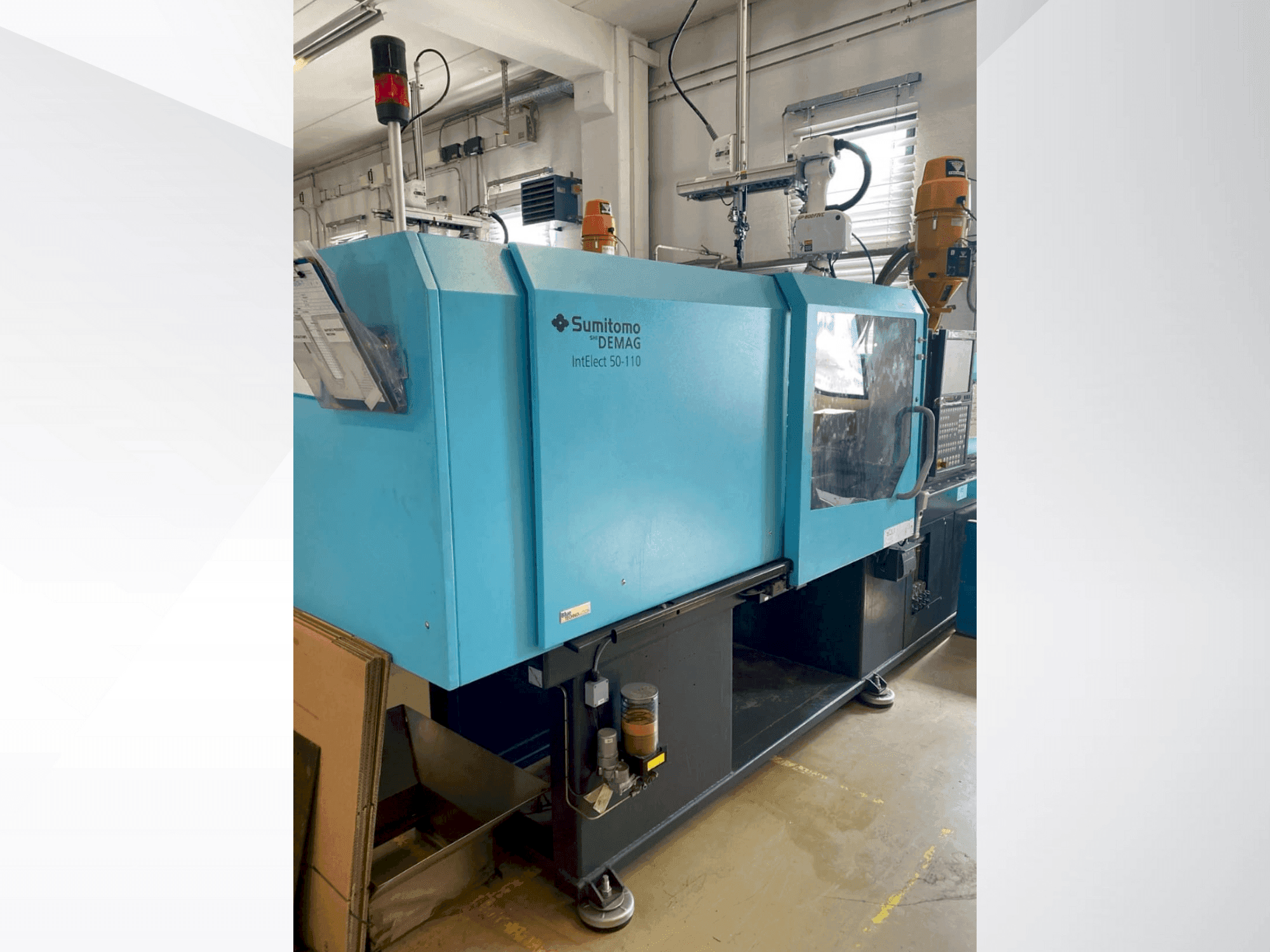

This DEMAG IntElect 50/370-110 was manufactured in 2017. A robust hydraulic injection moulding machine, it features a clamping force of 500 kN and a screw diameter of 25 mm. It supports a maximum shot volume of 52 cm³ and a shot weight of 46 g. Dimensions are 4308 mm in length, 1264 mm in width, and 1779 mm in height. Consider the DEMAG IntElect 50/370-110 machine we have for sale. Contact us for further details regarding this hydraulic injection moulding machine.
Overview
- brand: DEMAG
- year: 2017
- MODEL: IntElect 50/370-110
- application type: Injection Moulding
- Location: Switzerland
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - DEMAG IntElect 50/370-110
General Data
- Measurements width: 1264 mm
- Measurements depth: 4308 mm
- Measurements height: 1779 mm
- Machine weight: 4200 kg
Injection Unit
- Screw diameter: 25 mm
- Shot weight: 46 g
- Stroke volume: 52 cm³
- Injection pressure: 2180 bar
- Heating capacity: 5.7 kW
- Nozzle pressure: 30 kN
Clamping unit
- Clamping force: 500 kN
- Opening stroke: 300 mm
- Max open daylight: 710 mm
- Distance between bars: 370 x 370 mm
- Mould height min: 200 mm
- Mould height max: 410 mm
- Size of mold platens: 520 x 570 mm
- Ejector stroke: 90 mm
- Ejector force for / back: 25 kN
Additional Information
- Technical Machine Benefits:
- - Operating hours: 26683 h
- - Clamping unit: Holding force: 550 kN Maximum mold weight: 780 kg Maximum mold weight on moving platen: 500 kg Maximum retraction force: 25 kN Dry cycle stroke: 1.1 – 259 s/mm Core pull: 0 units Injection unit: Screw L/D ratio: 20 Maximum nozzle stroke: 350 mm Nozzle immersion depth (SVO): 20 mm Material hopper capacity: 35 liters
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
