➤ Used DEMAG Ergotech Sytem 200-610 | Injection Moulding

Show in original language

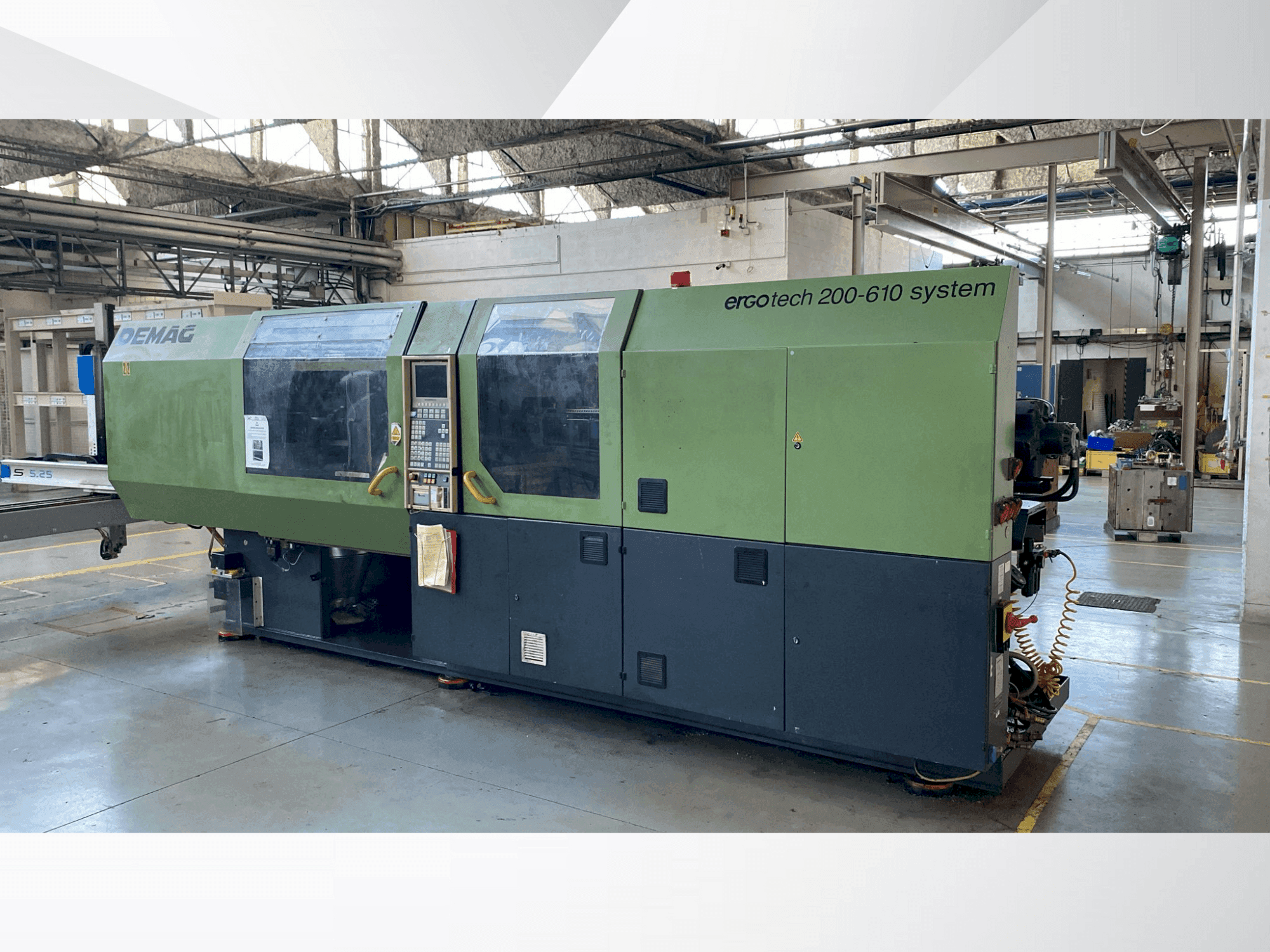

This DEMAG Ergotech System 200-610 hydraulic injection moulding machine was manufactured in 1997. It's a robust option for efficient plastic processing tasks. Contact us for more information.

Overview

brand: DEMAG
year: 1997
MODEL: Ergotech Sytem 200-610
application type: Injection Moulding
Location: France
machine type: Hydraulic Injection Moulding Machine

Technical Information - DEMAG Ergotech Sytem 200-610

Technical Specification

Screw Diameter: 40 mm

Additional Information

Additional equipment

SEPRO ROBOT INCLUDED

Machine Benefits

Qualitative Machine Benefits

Maximum mold weight: 2500 kg
Mold weight on moving platen: 1700 kg
Oil reservoir volume: 650 liters
Pump power: 30 kw
Heater power: 13 kw
Heater power: 13 kw

Technical Machine Benefits

Mold size: 230 - 500 mm
Ejection rod length: 230 mm
Fixed centering plate diameter: 160 mm
Movable centering plate diameter: 160 mm
Platen tapping diameter: m20
Number of cores: 1
Press type: nc4
Horizontal tie bar spacing: 560 mm
Vertical tie bar spacing: 560 mm
Maximum platen opening: 1235 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
