Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.

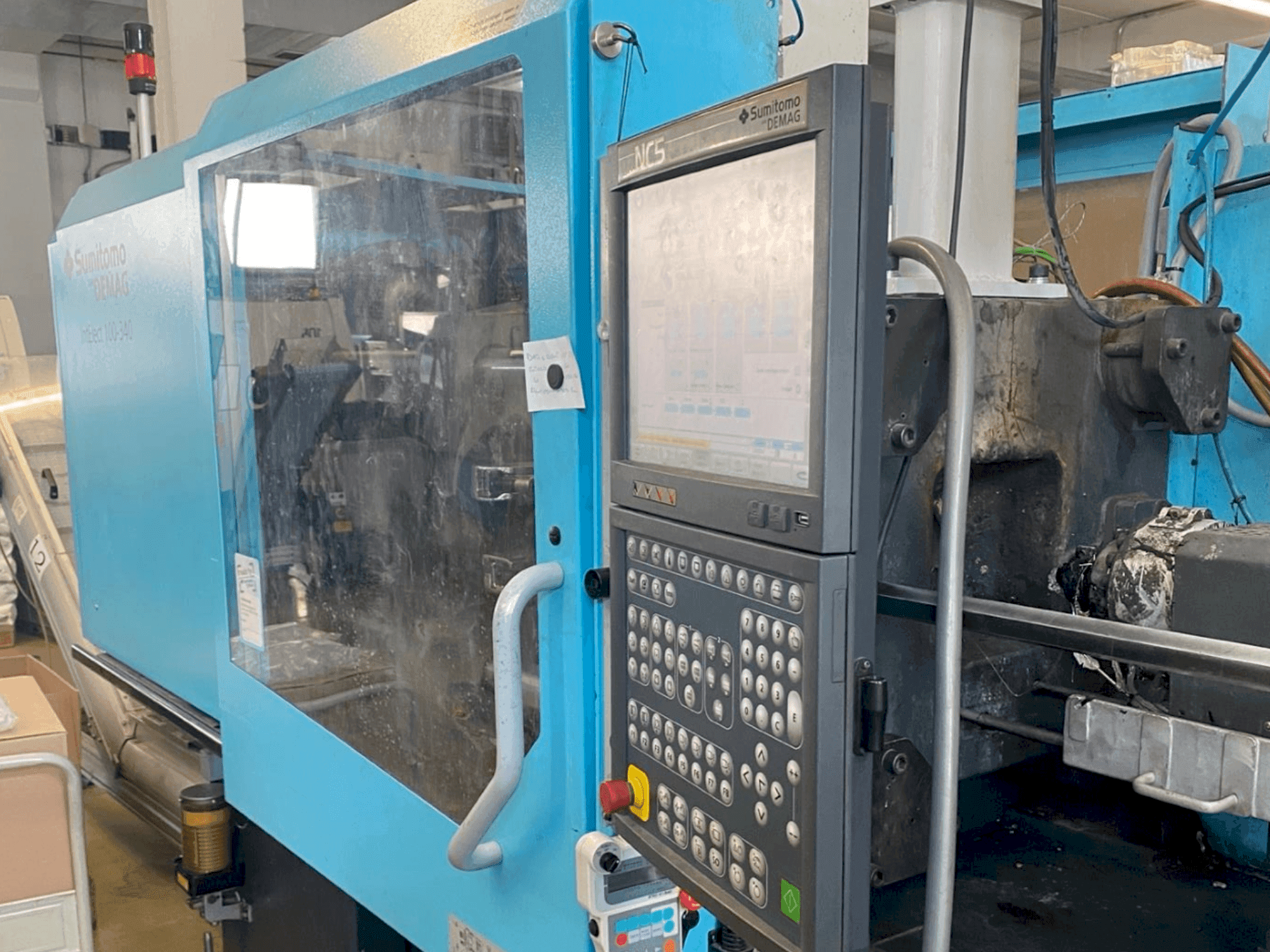

DEMAG - IntElect 100/470-340 SmartCH-INJ-DEM-2013-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used DEMAG IntElect 100/470-340 Smart For Sale
This DEMAG IntElect 100/470-340 Smart was manufactured in 2013. A robust hydraulic injection moulding machine featuring a clamping force of 1000 kN and a screw diameter of 30 mm. It supports a maximum shot volume of 114 cm³ and a shot weight of 102 g. Dimensions are 4633 mm in length, 1304 mm in width, and 1932 mm in height. Ideal for precise moulding operations. For more information about this hydraulic injection moulding machine, please reach out to us.
Overview
- brand: DEMAG
- year: 2013
- MODEL: IntElect 100/470-340 Smart
- application type: Injection Moulding
- Location: Switzerland
- machine type: Hydraulic Injection Moulding Machine
Technical Information - DEMAG IntElect 100/470-340 Smart
Dimensions
- Machine Depth: 1304 mm
- Machine Height: 1932 mm
- Machine Weight: 5400 kg
Technical Specification
- Clamping Force: 1000 kN
- Max. Shot Weight: 102 g
- Screw Diameter: 30 mm
Additional Information
Machine Benefits
Technical Machine Benefits
- Holding force: 1100 kn
- Maximum mold weight: 780 kg
- Maximum mold weight on moving platen: 500 kg
- Maximum retraction force: 35 kn
- Dry cycle stroke: 1. 2 – 329 s/mm
- Core pull: 0 units
- Screw l/d ratio: 20
- Maximum nozzle stroke: 350 mm
- Nozzle immersion depth (svo): 20 mm
- Material hopper capacity: 35 liters
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
