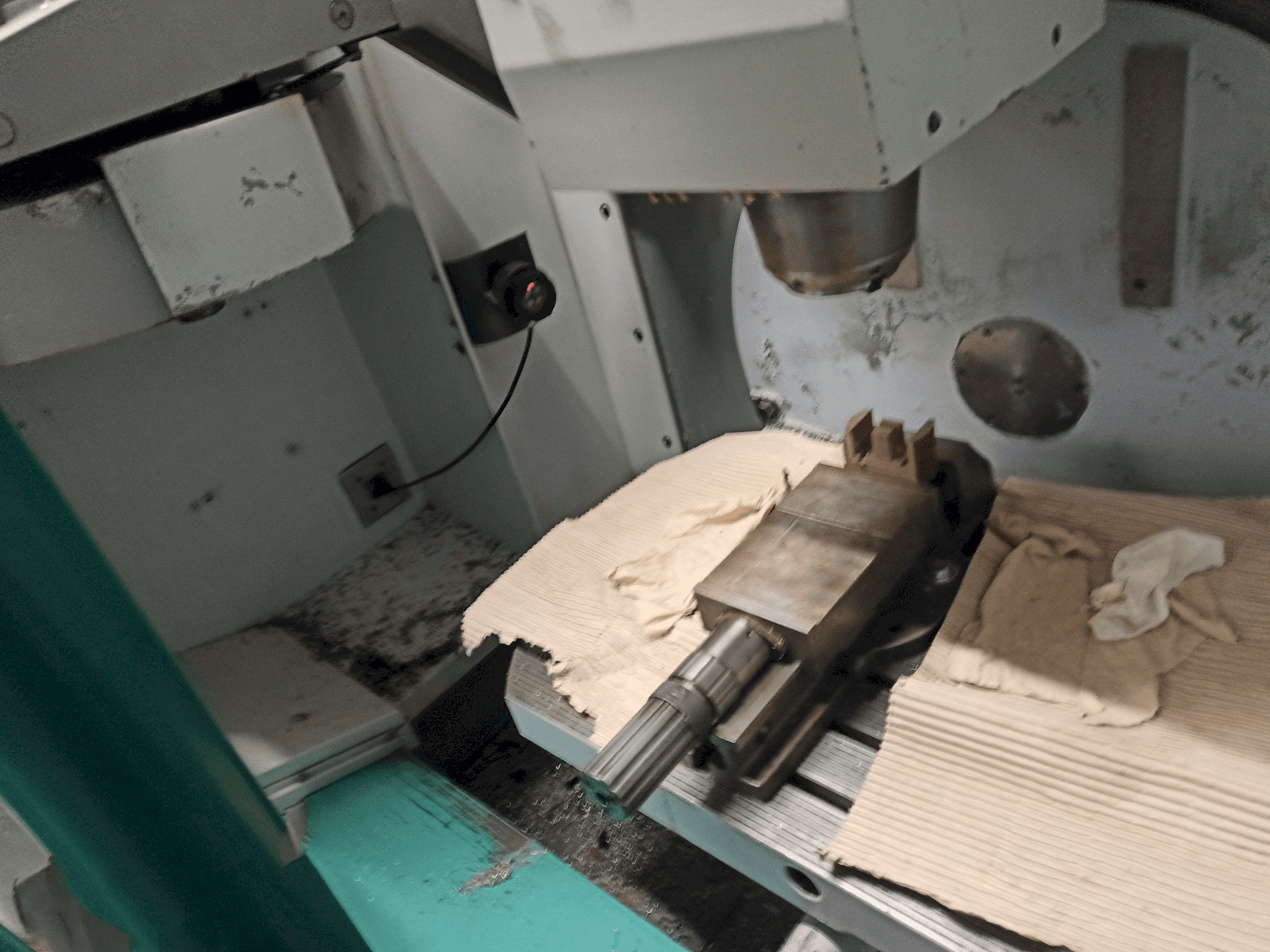

Working room of DECKEL MAHO DMU 50 T machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMU 50 T

Photo Gallery

DECKEL MAHO - DMU 50 TDE-MIL-DEC-1999-00008

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ DMU 50 T Vertical Machining Center by DECKEL MAHO

Show in original language

This Deckel Maho DMU 50 T Vertical Machining center was manufactured in the year 1999. It is equipped with a HEIDENHAIN iTNC 430 control unit and has 3+2 axis. The machine has a spindle speed of 9000 rpm.

Overview

brand: DECKEL MAHO
year: 1999
MODEL: DMU 50 T
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 50 T

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 426

Dimensions

Machine Depth: 4000 mm
Machine Height: 2500 mm
Machine Weight: 3200 kg
Table Load: 200 kg

Movement

Number of Axes: 3
X-axis Travel: 500 mm
Y-axis Travel: 400 mm
Z-axis Travel: 400 mm

Technical Specification

Spindle Power: 9 kW
Spindle Speed: 9000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Max. Tool length 290 mm
Max. Tool weight 6. 0 kg
Max. Total weight 50 kg
Total weight 50 kg
Feed rates: feed speed max. 10,000 mm/min
Rapid traverse 12 m/min
Feed unit 0. 01 mm
Total power requirement 17 kw
Documentation b-axis c-axis nc swivelling rotary table manual / manual tool changer 16 pos. Electr. Handwheel coolant device

Technical Machine Benefits

Max. Torque 57 / 82 nm
Swivelling rotary table: table diameter 700 x 500 mm swivelling man.
Torque 57 / 82 nm tool holder ( sk 40 ) swivelling rotary table: table diameter 700 x 500 mm swivelling man
B: 105° (-10°/+95) °
Rotatable man. 360 ° max.
No. Of t-slots 7
T-slots: distance 63 mm
T-slots - width 14h7 mm
Centre bore 30h6 mm
Tool changer: no. Of tool positions 16 pos.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
