DECKEL MAHO DMC 80 U
DECKEL MAHO - DMC 80 U
1998
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Deckel Maho DMC 80 U universal machining center
Show in original language

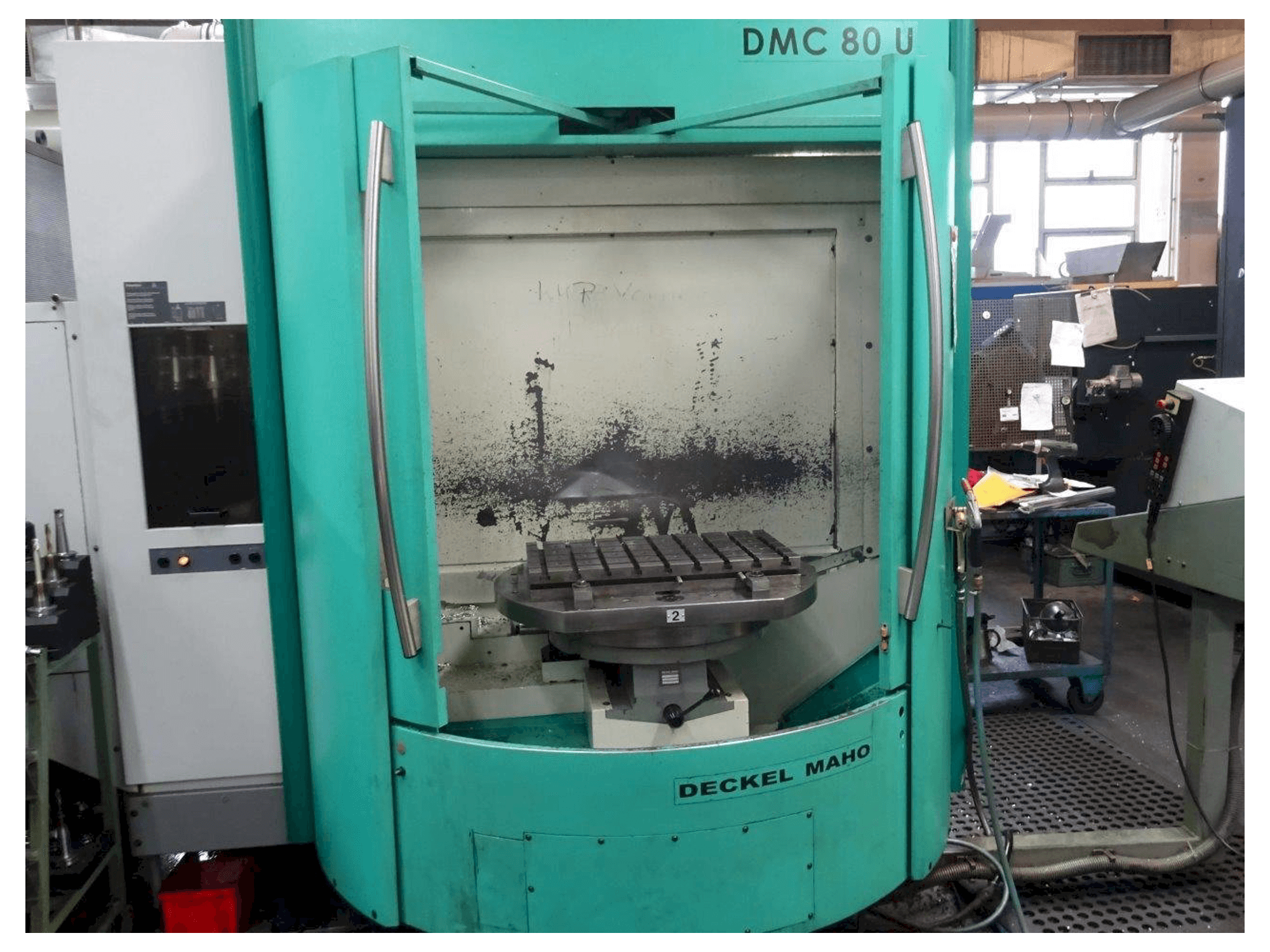

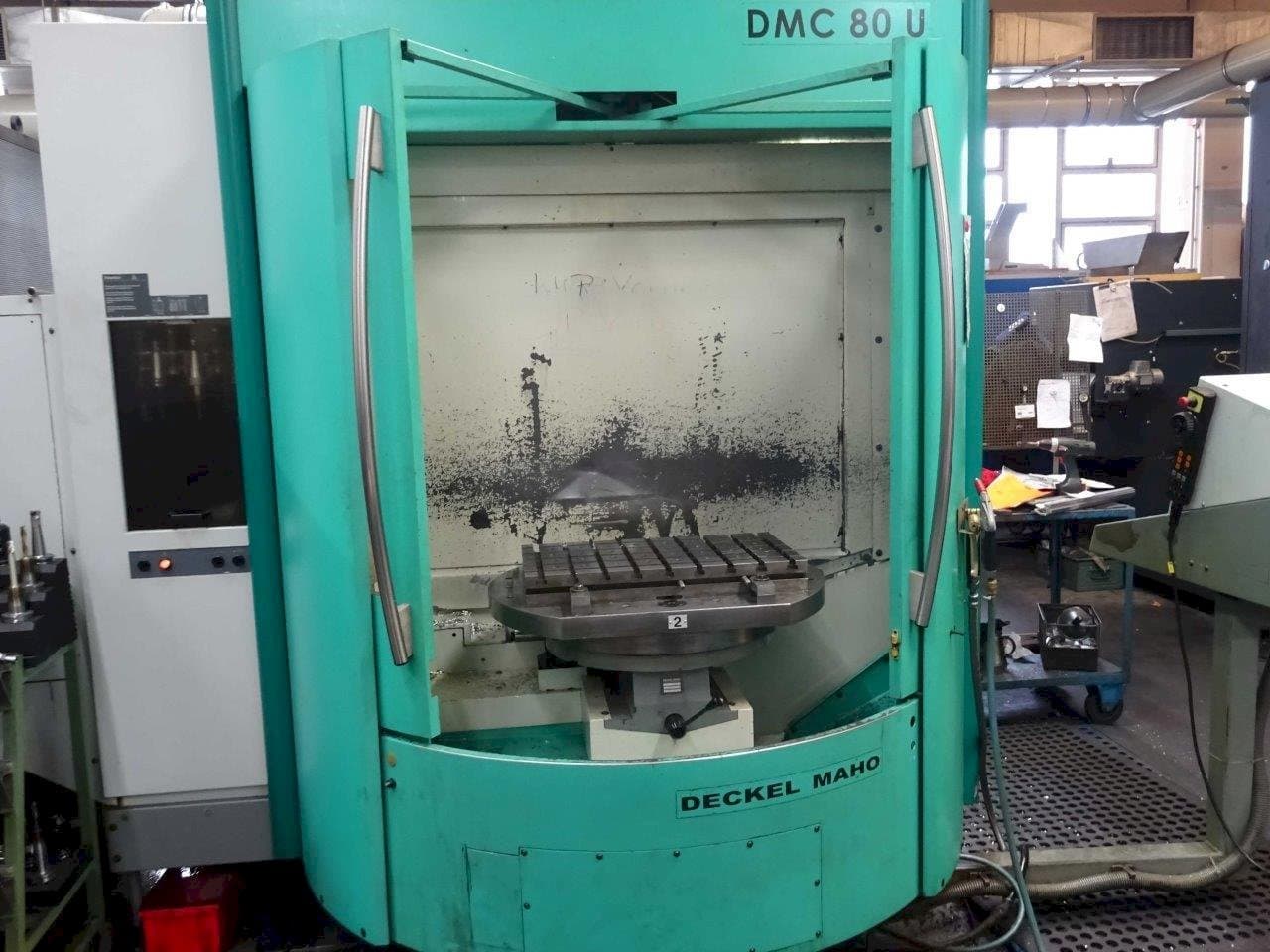

This Deckel Maho DMC 80 U universal machining center was manufactured in 1998. The 3 axis machine has a total of 65421 operating hours, of which 27735 are spindle hours. This machine is operated through a Phillips-Grunding MillPlus CNG-3D-Path control unit. It has a spindle speed up to 12000 rpm. A new spindle was installed in 2016.
Overview
- brand: DECKEL MAHO
- year: 1998
- MODEL: DMC 80 U
- production hours: 65421
- application type: Milling
- Location: Germany
- machine type: Machining centers (universal)
- availability: Sold
- control unit brand: Mill Plus
- GINDUMAC ID: DE-MIL-DEC-1998-00001
Technical Information
General Data
- Machine weight: 10,400 kg
Control Unit
- Brand: Mill Plus
- Model: CNG-3D-Path control
Main drive
- Spindle speed range: 12000 1/MIN
Movement
- X-AXIS Movement: 800 mm
- Y-AXIS Movement: 700 mm
- Z-AXIS Movement: 600 mm
Table
- Table load: 800 kg
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Tool holder (din 69871): sk 40
- - Clamping surface: 800 x 630 mm
- - Chip- to chip time: 7. 5 sec.
- - Center hole: 50 h6 mm
- - Clamping grid: 100 x 100 mm
- - Swivel range: 360 x 0. 001 mm
- - Turning speed max. : 13. 6 rpm
- - Pallet changing tent: 13 sec
- - Feed range: 10000 mm/min
- - Rapid traverse: 30 m/min
- Qualitative Machine Benefits:
- - Installation dimensions l x w x h: 74 x 6. 7 x 2. 8 m
- - Spindle torque 40% ed: 130 nm
- - Drive performance (100/40% es): 10/15 kw
- - Automatic tool charger: atc 60
- - Automatic pallet charger-2 fold
- - Coolant device
- - Internal coal supply through the spindles 40 bar
- - Emulsion mist separation system
- - Heidenhain ts- 631 infrared probe
- - Electronic hand control panel
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Your account manager:
Borja Garcia
Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
Payment Terms
Payment in advance
Asset Financing
