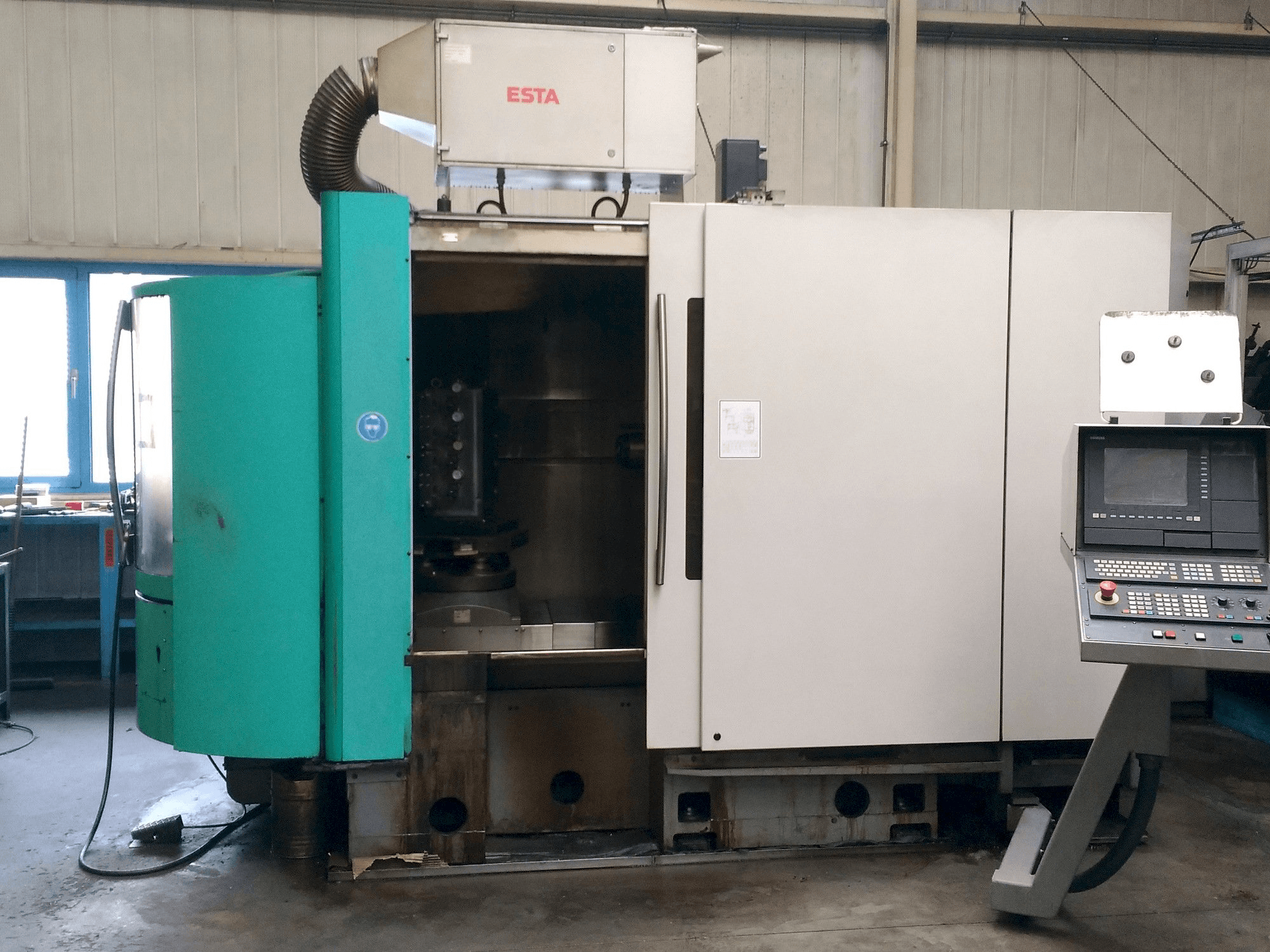

Front view of DECKEL MAHO DMC 60H machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMC 60H

Photo Gallery

DECKEL MAHO - DMC 60HDE-MIL-DEC-1999-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DECKEL MAHO DMC 60H

Show in original language

This DECKEL MAHO DMC 60H Universal Machining Center was built in Germany in the year 1999. It has a total production time of 48364 hours. This 4 axis machine is operated through a SIEMENS SINUMERIK 840D Control Unit. It can work with a spindle speed range 0 - 15000 rpm. This machine includes an oil mist separator and a scraper belt conveyor 350 K-1/100 (Knoll)

Overview

brand: DECKEL MAHO
year: 1999
MODEL: DMC 60H
production hours: 48364
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: SIEMENS

Technical Information - DECKEL MAHO DMC 60H

General Data

Measurements width: 4800 mm
Measurements depth: 5000 mm
Measurements height: 2800 mm
Machine weight: 11400 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 0 - 15000 1/MIN
Spindle motor power: 13 / 20 KW
Number of axis: 4

Movement

X-AXIS Movement: 600 MM
X-AXIS Rapid traverse: 1 - 40000 MM/MIN
Y-AXIS Movement: 560 MM
Y-AXIS Rapid traverse: 1 - 40000 MM/MIN
Z-AXIS Movement: 560 MM
Z-AXIS Rapid traverse: 1 - 40000 MM/MIN

Tools

Max weight: 10 (200) KG
Max tool diameter: 90 (MAX. 160) MM
Max tool length: 350 MM
Type of tool holder: SK 40

Media

Main electronic connection: 400 V 50 HZ
Power consumption: 60 KVA

Additional Information

Additional equipment

OIL MIST SEPARATOR
SCRAPER BELT CONVEYOR 350 K-1/100 (KNOLL)
COOLANT SYSTEM (KNOLL)

Machine Benefits

Technical Machine Benefits

Torque (s1/s6): 124/191 nm
Round table max. Speed 25. 7 rpm
Pallet clamping force: 80000 n
2 + 1 pallets
Pallets size: 400 x 500 mm
Permissible load per pallet: 600 kg
B-axis travel: 360º
Tool pull-in force: 12000 n

Extra Information

THE MACHINE WAS STILL WORKING PERFECTLY UNTIL IT WAS SHUT DOWN A YEAR AGO.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
