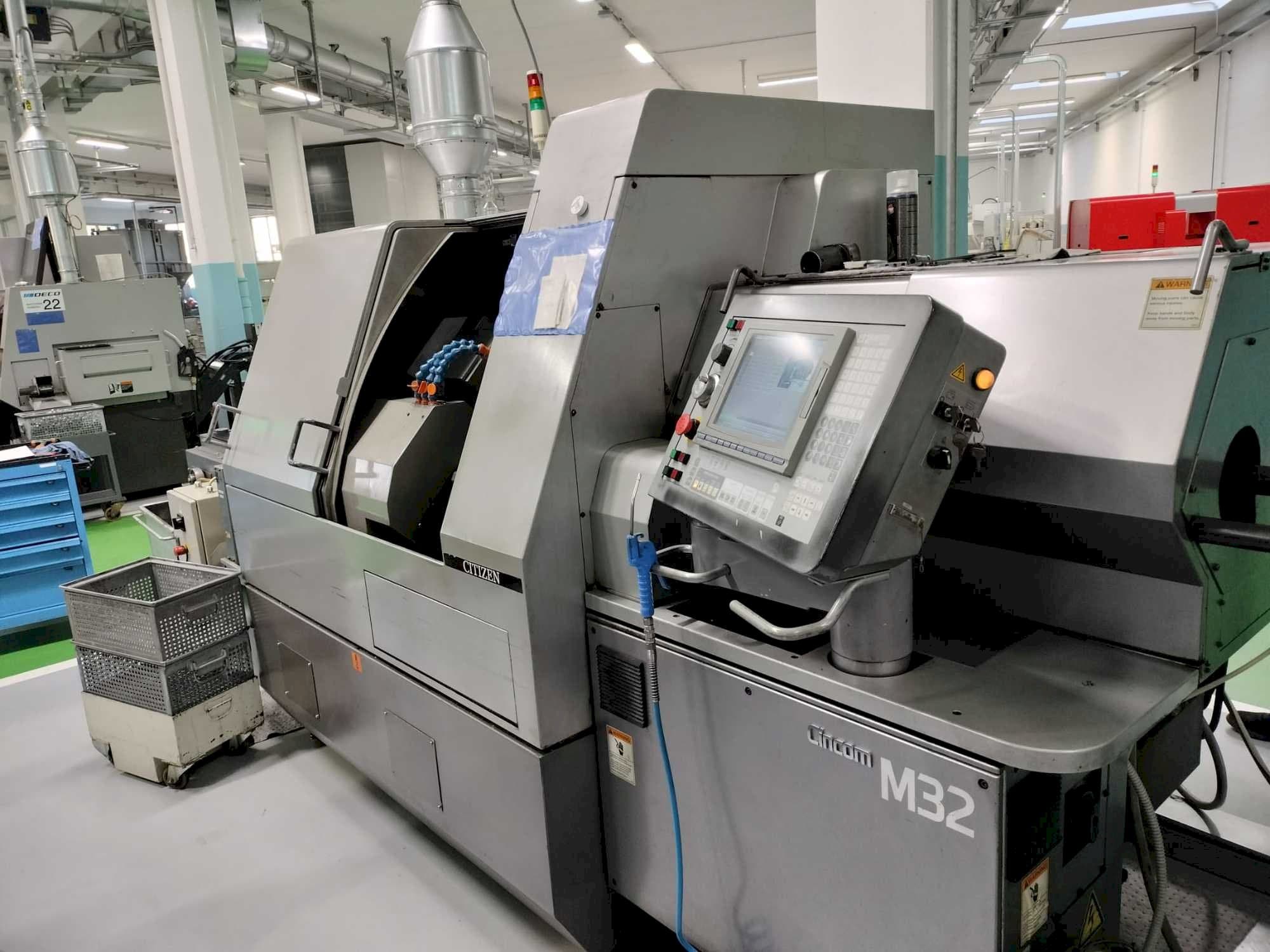

Front view of Citizen CINCOM M32V machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Citizen CINCOM M32V

Photo Gallery

Citizen - CINCOM M32VIT-TUR-CIT-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Citizen CINCOM M32V lathe

Show in original language

This Citizen CINCOM M32V lathe was built in the year 2008. It is equipped with a Mitsubishi control unit. The machine has a spindle speed of 8000 rpm, max. machining diameter (D) of 32 mm, max. machining length (L) of 320 mm, max. front drilling diameter of 12 mm.

Overview

brand: Citizen
year: 2008
MODEL: CINCOM M32V
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
control unit brand: MITSUBISHI

Technical Information - Citizen CINCOM M32V

General Data

Machine weight: 3550 kg

Control Unit

Brand: MITSUBISHI

Main drive

Spindle speed range: 8000 1/MIN

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Machining diameter (d) 32mm
- - Max. Machining length (l) 320mm
- - Max. Front drilling diameter 12mm
- - Max. Front tapping diameter (tap, die) m10
- - Spindle through-hole diameter 36mm
- - Max. Drilling diameter for the gang rotary tool 8mm
- - Max. Tapping diameter for the gang rotary tool m6
- - Spindle speed of the gang rotary tool 6000 rpm
- - Max. Drilling diameter for the turret rotary tool 10mm
- - Max. Tapping diameter for the turret rotary tool m8, high pressure 50 bar
Qualitative Machine Benefits:
- - Spindle speed of the turret rotary tool 6000 rpm
- - Max. Drilling diameter for the back spindle 10mm
- - Max. Tapping diameter for the back spindle m10
- - Back spindle speed 8000 rpm
- - Max. Chuck diameter of the back spindle 32mm
- - Max. Protrusion length of the back spindle workpiece 65mm
- - Max. Protrusion length 145mm
- - Number of tools to be mounted 25
- - Gang tool post 5, gang rotary tool 5, gang b axis rotary tool 0
- - Number of turret station 10, back tool post 5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
