Brother TC-S2DN-O

Photo Gallery

Brother - TC-S2DN-OES-MIL-BRO-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

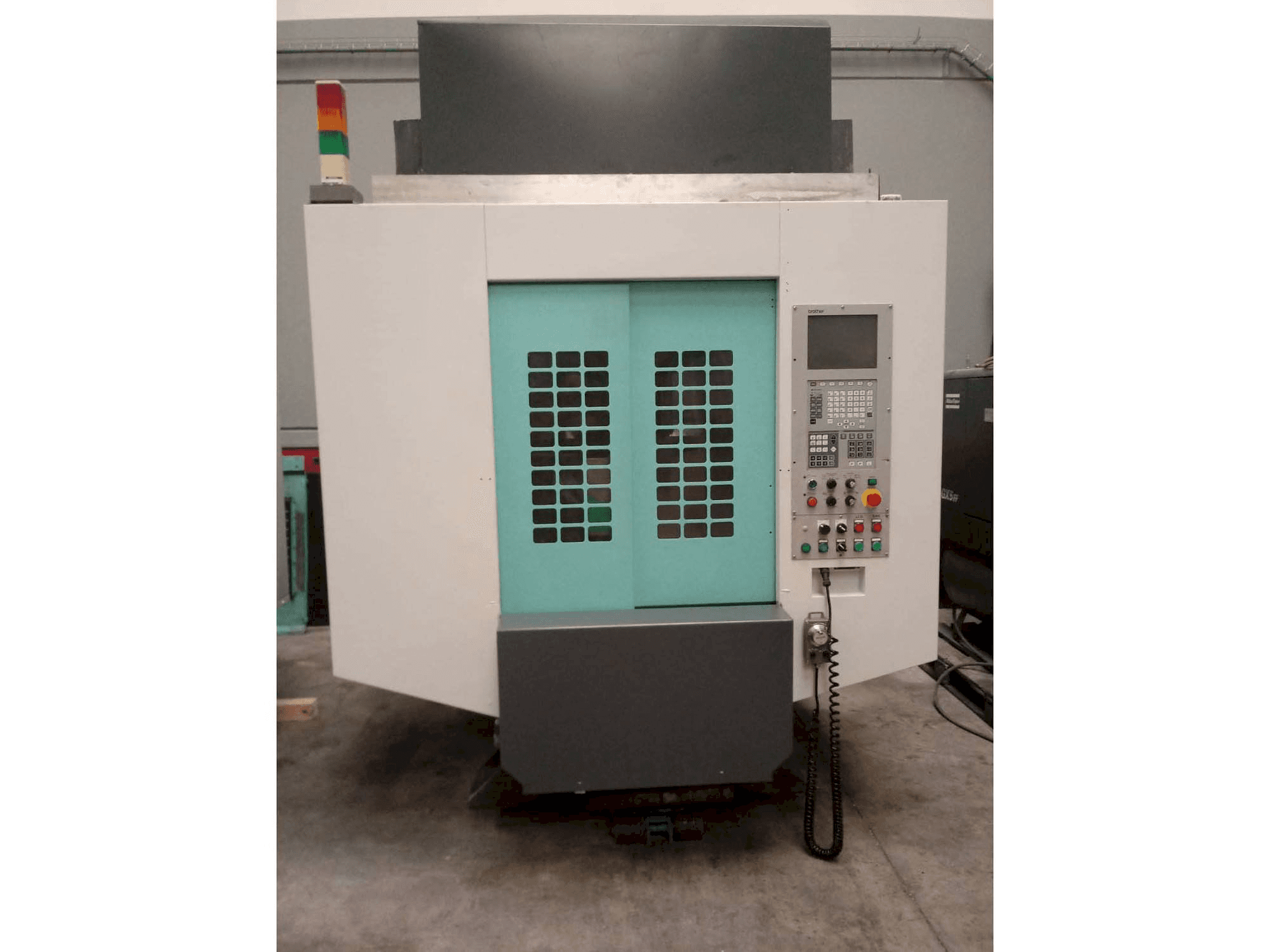

Brother TC-S2DN-O Vertical Machining center

Show in original language

This Brother TC-S2DN-O Vertical Machining center was manufactured in the year 2005. It is equipped with a BROTHER A00 control unit and has 4 axis. The machine has spindle speed of 16000 rpm.

Overview

brand: Brother
year: 2005
MODEL: TC-S2DN-O
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: BROTHER

Technical Information - Brother TC-S2DN-O

General Data

Machine weight: 2000 Kg

Control Unit

Model: A00
Brand: BROTHER

Main drive

Spindle speed range: 16000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 700 mm
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 320 mm
Z-AXIS Rapid traverse: 50 m/min

Table

Outer length: 800 mm
Outer width: 320 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Probe renishaw ts27r
Auto/manual door
Robot interface: yes

Technical Machine Benefits

Max tools length : 200 m/m
Maximum table load kg: 400kg
Distance from head to table: 360 mm
Maximum tool weight: 2. 7 kg
Number of tools: 21
Tool change time: 1. 1 sec
Time between chips: 1. 8 sec
Head type bt 30
Air cooling/external drill
4th axis + rotary joint ddr

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
