➤ Used Brother Speedio M 300 X3 For Sale | gindumac.com

Show in original language

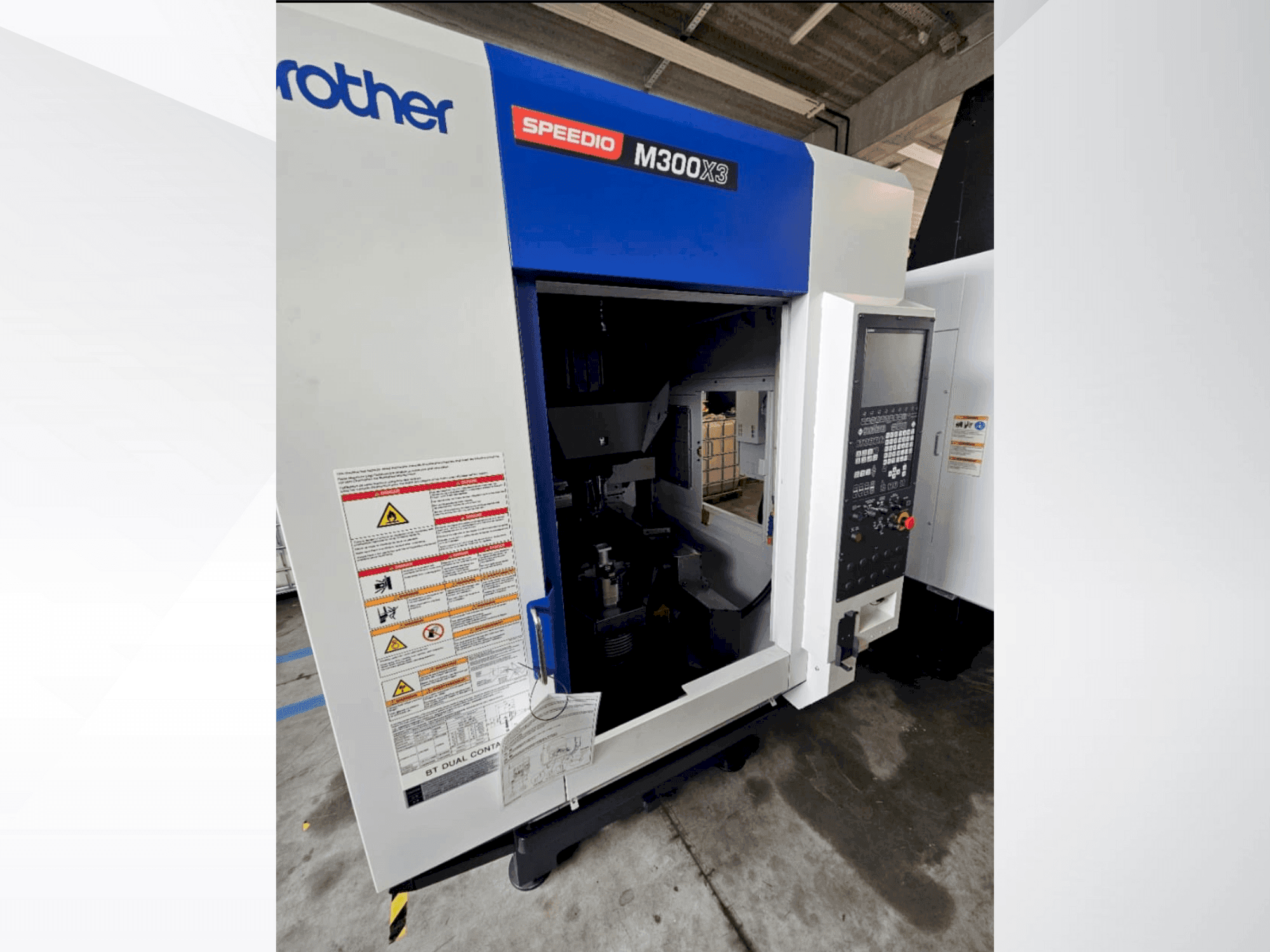

This 5-axis Brother Speedio M 300 X3 vertical machining center was manufactured in 2024. It features a CNC-C00 control unit, with travel dimensions of 300 mm on the X-axis, 440 mm on the Y-axis, and 305 mm on the Z-axis. The machine supports a spindle speed of up to 16,000 min⁻¹ and a rapid traverse rate of 50 m/min. It has a tool storage capacity of 22 tools. Consider the opportunity to buy this Brother Speedio M 300 X3 vertical machining center. Contact us for more information.

Overview

brand: Brother
year: 2024
MODEL: Speedio M 300 X3
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: BROTHER

Technical Information - Brother Speedio M 300 X3

Control Unit

Control Brand: BROTHER
Control Model: CNC COO

Movement

A-axis Max: 120°
A-axis Min: -30°
B-axis Max: 360°
X-axis Travel: 300 mm
Y-axis Travel: 440 mm
Z-axis Travel: 305 mm

Additional Information

Additional equipment

Tool Holder: 7/24 tapered No. 30 / Tool Storage Capacity: 22 tools / Tool Shank Type: MAS-BT30
Tool Dimensions: Diameter: 100 mm / Length: 200 mm / Weight: 3 kg
Tool-to-Tool Time: 0.8 sec
Chip-to-Chip Time: 1.6 sec
BT Dual Contact Spindle (BIG-PLUS): Optional / Coolant Through Spindle (CTS): Optional

Machine Benefits

Technical Machine Benefits

Table distance (top to spindle nose): 200 mm to 505 mm / table loading capacity: 75 kg / table load inertia: table side: 0. 58 kg·m², tail side: 0. 04 kg·m²
Rapid traverse rate (x, y, z): 50 m/min
Spindle speed: 16000 min⁻¹ / speed during tapping: max 6000 min⁻¹ / turning spindle speed: 1500 min⁻¹ / main spindle motor power: 10. 1/7. 0 kw
Axis feed motor power: x, y: 1. 0 kw / z: 1. 35 kw
Power supply: 200/210 v, 50/60 hz / continuous power capacity: 10 kva
Positioning accuracy (bidirectional): 0. 006 mm / repeatability (bidirectional): 0. 004 mm
Floor space: 1520 mm x 3862 mm / height: 2653 mm / weight: 2880 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
