➤ Used Brother Speedio S700X1 For Sale | gindumac.com

Show in original language

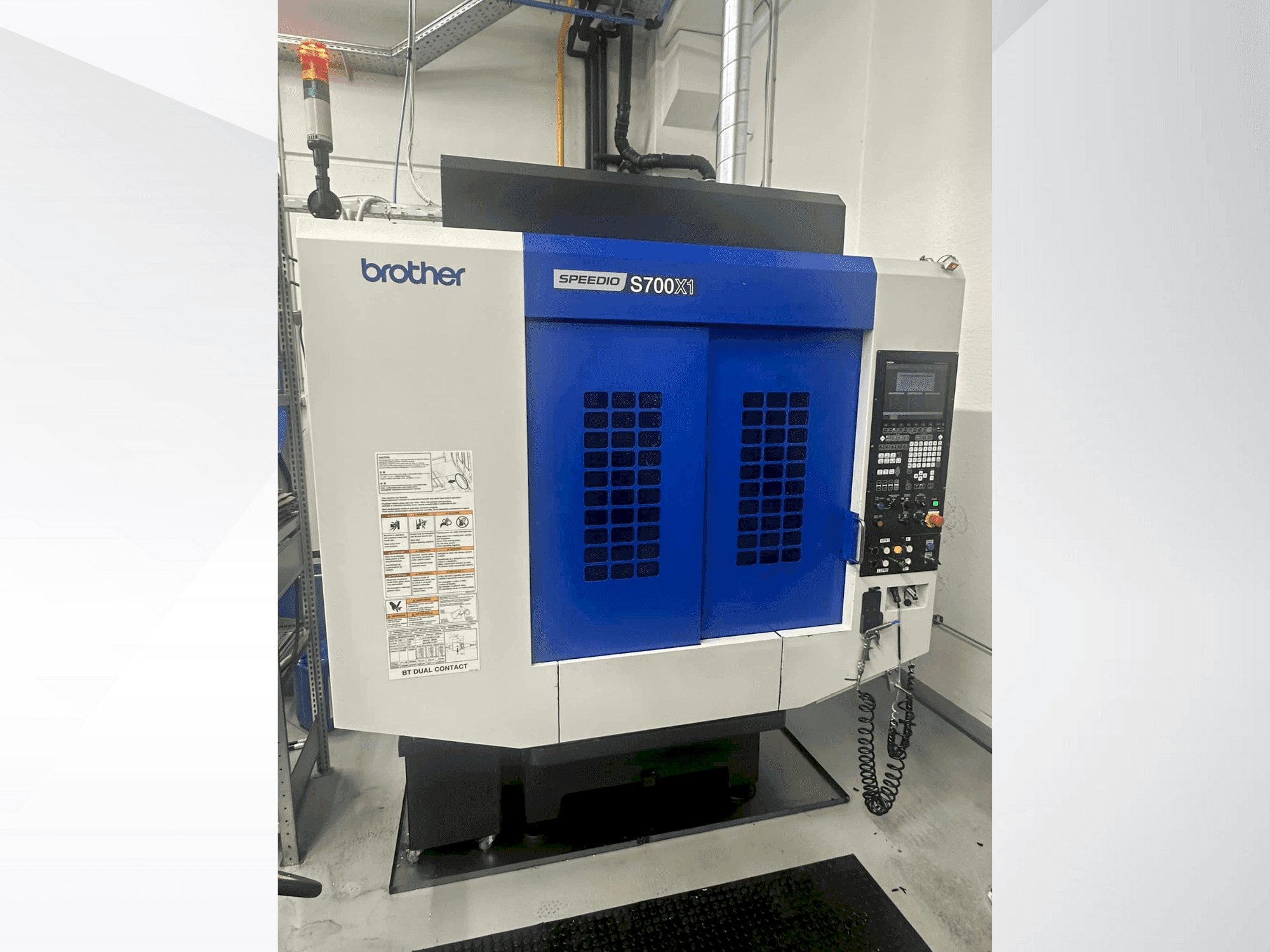

This 3-axis Brother Speedio S700X1 CNC milling machine was manufactured in 2017. It features a high-speed 16,000 rpm spindle, extensive travels of 700 mm in X, 400 mm in Y, and 300 mm in Z, and a rapid traverse rate up to 56 m/min. The machine includes a 21-piece tool storage capacity and supports advanced interfaces for robotics and automation. Ideal for precision machining, buy this Brother Speedio S700X1 CNC milling machine. Contact us for further details regarding this CNC milling machine.

Overview

brand: Brother
year: 2017
MODEL: Speedio S700X1
application type: Milling
Location: Slovenia
machine type: CNC Milling Machine
availability: Immediately

Technical Information - Brother Speedio S700X1

General Data

Machine weight: 2400 kg

Main drive

Spindle speed range: 16000 rpm 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 700 MM
Y-AXIS Movement: 400 MM
Z-AXIS Movement: 300 MM

Media

Internal cooling: Yes

Additional Equipment

- Robot Interface: Yes
- Automatic Door Interface: Yes
- Clamping Control: Pneumatic
- Additional Pneumatic Valves: 2x
- Additional Vacuum Valves: Yes, with upgrade for working with vacuum (safe work - confirmation of clamping under a certain vacuum)
- Handwheel: Included
- Clocks in Cycle: 9,840

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Required floor space:2,050 mm × 2,220 mm
- - Internal cooling: yes (12 bar)
- - Extended table: 840 mm clear dimensions between the supports of the 4th axis
- - Hydraulic pump: up to 120 bar, two-channel (i. E. , 2x clamp)
- - Rapid traverse rates of 50 m/min for x and y axes, and 56 m/min for z axis
- - Comprehensive hydraulic and pneumatic control systems
- - Robot and automatic door interfaces for automation
- - Power requirements:voltage: 230v / frequency: 50/60 hz / power consumption: 9. 5 kva / circuit protection: 25 ka
- - Electrical supply: ethercat / cnc-coo date: balan
Qualitative Machine Benefits:
- - 4th axis: with brake

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
