HARTFORD - MVP -11SI-MIL-HAR-2017-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used HARTFORD MVP -11 For Sale | gindumac.com

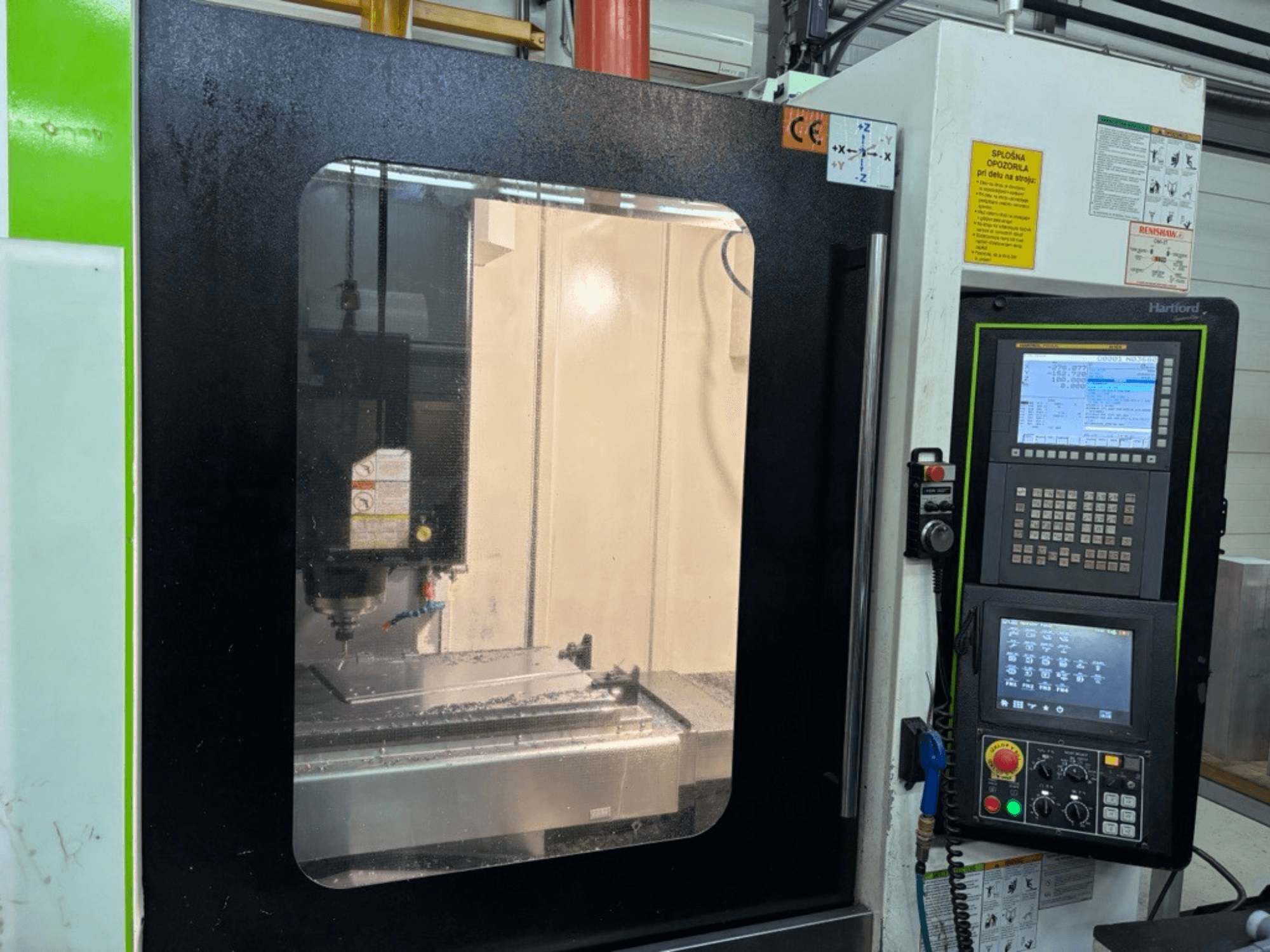

This 3-axis HARTFORD MVP-11 vertical machining centre was manufactured in 2017. It features an impressive X-axis travel of 1,020 mm, Y-axis travel of 600 mm, and Z-axis travel of 630 mm. The machine includes a robust worktable measuring 1,060 × 600 mm and a maximum table load of 800 kg. If you are looking to get high-quality machining capabilities, consider the HARTFORD MVP-11 machine we have for sale. Contact us for further details.
Overview
- brand: HARTFORD
- year: 2017
- MODEL: MVP -11
- production hours: 3939
- application type: Milling
- Location: Slovenia
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - HARTFORD MVP -11
Control Unit
- Control Brand: FANUC
- Control Model: Fanuc 0i-MF / AI100
Dimensions
- Machine Weight: 6800 kg
- Table Load: 800 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1020 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 630 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Spindle Speed: 12000 RPM
- Taper Size: BT 40
- Tool Stations: 30
Additional Information
Country of manufacture: Taiwan
Worktable:
Table size: 1,060 × 600 mm
T-slots: 5
T-slot spacing: 100 mm
Automatic tool changer (ATC):
Tool selection: Random
Max tool diameter: 75 mm
Max tool length: 300 mm
Electrical and utilities:
Power supply: 380 V, 3-phase, 50/60 Hz
Power requirement: 28 kVA
Full-load current: 100 A
Short-circuit breaking capacity: 10 kA
Required compressed-air pressure: 6.5 kg/cm² (92 psi)
Operating data (as shown on control):
Operating time: 3,939 h 46 min 38 s
Workpiece counter: 98,086
Displayed cycle time: 12 min 32 s
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
