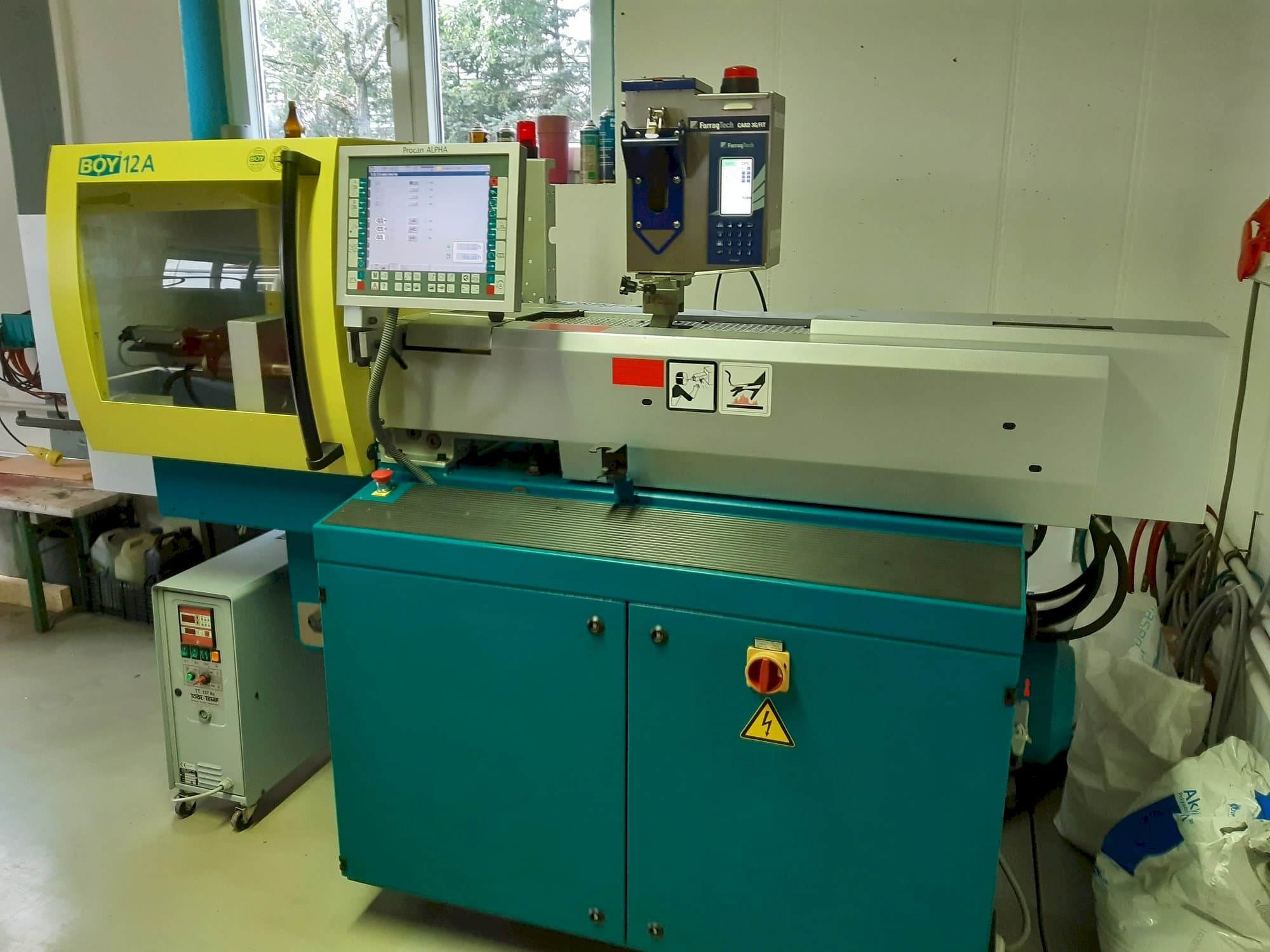

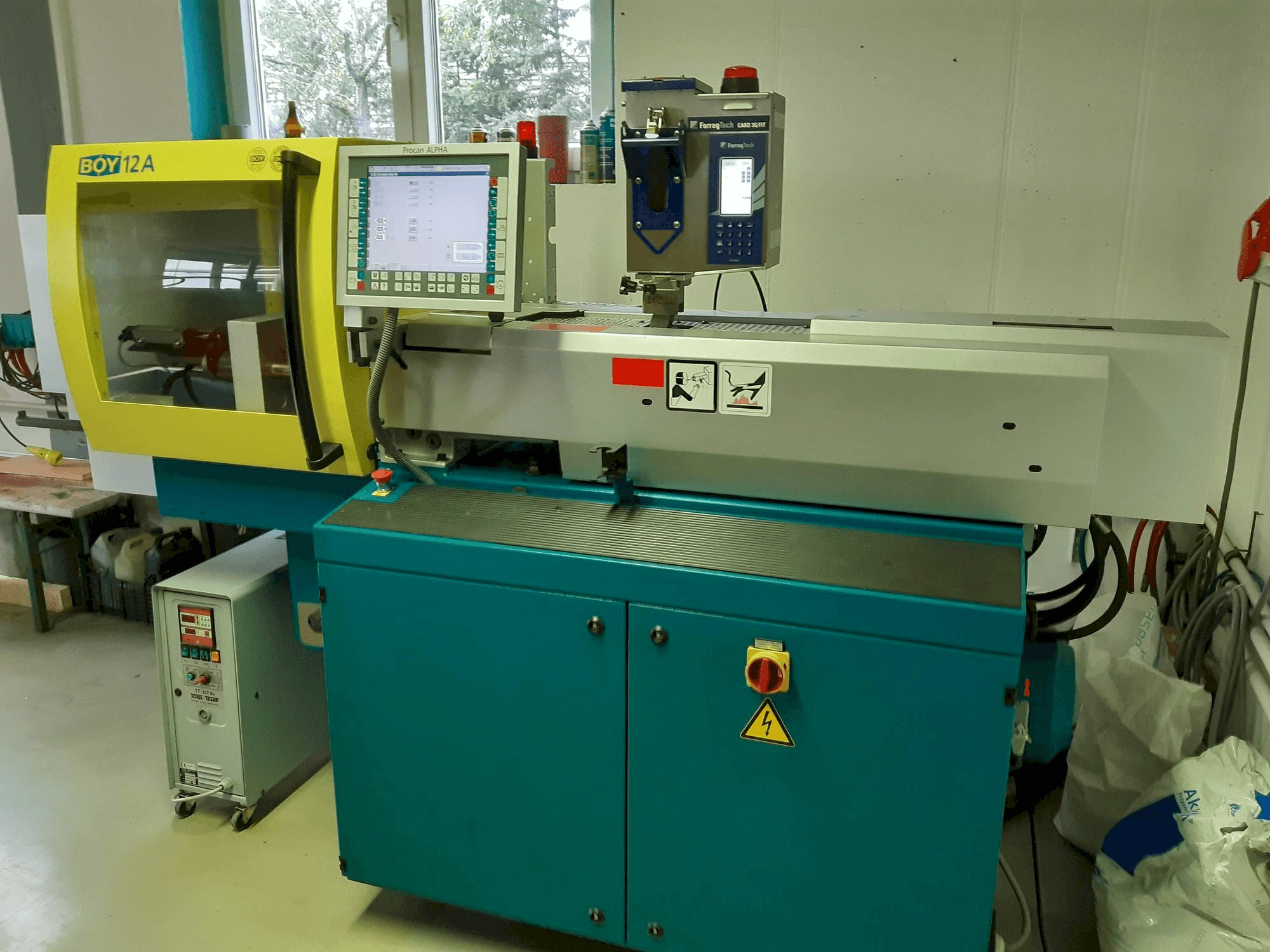

This BOY 12A Injection moulding machine was made in 2007 in Germany and has 1350 production hours. It is equipped with a Procan ALPHA control unit. The machine has a clamping force of 120 kN, and includes a temperature tool GETECHA as additional equipment.
Overview
- brand: BOY
- year: 2007
- MODEL: 12A
- production hours: 1350
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machines
- availability: Sold
- control unit brand: Procan
- GINDUMAC ID: DE-INJ-BOY-2007-00001
Technical Information
General Data
- Measurements width: 230 mm
- Measurements depth: 600 mm
- Measurements height: 600 mm
- Machine weight: 770 kg
Control Unit
- Brand: Procan
- Model: ALPHA
Clamping unit
- Clamping force: 120 kN
Additional Equipment
- - Temperature Tool GETECHA
Additional Information
- Technical Machine Benefits:
- - Temperature range up to 90°c with water or up to 150°c with heat transfer oil
- - Self-optimising microprocessor controller
- - Temperature control
- - Heat output 9 kw in 3 steps switchable 3/6/9 kw for water operation
- - Cooling capacity
- - Pump capacity: 18'000 kcal /h at 90°c
- - Pressure operation - max. 4. 0 bar / max. 75 /min.
- - Suction operation - vacuum max. 8 mws
- - Circulating medium - 1/2" it, cooling water - 3/8' et
- - Silver grey ral 7001 / anthracite grey ral 7016
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
