Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Biglia - B 470 YSMRO-TUR-BIG-2002-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Biglia B 470 YSM For Sale | gindumac.com

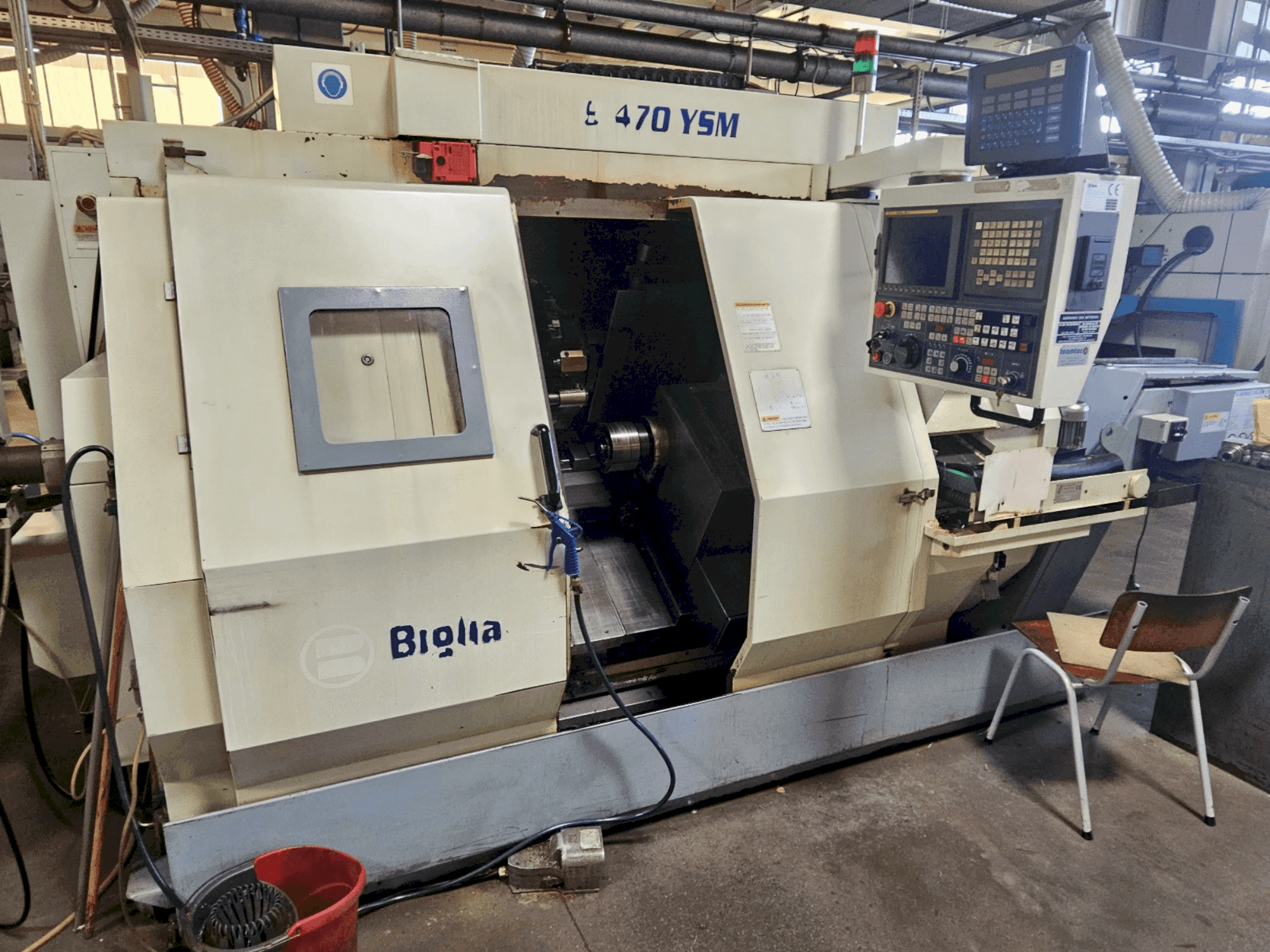

This Biglia B 470 YSM was manufactured in 2002. It features a maximum turning diameter of 300 mm and a turning length of 550 mm. The spindle supports up to 5,000 rpm with a power of 15-18.5 kW. It includes a 12-position turret for diverse tooling options and is equipped with a GE Fanuc 18i-T control system. Consider the opportunity to buy this Biglia B 470 YSM horizontal turning machine. Contact us for more information about this machine.
Overview
- brand: Biglia
- year: 2002
- MODEL: B 470 YSM
- application type: Turning
- Location: Romania
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Biglia B 470 YSM
Control Unit
- Control Brand: FANUC
- Control Model: 18i-T
Additional Information
Machine Benefits
Technical Machine Benefits
- Max. Turning diameter: 300 mm / max. Turning length: 550 mm / bar capacity: Ø 65 mm
- Ge fanuc 18i-t / full g-code support / manual guide i / multiple offset memory / remote unit: rwt freeway 20 (for data i/o or dnc control)
- Max spindle speed: 5000 rpm / spindle power: approx. 15–18. 5 kw / spindle bore: up to Ø 70 mm
- 12-position turret / static tools (od/id turning, facing) driven tools (live tools) for drilling, tapping, milling / tool holders: vdi or bmt depending on variant / live tools speed: up to 5000 rpm
- X / z / y axes for full milling and turning / c-axis on spindle for interpolated positioning (0. 001°) / y-axis travel: approx. ±50 mm
- Coolant type: blaser blasocut 2000 / hydraulics oil: agip exidia 32 ep / lubrication oil: agip exidia 68 ep
- Bar feeder: iemca master 880 mp / capacity: Ø 8–80 mm / bar length: up to 3000–3300 mm / fully automatic loading, synchronized with spindle
- Voltage: 400 v / phases: 3 / current: 65 a / frequency: 50 hz
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
