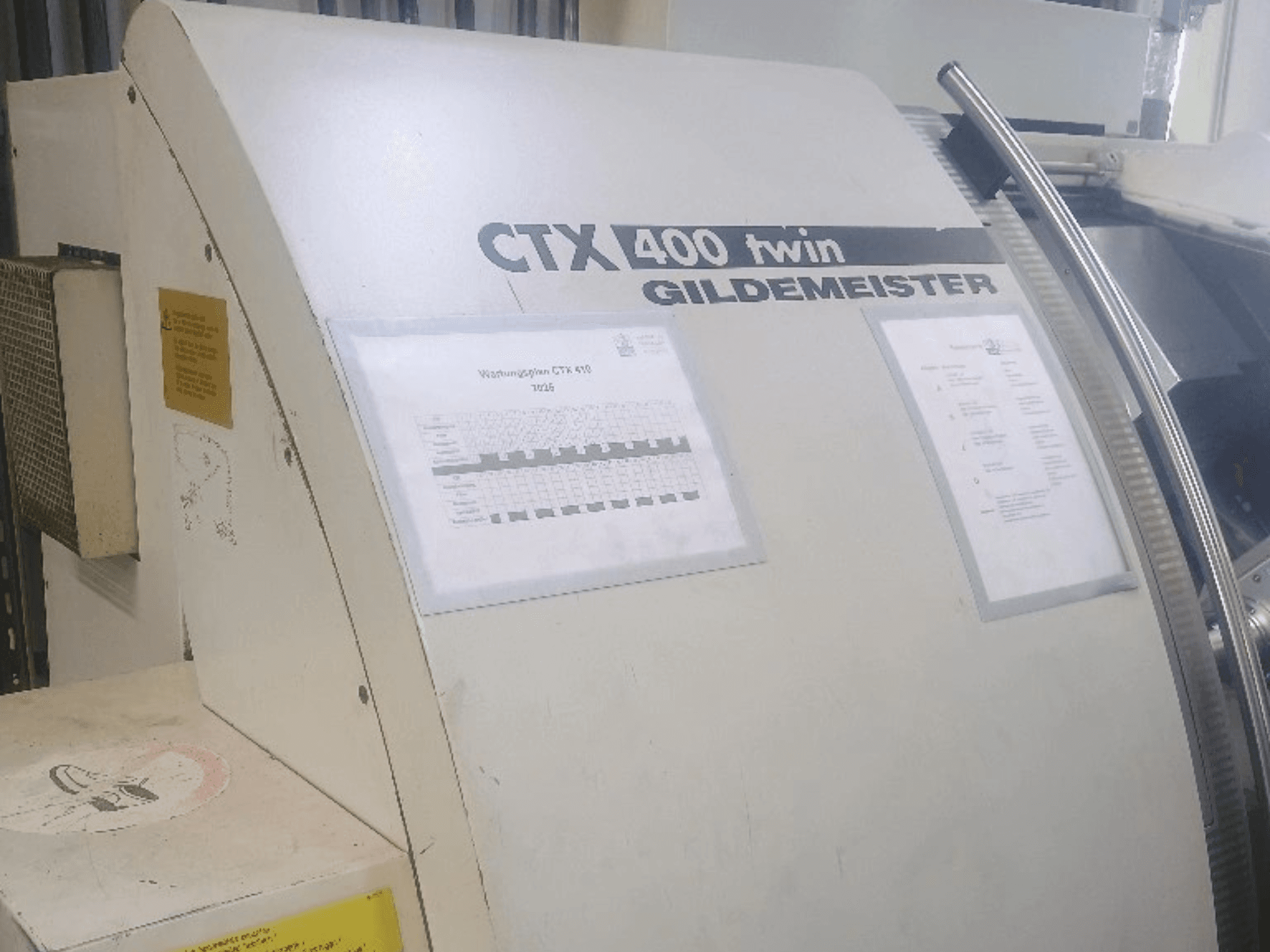

Gildemeister CTX 400 twin

Photo Gallery

£ 18,852

gindumac price

(Ex works)

Get an official quote

Gildemeister - CTX 400 twinAT-TUR-GIL-2001-00001

Name: Gildemeister CTX 400 twin
Brand: Gildemeister
SKU: AT-TUR-GIL-2001-00001
Price: 18852 GBP
Availability: InStock

£ 18,852

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Gildemeister CTX 400 twin For Sale | gindumac.com

Show in original language

This 4-axis Gildemeister CTX 400 twin was manufactured in 2001. It features a maximum swivel diameter over bed of 570 mm and a maximum turning length of 635 mm. The machine is equipped with a Heidenhain CNC Pilot control system and offers a speed range of 25 – 5,000 min⁻¹. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX 400 twin horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: Gildemeister
year: 2001
MODEL: CTX 400 twin
production hours: 60837
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 400 twin

Control Unit

Control Brand: HEIDENHAIN

Dimensions

Machine Weight: 5700 kg
Machine Width: 1750 mm

Movement

Number of Axes: 4
X-axis Travel: 220 mm
Y-axis Travel: 80 mm
Z-axis Travel: 635 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Power: 28 kW
Spindle Speed: 5000 RPM

Additional Information

- Maximum swivel diameter over bed: 570 mm

- Maximum swivel diameter over cross slide: 420 mm

- Max. turning length: 635 mm

- Bar diameter (main and counter spindle): 65 mm

- Chuck diameter (max.): 250 mm

- Speed range: 25 – 5,000 min⁻¹

- Drive power (main spindle): 28 / 21 kW (100% / 40% duty cycle)

- Max. torque (main spindle): 320 / 240 Nm

- Drive power (counter spindle): 12 / 9 kW

- Spindle bore: 79 mm (spindle bearing 120 mm)

- C-axis: Available (for main and counter spindles / C-axis operation)

- Control system: Heidenhain CNC Pilot

- Machine width: approx. 1,750 mm (without auxiliary units such as chip conveyors)

- Operating Hours: 60,837 h

- Voltage: 400 V / 230 V / 24 V

- Power: 44 kVA

- Frequency: 50 Hz

- Current: 64 A / 80 A

- Included Accessories: 2x jaw chucks, 2x clamping chucks, soft jaws, base jaws, various collets (RD65, RD80, E185, E173, etc.), reduction tubes, chip conveyor (Bürener Maschinenfabrik), cooling unit/filter system, slotting unit (Hub 32), complete documentation manuals

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
