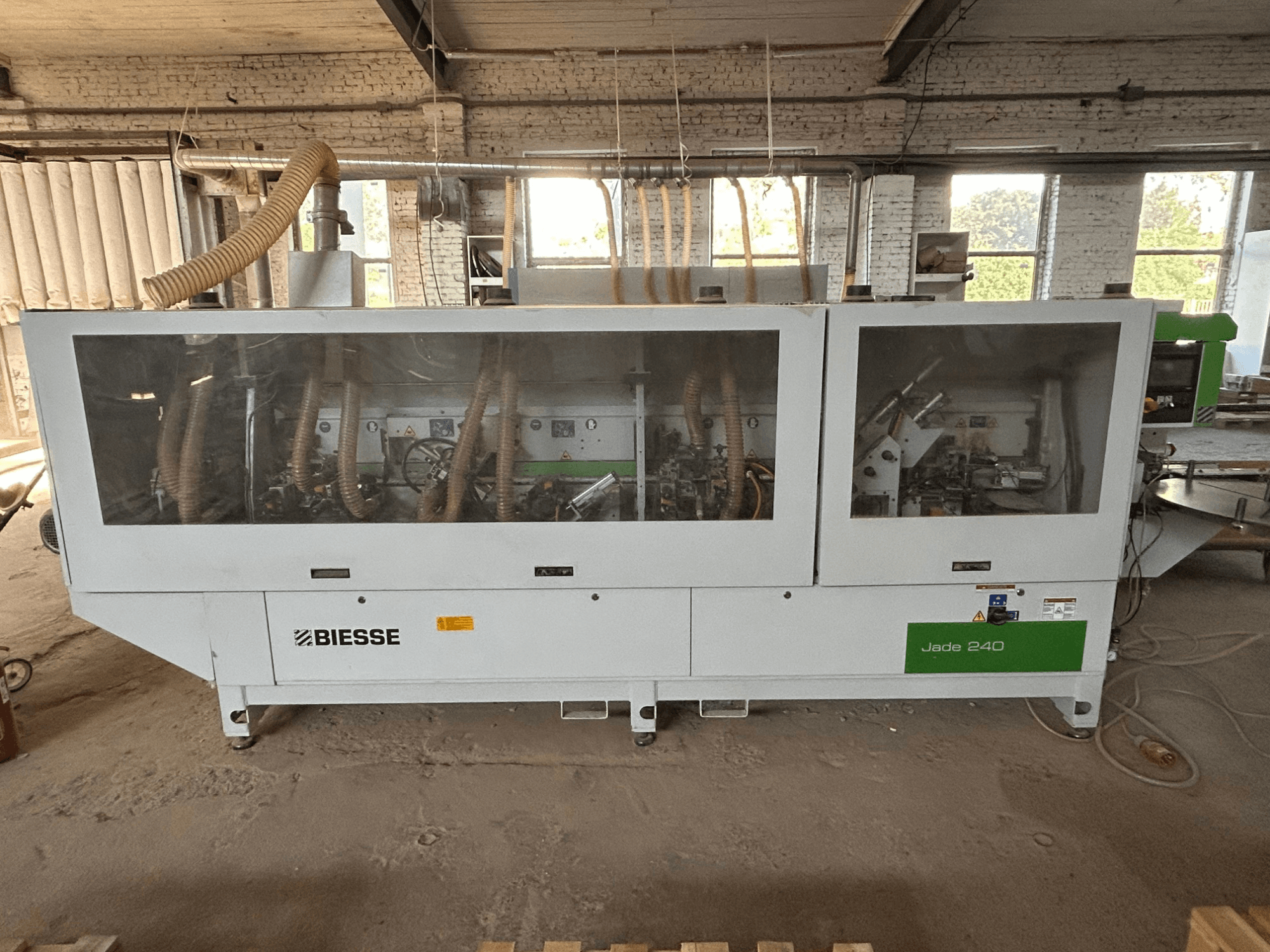

Edgebander manufactured in 2017. This BIESSE Jade 240 features a panel thickness capacity of 10-60 mm and an edge height range of 14-64 mm. It includes a pre-milling unit, glue application unit, and various trimming units for enhanced functionality. If you are looking to get high-quality edge banding capabilities, consider the BIESSE Jade 240 machine we have for sale. Contact us for further details.
Overview
- brand: BIESSE
- year: 2017
- MODEL: Jade 240
- application type: Edge Banding
- Location: Poland
- machine type: Edgebander
Technical Information - BIESSE Jade 240
Dimensions
- Machine Length: 4168 mm
- Machine Weight: 1650 kg
Additional Information
Technical data:
Panel thickness: 10–60 mm
Edge height: 14–64 mm
Edge thickness (coil): 0.4–3 mm
Edge thickness (solid strips): up to 8 mm
Feed speed: 12 m/min
Minimum workpiece length: 150 mm
Minimum workpiece width at 150 mm length: 85 mm
Minimum workpiece width at 250 mm length: 50 mm
Pneumatic connection: 7 bar
Glue pot capacity: approx. 2 kg
Glue pot heat-up time: approx. 10 min
Dust extraction connections: 100 mm
Standard units:
Pre-milling unit
Glue application unit
End trimming unit
Flush/profile trimming unit
Corner rounding unit
Radius scraping unit
Glue joint scraper
Buffing unit
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
