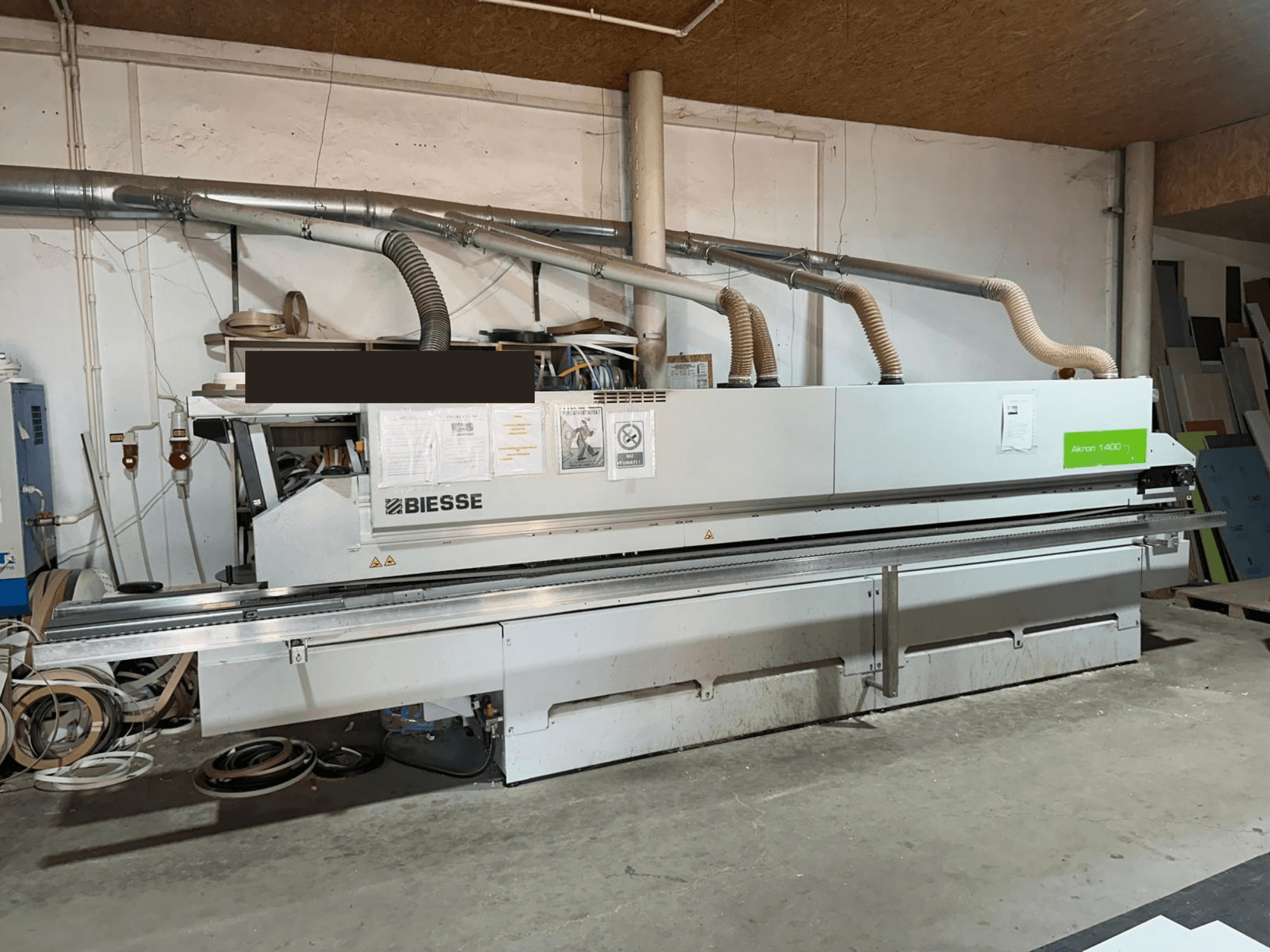

BIESSE - AKRON 1440 ARO-EDG-BIE-2021-00001

Technical specifications:

• Feed speed: 12–18 m/min

• Feed motor: 1.5 kW

• Panel thickness: 10–60 mm

• Edge thickness (from rolls): 0.4–3 mm

• Edge thickness (from strips): 0.4–12 mm

• Glue pot capacity: approx. 2 kg

• Glue heating time: approx. 10 min

• Power supply: 400 V / 50 Hz / 3 Ph + N

• Control voltage: 24 V DC

• Processed edgeband: approx. 737,000 m

Integrated configuration/equipment:

• Automatic edgeband feeding from rolls and strips

• NC-controlled automatic group adjustment

• Automatic program selection and diagnostics

• Production statistics and maintenance software

• Antistatic spraying unit

• Pre-milling unit with 2 × 1.8 kW HF motors

• Glue application and pressure unit

• End trimming unit

• Top/bottom trimming unit

• Corner rounding unit

• Radius scraping unit

• Surface scraping unit

• Textile polishing brushes

• Cleaning liquid spray unit

• Hot air blower
