AWEA BM-1600
AWEA - BM-1600
2006
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- AWEA BM-1600 Vertical Machining Center

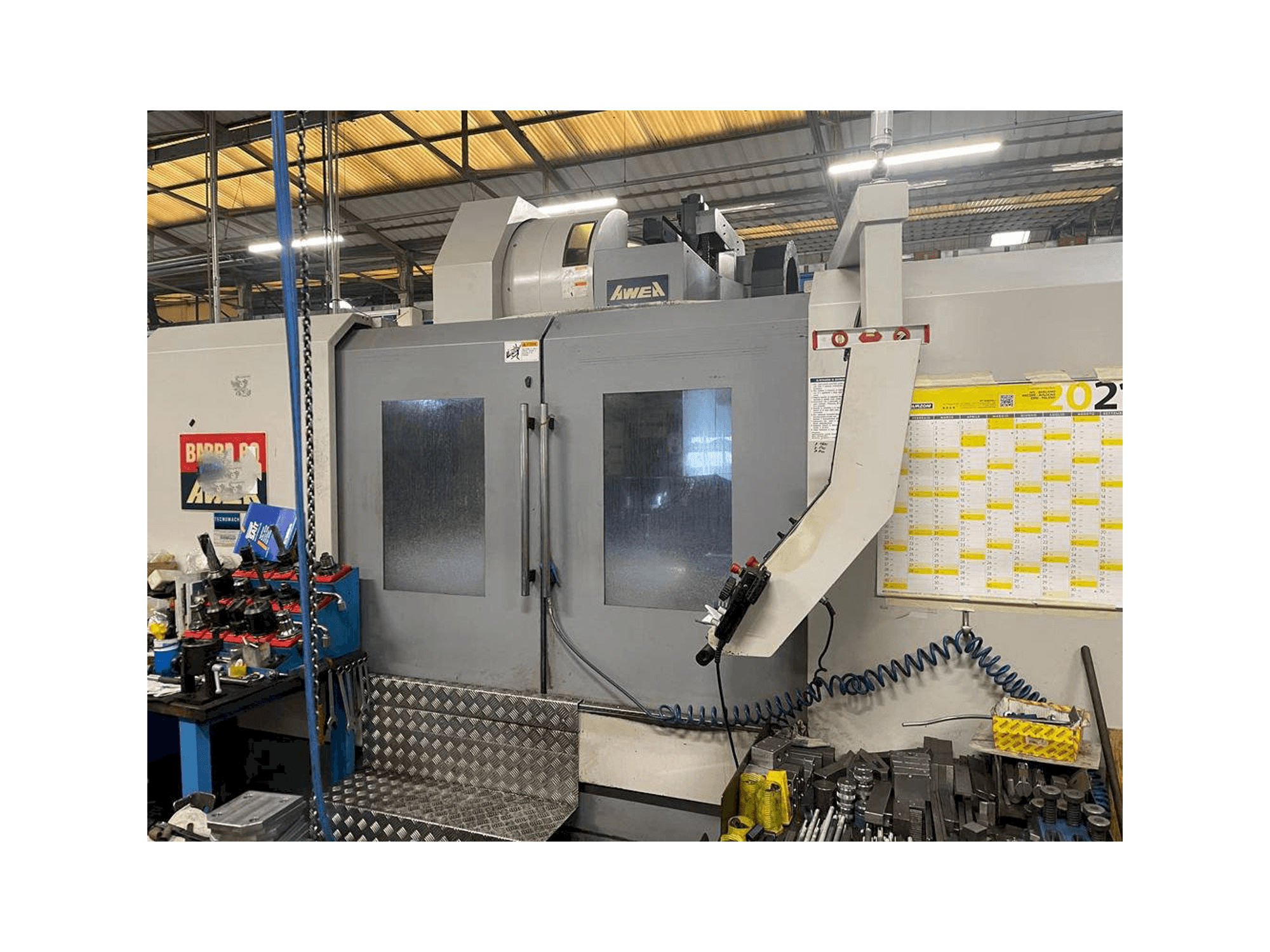

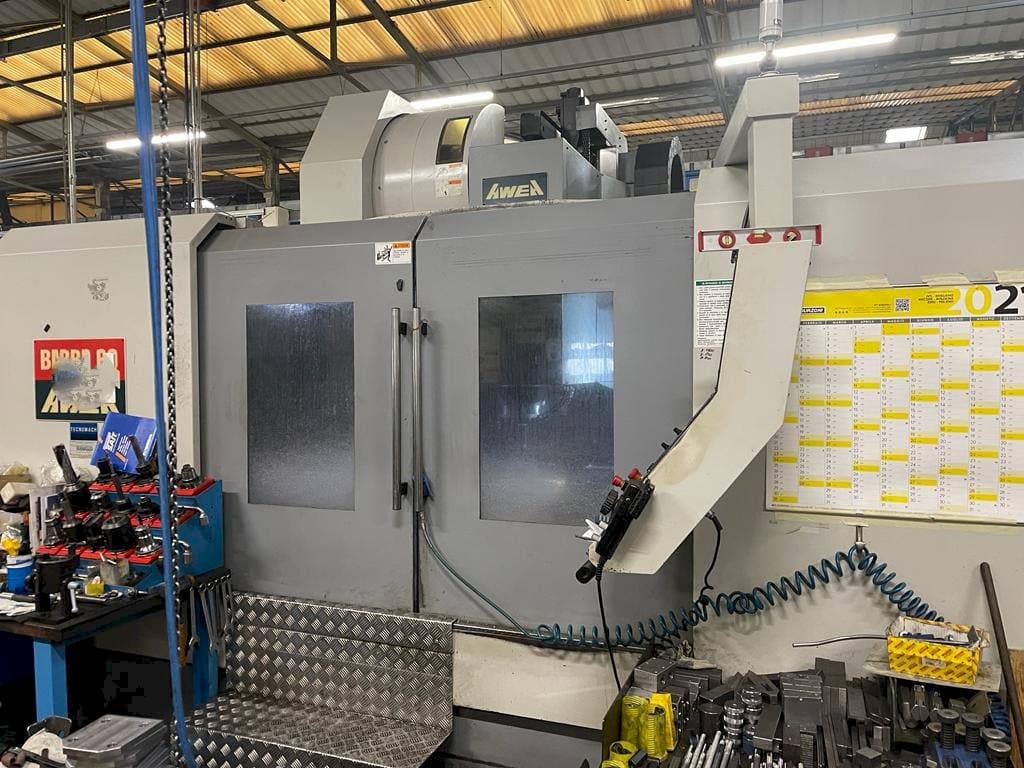

This AWEA BM-1600 Vertical Machining Center was made in Taiwan in the year 2006. It is equipped with an Heidenhain control unit. This 3 axis machine can work with a spindle speed up to 6000 rpm. This model allows to process workpieces with up to 2000 kg of weight.
Overview
- brand: AWEA
- year: 2006
- MODEL: BM-1600
- application type: Milling
- Location: Italy
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Heidenhain
- GINDUMAC ID: IT-MIL-AWE-2006-00001
Technical Information
General Data
- Measurements width: 4400 mm
- Measurements depth: 3000 mm
- Measurements height: 3200 mm
- Machine weight: 16000 kg
Control Unit
- Brand: Heidenhain
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 1600 mm
- Y-AXIS Movement: 800 mm
- Z-AXIS Movement: 800 mm
Workpiece
- Workpiece weight: 2000 kg
Table
- Outer length: 1700 mm
- Outer width: 800 mm
Tools
- Max weight: 7 kg
- Max tool diameter: 130 / 250 mm
- Max tool length: 300 mm
Media
- Main electronic connection: 220 V / 3 P
- Power consumption: 40 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
