- ➤ Used AWEA AF-1000 For Sale | gindumac.com

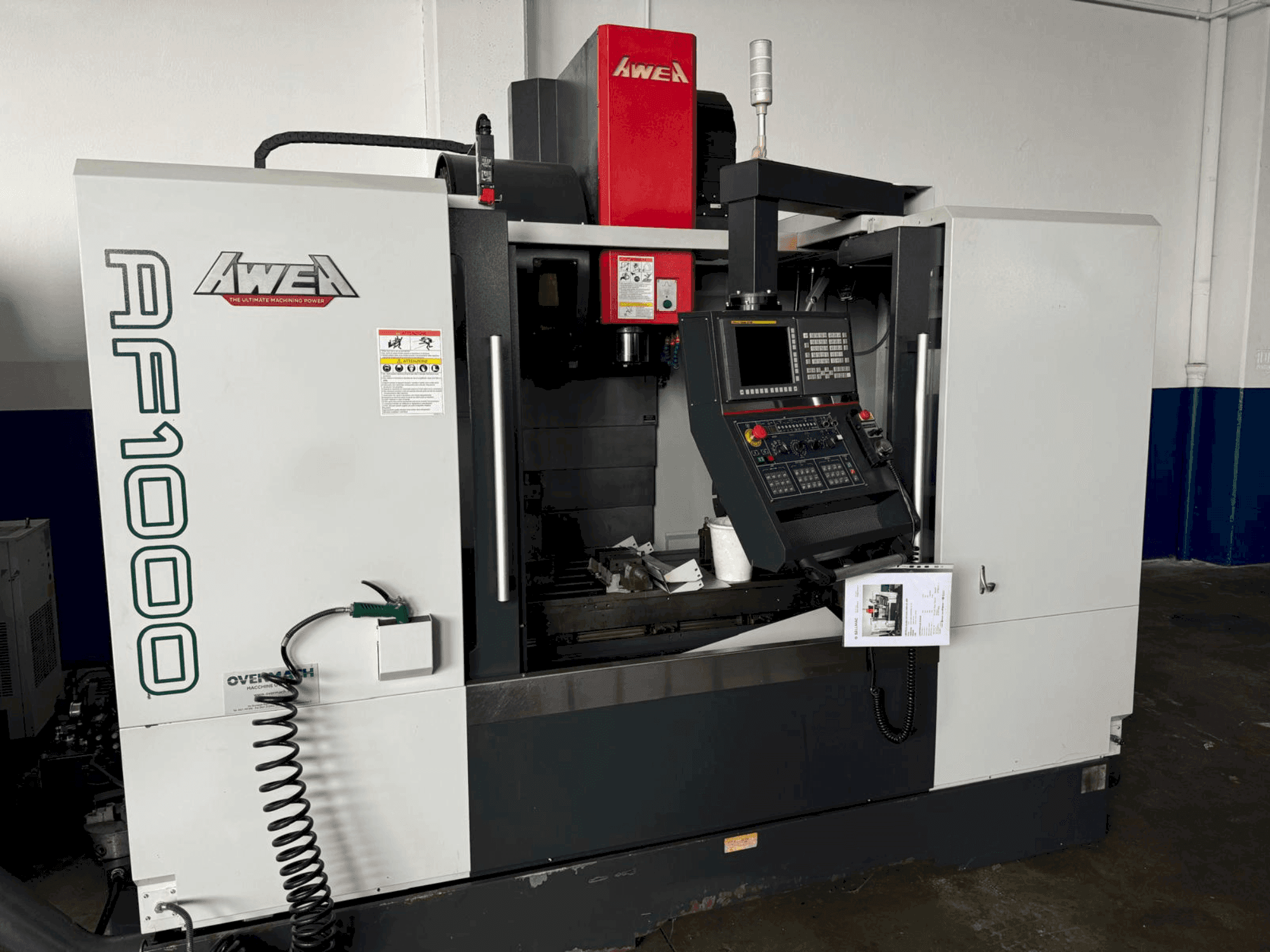

This 4-axis AWEA AF-1000 vertical machining center was manufactured in 2017. It features a 1020 mm X-axis travel, 550 mm Y-axis travel, and 635 mm Z-axis travel. Equipped with a high-speed 12,000 rpm spindle, ISO 40 taper, and a 24-tool arm changer. Includes a 4-axis continuous table and chip conveyor. Ideal for complex machining tasks. Contact us for more information about this machine.
Overview
- brand: AWEA
- year: 2017
- MODEL: AF-1000
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - AWEA AF-1000
Dimensions
- Machine Depth: 3590 mm
- Machine Height: 2630 mm
- Machine Weight: 7000 kg
- Table Load: 500 kg
Movement
- Number of Axes: 4
- X-axis Travel: 1020 mm
- Y-axis Travel: 550 mm
- Z-axis Travel: 635 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Spindle Speed: 12000 RPM
- Taper Size: ISO 40
Additional Information
Table dimensions: 1200 × 550 mm
Distance from table surface to floor: 915 mm
Working feed: 10,000 mm/min
Spindle nose to table distance: 100–735 mm
Spindle center to column distance: 640 mm
Axis motors (X/Y/Z) kW/HP: 3.0/4.0; 3.0–4.0/5.4
ATC type: Arm changer
Tool magazine capacity: 24 tools
Required power: 30 kVA
Additional equipment
4-axis continuous table
Chip conveyor (screw type)
Remote handwheel
Supplied with manual and CE certification
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
