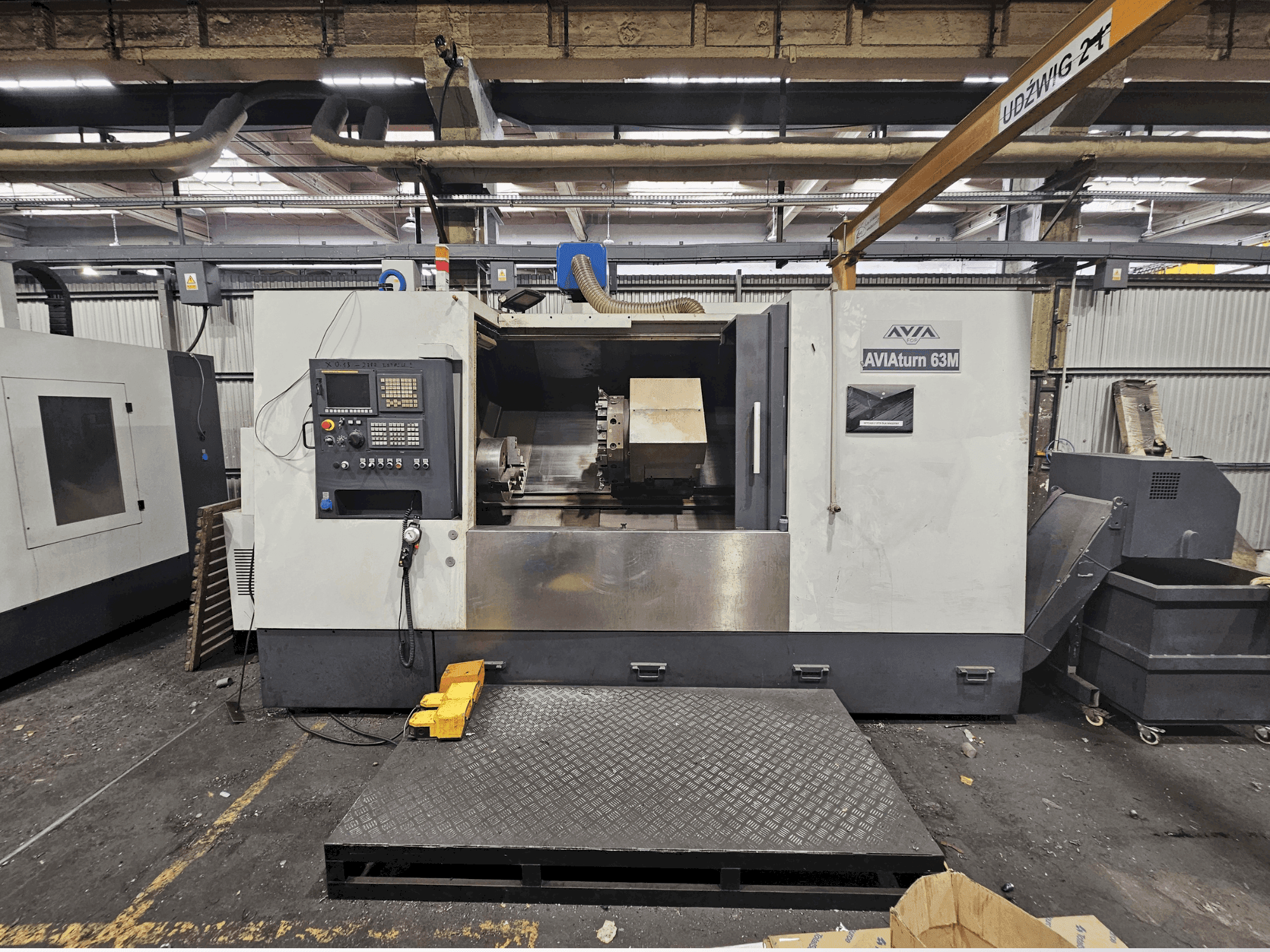

This Avia Turn 63M was manufactured in 2012. A robust horizontal turning machine featuring a spindle speed of 1800 rpm and a 3-jaw chuck size of 400 mm. It includes a 12-station turret with 6 active stations, supporting VDI 50 and BMT 75 tool types. CNC control is managed by FANUC 0i-TD, ensuring precision and ease of operation. Consider the opportunity to buy this Avia Turn 63M horizontal turning machine. Contact us for more information about this machine.
Overview
- brand: Avia
- year: 2012
- MODEL: Turn 63M
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Avia Turn 63M
Control Unit
- Control Brand: FANUC
- Control Model: 0i-TD
Additional Information
Additional equipment
- Some accessories and tool holders included
Machine Benefits
Technical Machine Benefits
- Dimensions of machine (lxwxh): 4580 x 2150 x 2370 mm / weight (kg): approximately 7500 kg
- Spindle speed: 1800 rpm / total power consumption: 60 kva
- Diameter above the bed: 770 mm / diameter over support: 630/445 mm / turning length: 1400 mm / 3-jaw chuck size: 400 mm
- Number of stations: 12 (6 active stations) / tool type: vdi 50 / bmt 75 / tool size: 32 x 32 mm / tool diameter: 50 mm / driven tool speed: 4000 rpm
- Travel: 1150 mm / quill diameter: 110 mm / quill travel (hydraulic): 100 mm / tailstock cone: mk 5
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
