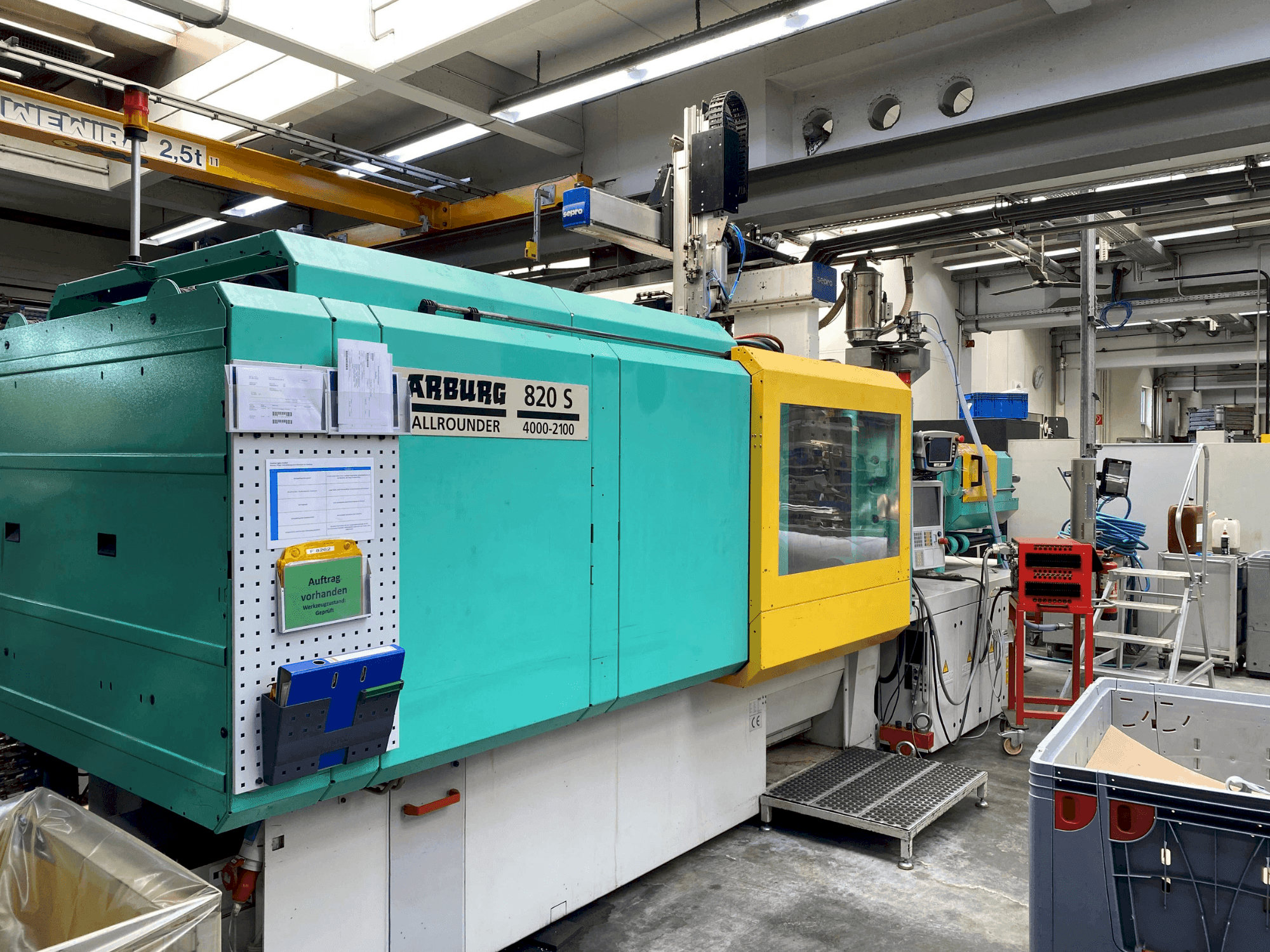

Arburg - Allrounder 820 S 4000-2100DE-INJ-ARB-2007-00012

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Clamping force: 4000 kn / locking force: 150 kn / opening force: 800 kn / opening stroke: 700 mm / mold height: 350 mm / distance between platens: 1050–1550 mm / clear tie bar distance: 820 × 820 mm / mold mounting platens: 1171 × 1171 mm / mold half weight: 4500 kg / ejector force: 100 kn / ejector stroke: 250 mm
  • - Effective screw length (l/d): 23 / screw diameter: 60/65/70 mm / theoretical shot volume: 792/1078/1407 cm³ / shot weight: 293/384/1826 g ps / injection pressure: 2500 bar / injection flow rate: 294/362/400 cm³/s / injection flow rate with accumulator: 354/450/502 cm³/s / back pressure: 350/50 bar / screw circumferential speed: 0. 38 m/s / screw torque: 2057/2247 nm / nozzle contact force: 110 kn / nozzle stroke: 600 mm / number of heating zones / heating capacity: 6 × 4500 kw +3300 kw / installed nozzle heating: 1000 w
  • - Hydraulic pump drive power: 55 kw / installed total power: 88. 9/96. 2 kw
  • - Clearance length: 490 mm / net weight: 21000 kg / electrical connection motor + heating: 250 a / electrical connection motor: 125 a / electrical connection heating: 50 / 63 a
