Arburg - ALLROUNDER 270 S 400-100NL-INJ-ARB-2018-00002

Name: Arburg ALLROUNDER 270 S 400-100
Brand: Arburg
SKU: NL-INJ-ARB-2018-00002
Price: 48690 GBP
Availability: InStock

£ 48,690

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg ALLROUNDER 270 S 400-100 For Sale

Show in original language

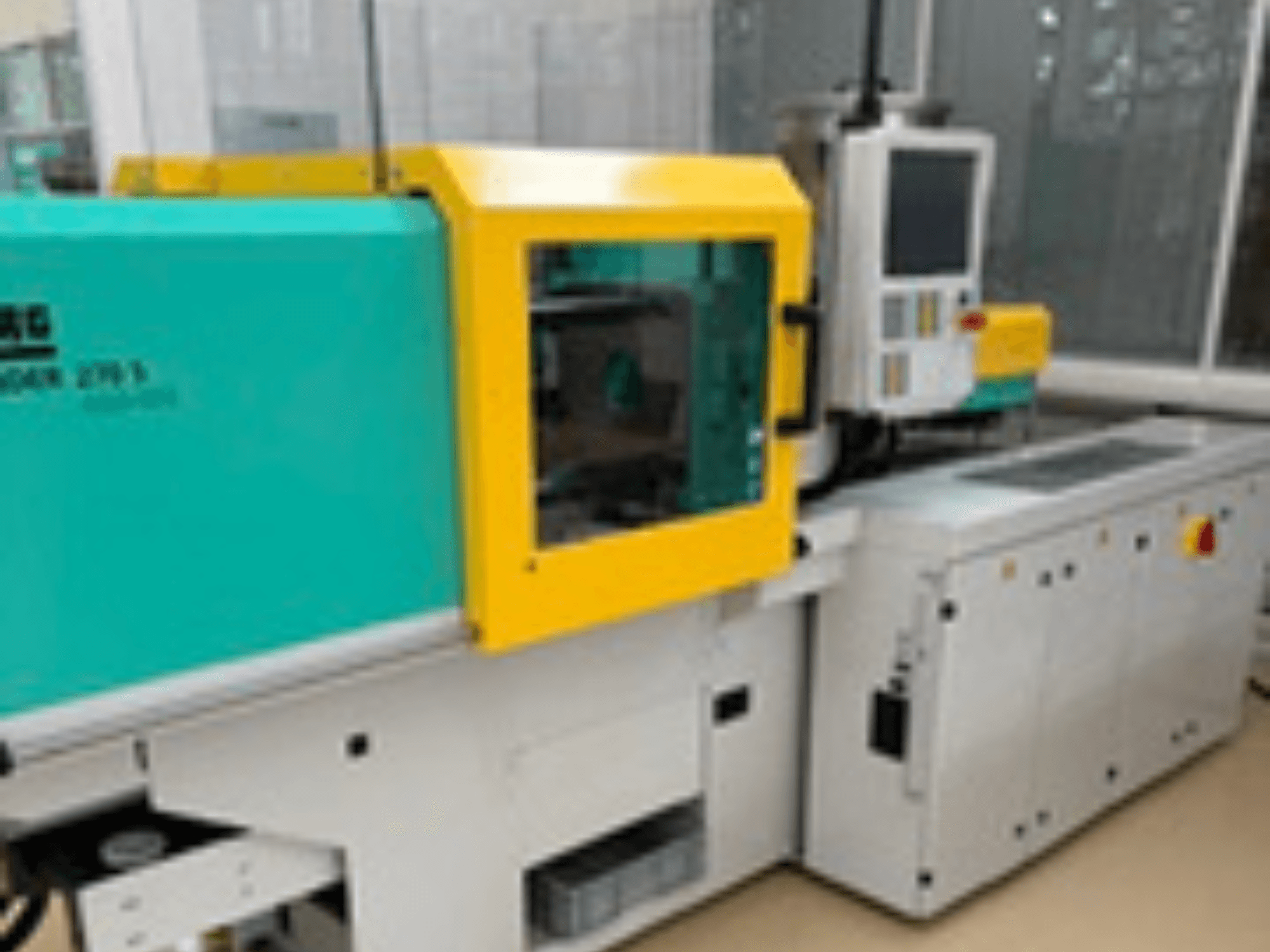

Hydraulic injection moulding machine manufactured in 2018. This Arburg ALLROUNDER 270 S 400-100 features a maximum clamping force of 400 kN and offers screw diameter options of 15 mm, 20 mm, or 30 mm. It has a maximum injection pressure of 2,500 bar for the smaller screws and a maximum shot weight of 79 g for the largest. If you are looking to get high-quality injection moulding capabilities, consider the Arburg ALLROUNDER 270 S 400-100 machine we have for sale. Contact us for further details.

Overview

brand: Arburg
year: 2018
MODEL: ALLROUNDER 270 S 400-100
application type: Injection Moulding
Location: Netherlands
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg ALLROUNDER 270 S 400-100

Technical Specification

Clamping Force: 400 kN
Max. Shot Weight: 79 g
Screw Diameter: 30 mm

Additional Information

Tie bar distance: 270 mm
Injection unit: size 100 (per EUROMAP)
Operating hours: 4,261 h (automatic)
Screw diameter options: 15 / 20 / 30 mm
Max. swept volume: 18 cm³ (15 mm), 31 cm³ (20 mm), 71 cm³ (30 mm)
Max. shot weight (at 1.15 g/cm³): 20 g (15 mm), 35 g (20 mm), 79 g (30 mm)
Max. injection pressure: 2,500 bar (15/20 mm), 1,390 bar (30 mm)
Centering diameter: 125 mm
Vacuum pump capacity: approx. 25 m³/h
Pneumatic flow rate: 1,000 l/min per circuit
Heating capacity per control circuit: 3.6 kW / 230 V (16 A fuse)
Drive motor voltage: 380–480 V (50–60 Hz)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
