➤ Used ARBURG 470C 1500-675 | Injection Moulding Machine

Show in original language

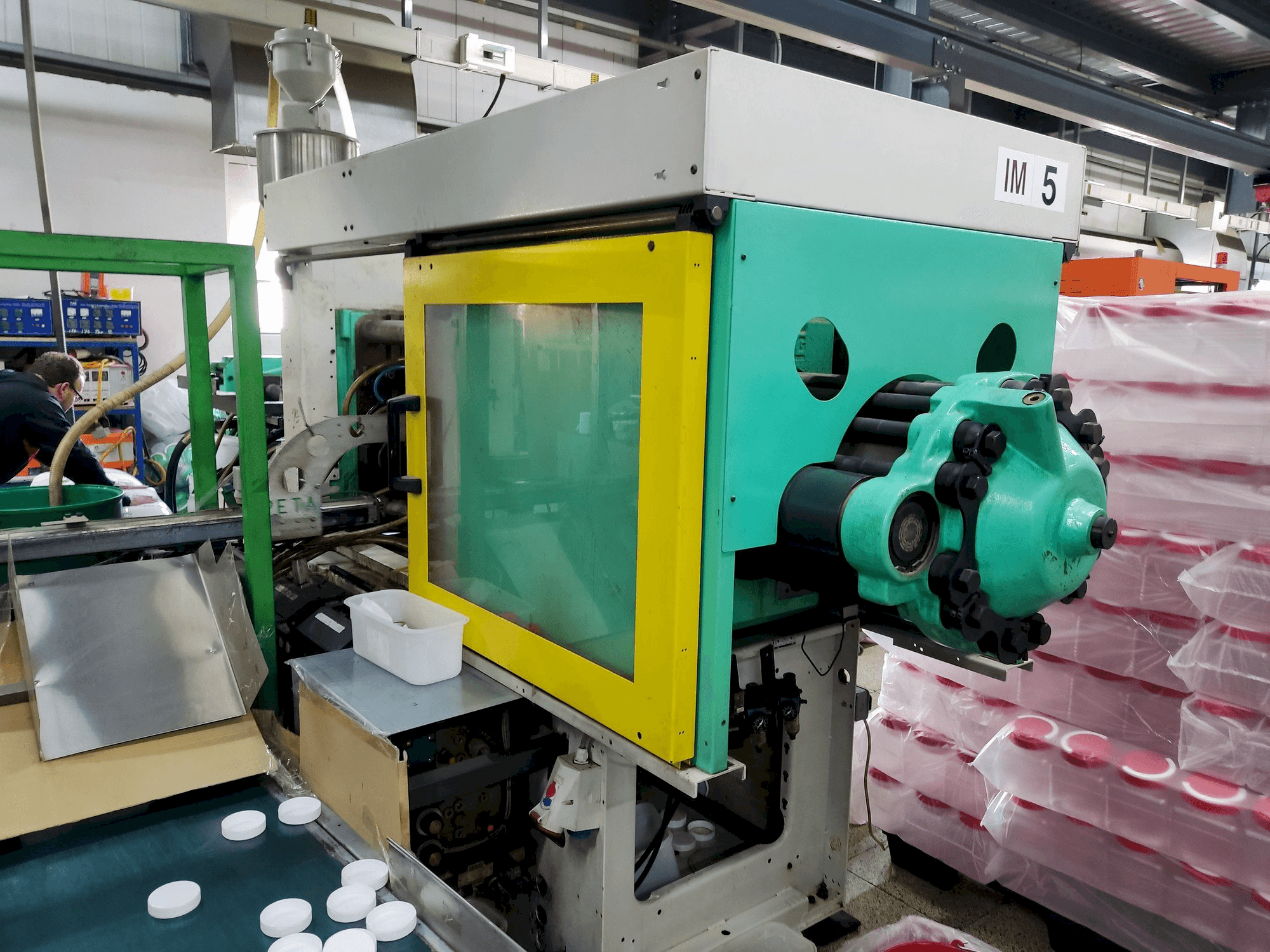

This ARBURG 470C 1500-675 Injection moulding machine was manufactured in the year 2003 in Germany. The machine has clamping force of 1500 kN, a Opening stroke max. of 500 mm and a Mould height of min 250 mm.

Overview

brand: Arburg
year: 2003
MODEL: 470C 1500-675
application type: Injection Moulding
Location: Cyprus
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg 470C 1500-675

Technical Specification

Clamping Force: 1500 kN

Additional Information

Machine Benefits

Qualitative Machine Benefits

Safety standard acc. To: din en 60204
Socket combination (1 single-phase, 1 three-phase): 1x16a

Technical Machine Benefits

Opening force / increased max: 35/350 kn
Distance between clamping platens: max. 750 mm
Mould clamping platens (w x h): 650x650 mm
Weight of m oving mould half: 1000 kg
Hydraulics, drive, general
Drive capacity of hydraulic pump: 30 kw
Dry cycle time for opening stroke: 2,4-329 s-mm
Total connected load: 46,3 : kw
Colour: plastic coating structure light grey / mint green / canary yellow
Control cabinet

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
