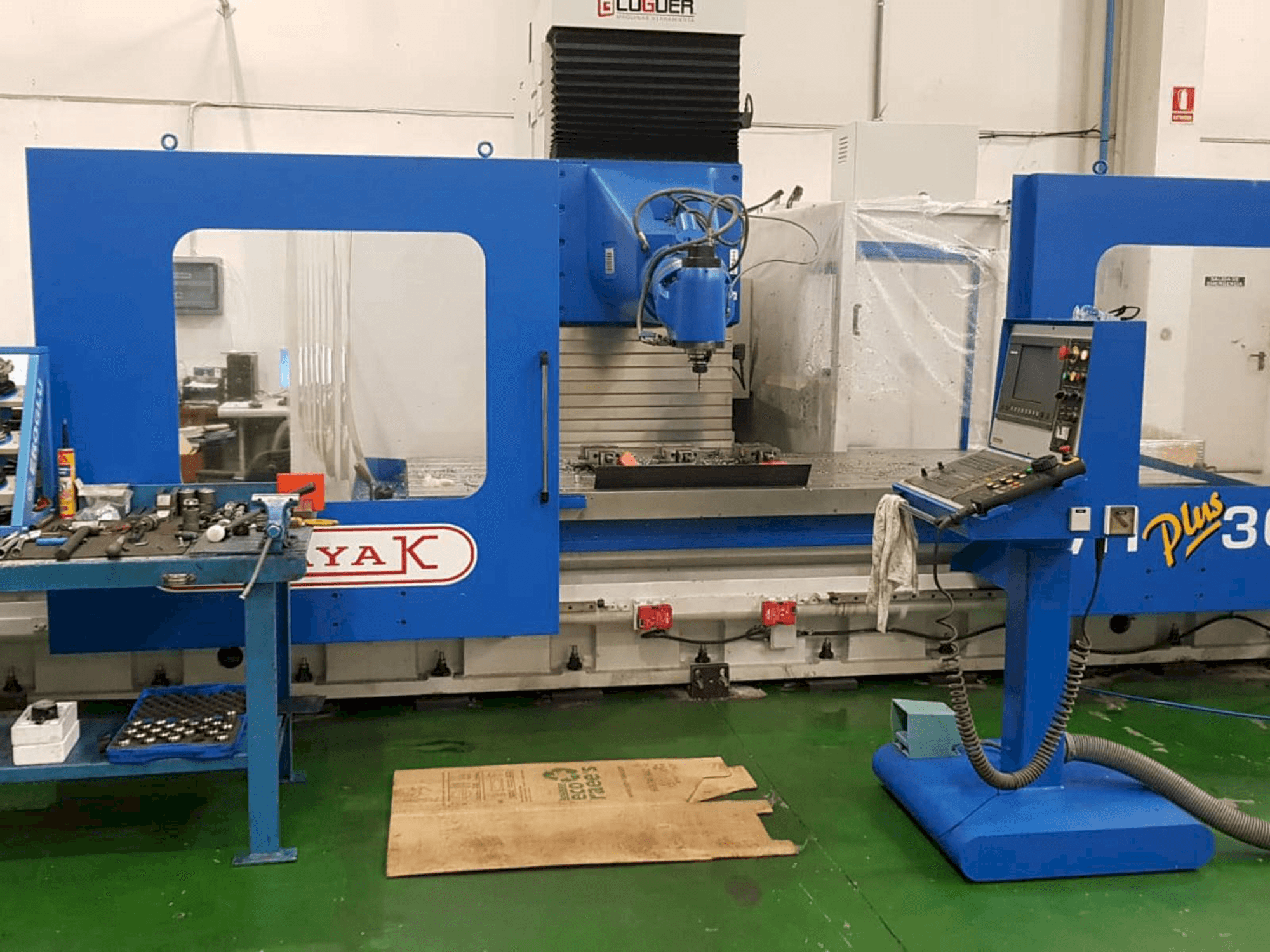

Front view of ANAYAK VH-Plus-3000-N machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

ANAYAK VH-Plus-3000-N

ANAYAK - VH-Plus-3000-NES-MIL-ANA-2001-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
ANAYAK VH-Plus-3000-N milling machine

Show in original language

This ANAYAK VH-Plus-3000-N milling machine was built in the year 2001 in Spain. It is equipped with a Heidenhain 426 control unit and has 3 axis. The machine has a spindle speed of 3000 rpm.

Overview

brand: ANAYAK
year: 2001
MODEL: VH-Plus-3000-N
application type: Milling
Location: Spain
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - ANAYAK VH-Plus-3000-N

General Data

Machine weight: 25000 kg

Control Unit

Model: 426
Brand: HEIDENHAIN

Main drive

Spindle speed range: 3000 1/MIN
Spindle motor power: 30 kw
Number of axis: 3

Movement

X-AXIS Movement: 3000 mm
X-AXIS Rapid traverse: 20000 mm/min
Y-AXIS Movement: 1270 mm
Y-AXIS Rapid traverse: 20000 mm/min
Z-AXIS Movement: 1070 mm
Z-AXIS Rapid traverse: 10000 mm/min

Table

Outer length: 3200 mm
Outer width: 1100 mm
Table load: 6000 kg

Tools

Type of tool holder: ISO 50

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between slots: 120 mm
- - Working feed rate: 5000 mm/min
- - Universal head manual

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
