AMADA LC-3015 X1 NT
AMADA - LC-3015 X1 NT
2006
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- AMADA LC-3015 X1 NT Laser cutting machine

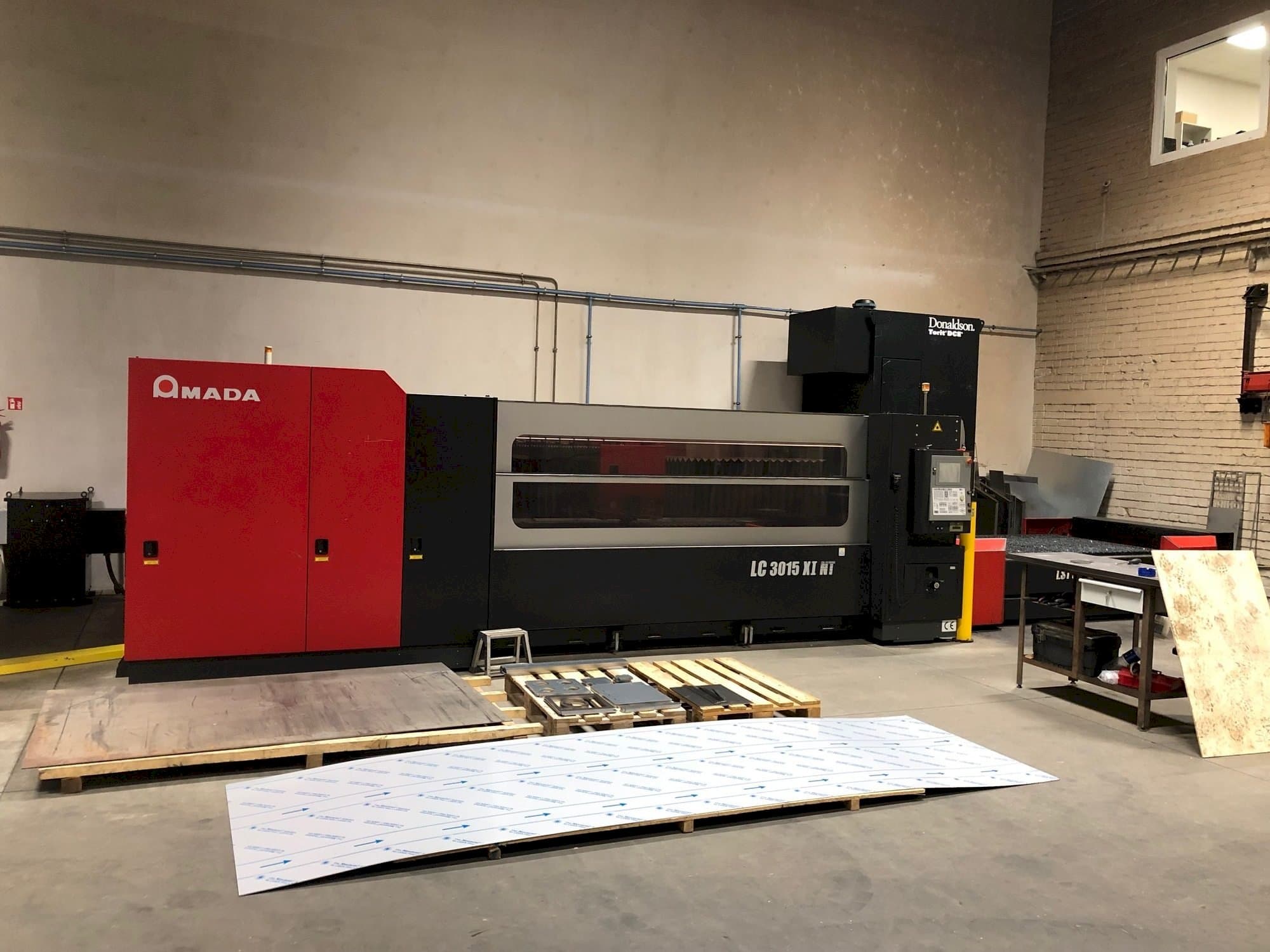

This AMADA LC-3015 X1 NT Laser cutting machine was made in 2006 in Japan and has 5000 production hours. It is equipped with an Amada LC20BP2 control unit. The machine has a laser power of 4 kW and includes a pallet changer as additional equipment. Service History available, yearly serviced.
Overview
- brand: AMADA
- year: 2006
- MODEL: LC-3015 X1 NT
- production hours: 5000
- application type: Laser Cutting
- Location: Lithuania
- machine type: Laser Cutting Machines (CO2)
- availability: Sold
- control unit brand: AMADA
- GINDUMAC ID: LT-LAS-AMA-2006-00001
Technical Information
General Data
- Measurements width: 6670 mm
- Measurements depth: 3260 mm
- Measurements height: 2100 mm
- Machine weight: 11700 mm KG
Control Unit
- Brand: AMADA
- Model: LC20BP2
- CNC main language: English
Main drive
- Laserpower: 4 kW
Movement
- X-AXIS Movement: 3100 mm
- Y-AXIS Movement: 1550 mm
- Z-AXIS Movement: 120 mm
Workpiece
- Workpiece drm: 3150 mm
- Workpiece x: 1525 mm
- Workpiece y: 19 mm
- Workpiece weight: 690 kg
Max Material thickness
- Steel: 20 mm
- Stainless steel: 15 mm
- Aluminum: 12 mm
Media
- Power consumption: 71 kVa
Additional Equipment
- - Pallet changer
Additional Information
- Technical Machine Benefits:
- - Position tolerance: (x/y axis): 0. 005mm/500mm, (z axis): 0. 1mm/100mm
- - Number of pallets (pallet changer): 2 pcs.
- - Dimensions pallet changer: (l x w x h) 3430 x 2310 x 850 mm
- - Cutting speed: 0-30 m/min
- Qualitative Machine Benefits:
- - Service history available, yearly serviced
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
