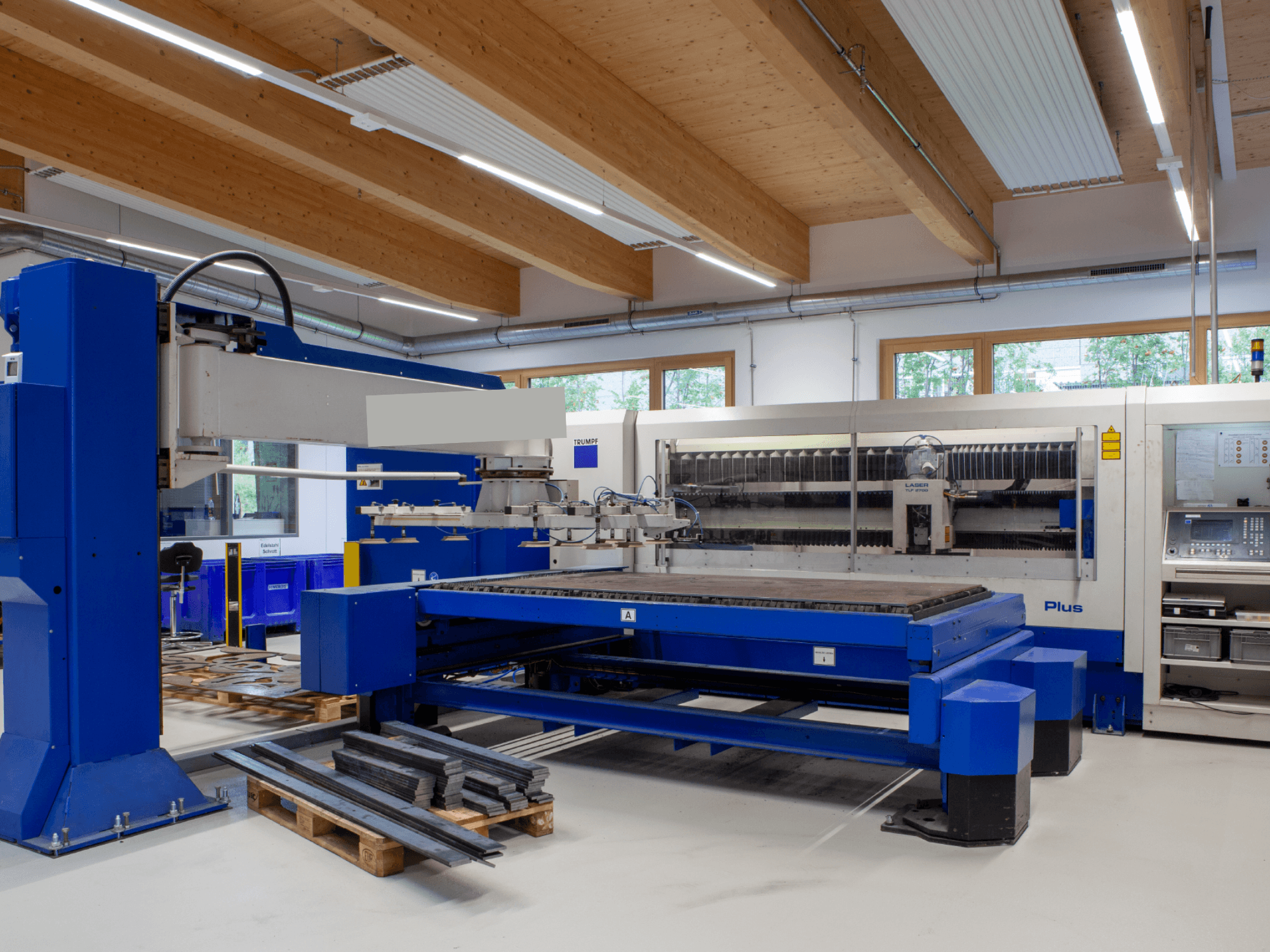

TRUMPF - TRUMATIC L 2530 PlusDE-CUT-TRU-2005-00002

- Mains Supply: 400 V / 50 Hz

- Connected Load: 63 kVA

- Control Voltage: 24 V =

- Required Fuse Protection: 3x 100 A

- Compressed Air Connection: 7-10 bar

- Nitrogen Connection (N2): 30 bar

- Oxygen Connection (O2): 16 bar

- Standard Equipment: Hi-Las high-pressure cutting, Laser cutting head with 3.75" lens, Laser cutting head with 7.5" lens, Cutting head quick-change device, Automatic sheet outer edge detection, Positioning laser diode, Programmable cutting gas selection/pressure setting, Microweld, SprintLas, Capacitive height control (DIAS III), ContourLas, AutoLas Plus, Oil spray device, Automatic pallet changer, Working area lighting, Slag/small parts chute, Multi-chamber dust extraction, Compact dust extractor, Automatic shut-off, Safety devices, ToPs 100 lite, Tele-diagnosis device, RJ45 network connection

- Special Equipment & Accessories: 3.5" floppy disk drive, Detailed operating manual, Automatic pallet changer with safety light barrier, AutoLas Plus, Clamping jaws for Pallet A+B (4 pcs each), Additional 3.75" laser cutting head, Loading device (overhauled in workshop 2017), Programming software TRUMPF TruTops Laser, Gas fittings, Teleservice via Internet

- Chiller Unit (Riedel L15/21-TR3.23, YOM: 10/2004): 400 V / 50 Hz, 42 A, IP54, Refrigerant R134a (11.5 kg), Max working pressure 20.2 bar

Storemaster:

- Drawer Usable Area: 2,500 x 1,250 mm

- Max Load per Drawer (evenly distributed): 3,000 kg

- Max Load per Top Level (evenly distributed): 3,000 kg

- Max Load per Rack Block (evenly distributed): 60,000 kg

- Max Load at Crane Hook: 325 kg

- Max Load under Vacuum Lifter (evenly distributed): 180 kg

- Special Equipment: SCHMALZ vacuum lifter

- Dimensions (from technical drawing): Height ca. 3,500 mm / 4,170 mm (modified/adjusted height ca. 3,500 mm), Width ca. 3,600 mm - 5,900 mm depending on layout/extension, Depth ca. 2,700 mm - 4,700 mm

- Upper Grid Floors Capacity: 7,500 kg surface load each
