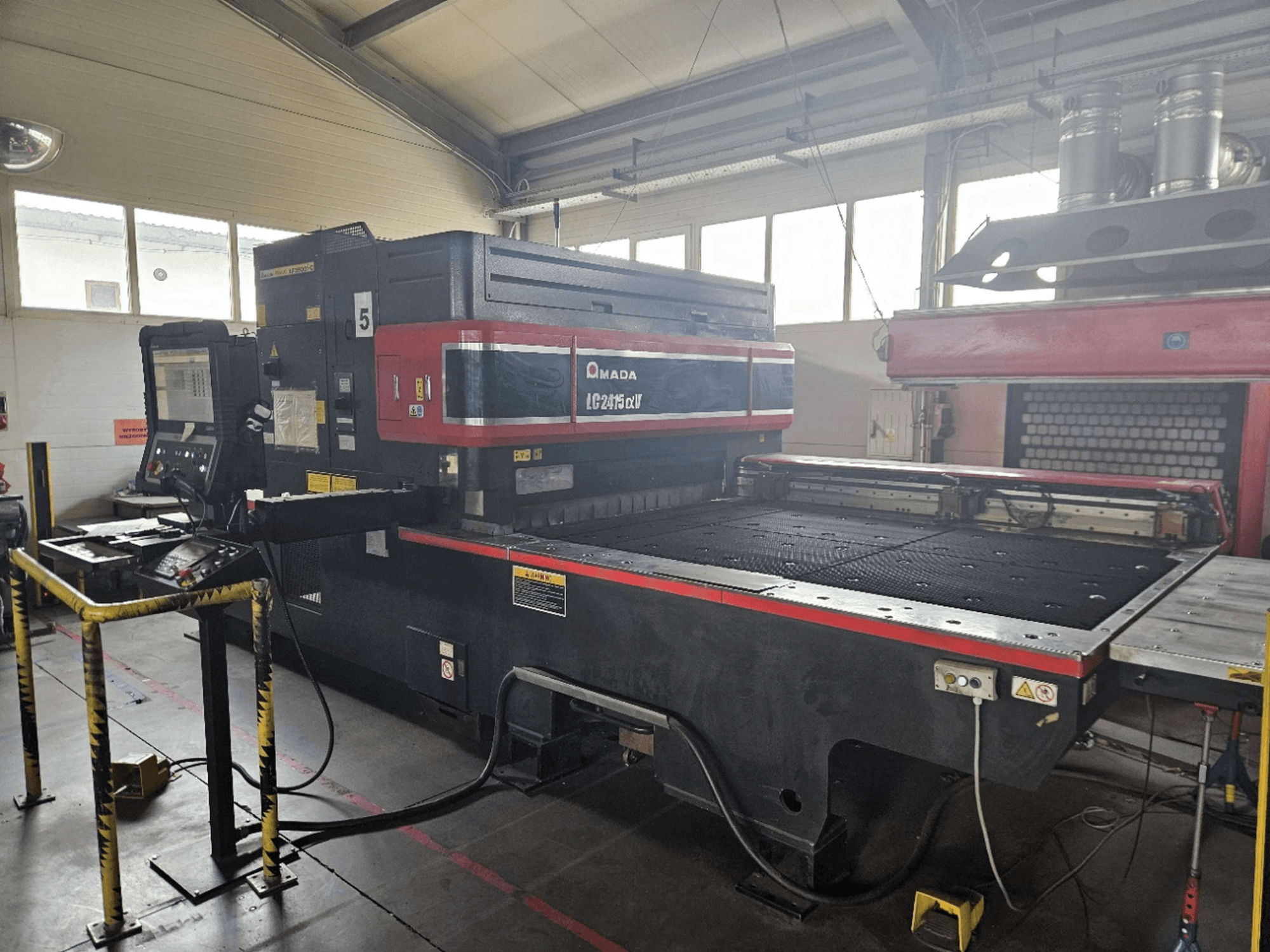

This 3-axis AMADA LC2415 Alpha 5 was manufactured in 2017. It features a maximum processing area of 5,040 × 1,550 mm and a powerful 3,500 W CO₂ laser, capable of cutting mild steel and stainless steel up to 10 mm thick. The machine has a maximum simultaneous feed rate of 114 m/min and can handle workpieces weighing up to 330 kg. If you are looking to get high-quality cutting capabilities, consider the AMADA LC2415 Alpha 5 CO₂ laser cutting machine. Contact us for further details.
Overview
- brand: AMADA
- year: 2017
- MODEL: LC2415 Alpha 5
- production hours: 14429
- application type: Cutting
- Location: Poland
- machine type: CO2 Laser Cutting Machine
- control unit brand: AMADA
Technical Information - AMADA LC2415 Alpha 5
Control Unit
- Control Brand: AMADA
- Control Model: AMNC 3i
Dimensions
- Machine Height: 2271 mm
- Machine Length: 2630 mm
- Machine Weight: 7700 kg
- Machine Width: 5745 mm
Movement
- Number of Axes: 3
- X-axis Travel: 2520 mm
- Y-axis Travel: 1550 mm
- Z-axis Travel: 300 mm
Technical Specification
- Laser Power: 3.5 kW
Additional Information
Control: AMNC 3i
Controlled axes: X, Y, Z (three axes controlled simultaneously)
Maximum processing area: 5,040 × 1,550 mm (with one reposition)
Maximum simultaneous feed rate (X/Y): 114 m/min
Repeatable positioning accuracy: ±0.01 mm
Maximum workpiece weight: 330 kg
Processing surface height: 820 mm
Work chute size: 550 × 1,750 mm
Laser resonator: AF3500i-C
Laser type: Fast axial flow, high-frequency discharge excitation CO₂ laser
Wavelength: 10.6 µm
Maximum cutting thickness:
Mild steel: 10 mm
Stainless steel: 10 mm
Aluminum: 8 mm
Additional equipment
MP300 Automatic Sheet Loading System
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
