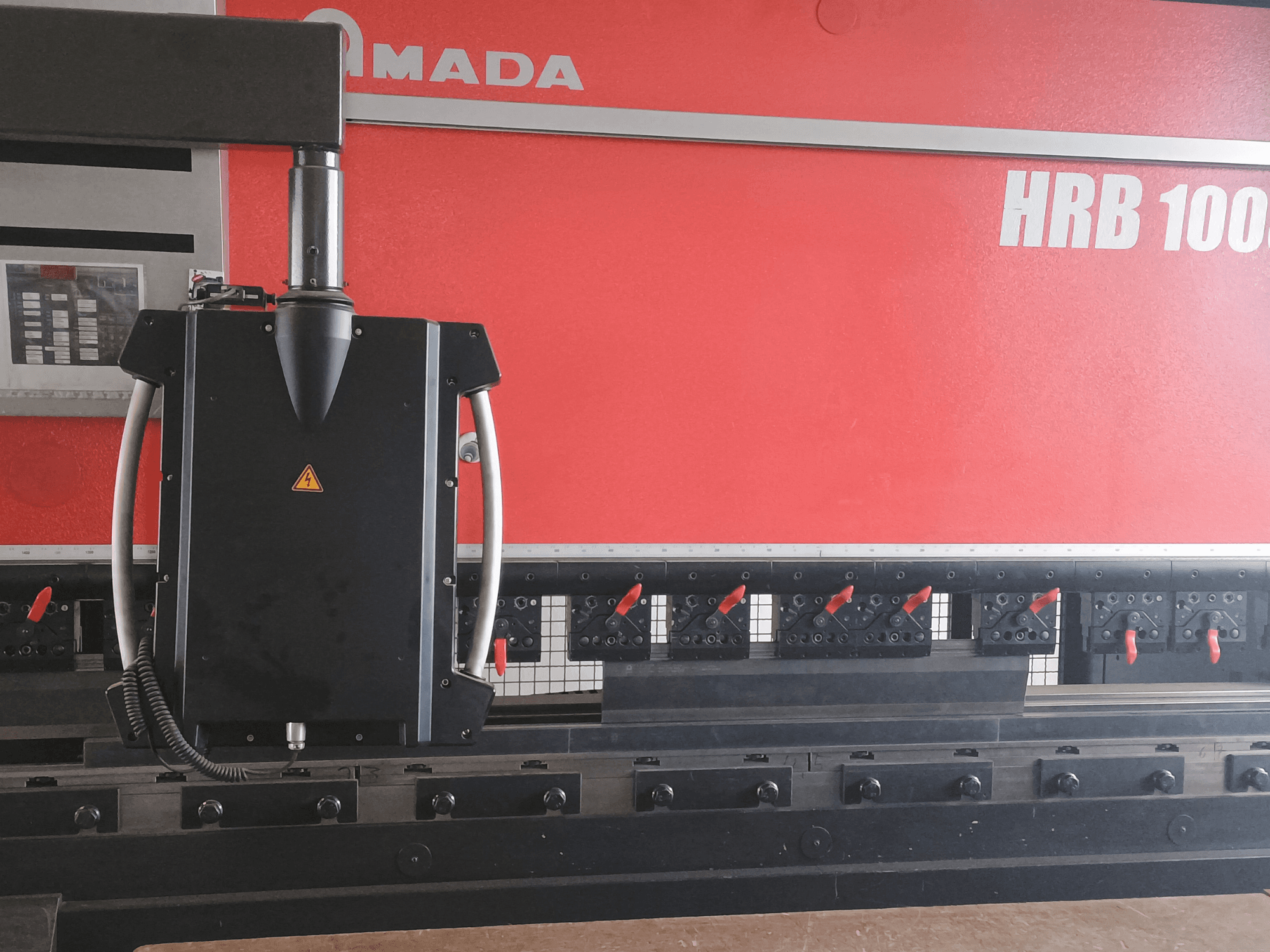

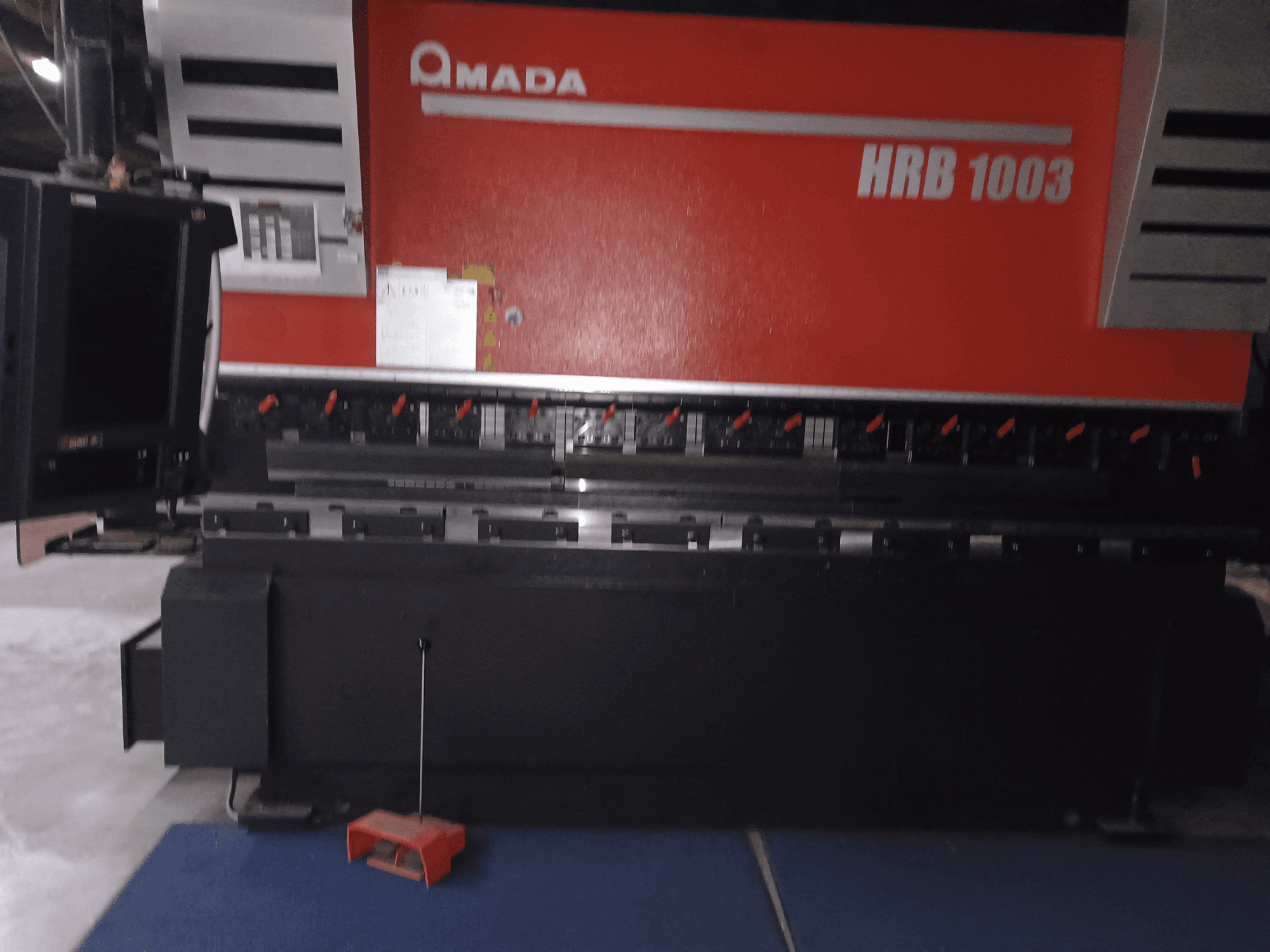

This 8s AMADA HRB 1003 press brake was manufactured in 2023. It features a press force of 1000 kN and a stroke of 250 mm, making it suitable for various applications. With a weight of 7200 kg and a control system of AMNC3i with Lite Mode, it offers advanced capabilities. Consider the opportunity to buy this AMADA HRB 1003 press brake. Contact us for further details.
Overview
- brand: AMADA
- year: 2023
- MODEL: HRB 1003
- application type: Bending
- Location: Germany
- machine type: Press Brake
Technical Information - AMADA HRB 1003
Dimensions
- Machine Weight: 7200 kg
Movement
- Number of Axes: 8
Technical Specification
- Pressing Force: 1000 Kn
Additional Information
Stroke: 250 mm
Voltage: 400 / 415 V
Frequency: 50 Hz
Phases: 3
Installed power: 18.6 kW
Full load current: 29.8 A
Noise level: 72 dB(A)
Press beam length: 3110 mm
Opening width: 520 mm
Axes: 7 programmable
Control: AMNC3i with Lite Mode
Configuration: Without crowning
Tool clamping: S-GRIP DUO
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
