➤ Used Alzmetall GS 1000/5-FDT For Sale | gindumac.com

Show in original language

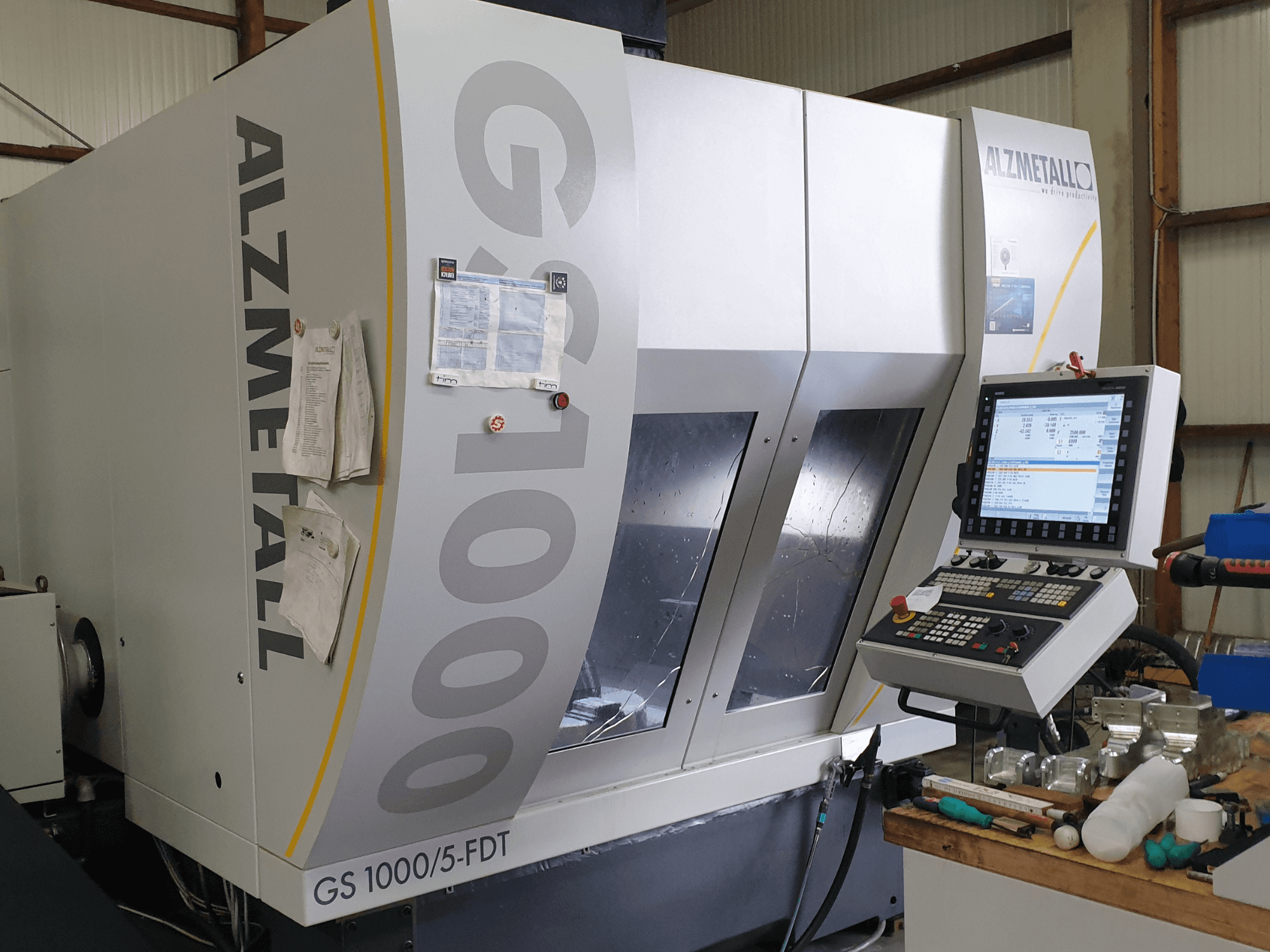

This 5-axis Alzmetall GS 1000/5-FDT was manufactured in 2018. It features a spindle speed of 12,000 RPM and a tool capacity of 125-126 positions, utilizing HSK 63 A and T holders for versatile operations. The machine includes a robust table load capacity of 1,000 kg and a high-pressure coolant system. If you are looking to get high-quality machining capabilities, consider the Alzmetall GS 1000/5-FDT vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Alzmetall
year: 2018
MODEL: GS 1000/5-FDT
production hours: 6000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Alzmetall GS 1000/5-FDT

Control Unit

Control Brand: SIEMENS

Dimensions

Table Load: 1000 kg

Movement

Number of Axes: 5
X-axis Travel: 800 mm
Y-axis Travel: 800 mm
Z-axis Travel: 600 mm

Technical Specification

Spindle Speed: 12000 RPM

Additional Information

- Tool Positions / Capacity: 125 - 126 tool positions

- Tool Holder / Taper: HSK 63 A and T (T-holder with turning function & spindle orientation for full turn-mill operations)

- Cooling System: 70 bar Internal High-Pressure Coolant, External Coolant, Internal & External Air Cooling

- Coolant Tank Volume: 1,000 L, equipped with a paper belt filter and a safety filter in the coolant line upstream of the spindle.

- Axis Configuration: 5-Axis (Torque motors in A and C axes for simultaneous milling/turning)

- Operating Hours: Approx. 6,000 hours

- Automation & Interface: Media supply (hydraulics & air), automatic door, prepared for automation, interface installed (robot missing)

- Spindle Protection: Double spindle protection

- Auxiliary Equipment: Chip conveyor, extraction unit (LTA Air Cleaning), external cooling/chiller unit

- Electrical Input: Reduced from 60 to 30

- Defects / Known Issues: Cracks in the front view windows due to previous tool breakage; tool chain ribbon has 1 fiber from a flat ribbed belt wrapped around it, causing stiffness and occasional emergency stops (E-stops)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
