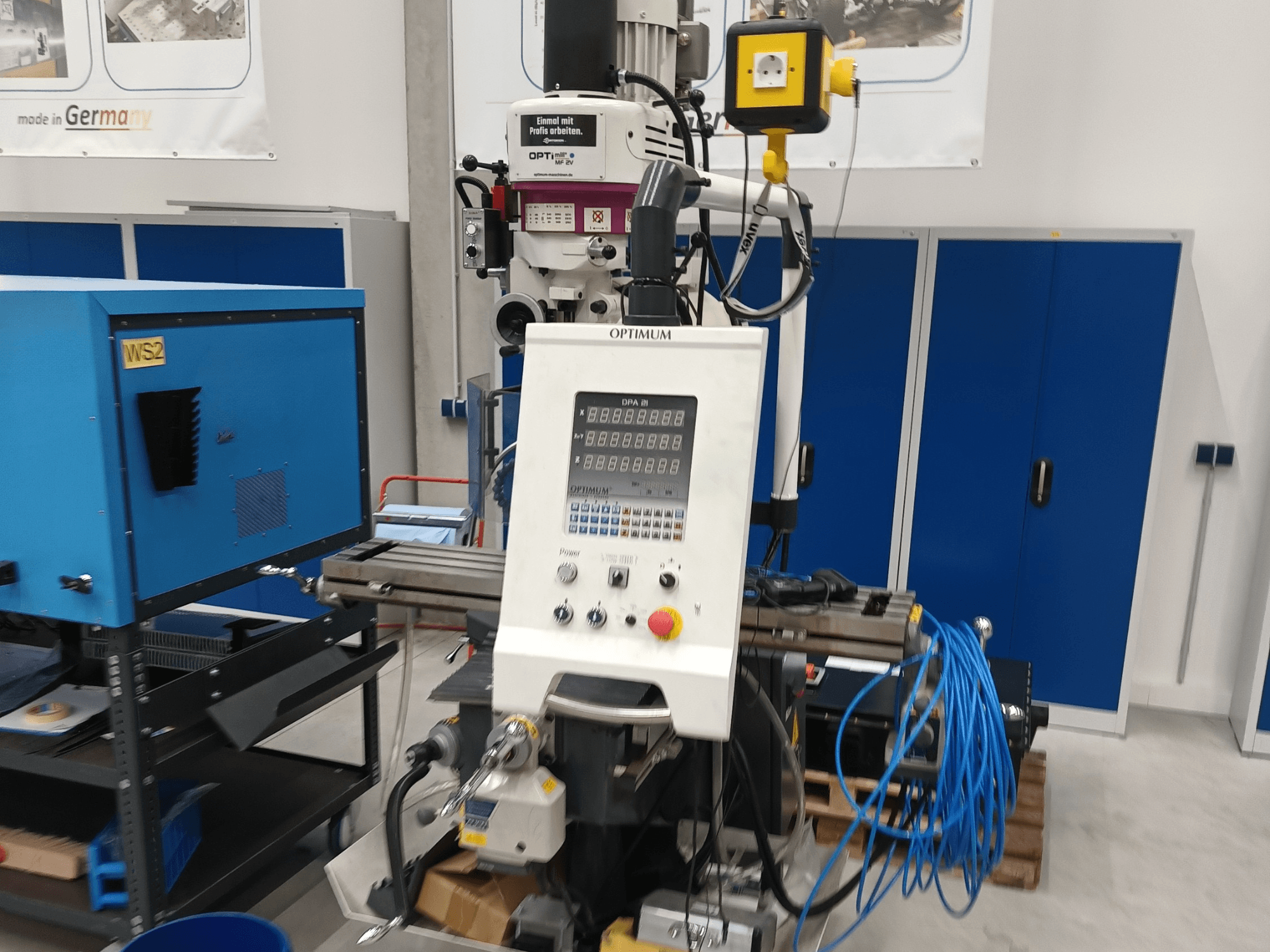

This 3-axis Optimum OPTImill MF 2V was manufactured in 2017. It features a maximum vertical spindle speed of 5100 rpm and a cutter head size of 76 mm. The machine includes a horizontal milling table with a length of 1244 mm and a maximum load capacity of 230 kg. If you are looking to get high-quality milling capabilities, consider the Optimum OPTImill MF 2V vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Optimum
- year: 2017
- MODEL: OPTImill MF 2V
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - Optimum OPTImill MF 2V
Dimensions
- Machine Height: 2150 mm
- Machine Length: 1400 mm
- Machine Weight: 950 kg
- Machine Width: 1450 mm
- Table Length: 1244 mm
- Table Load: 230 kg
- Table Width: 230 mm
Movement
- Number of Axes: 3
- X-axis Travel: 800 mm
- Y-axis Travel: 305 mm
- Z-axis Travel: 406 mm
Technical Specification
- Spindle Speed: 5100 RPM
Additional Information
- Type: Manual multifunctional 3-axis drilling and milling machine
- Digital Readout: DPA 21
- Modifications / Upgrades: Drive Upgrade
- Total Connected Load: Approx. 1.5 kW (may be higher due to modifications)
- Electrical Voltage: 400 V
- Phases: 3 Ph
- Current Type: ~
- Mains Frequency: 50 Hz
- Cutter Head Size Max.: 76 mm
- End Mill Size Max.: 18 mm
- Vertical Spindle Throat/Reach: 233 - 533 mm
- Vertical Spindle Tool Holder: ISO 40 DIN 2080
- Vertical Spindle Speed Range: 10 - 5100 rpm
- Vertical Spindle Number of Speed Ranges: 6
- Vertical Spindle Speed Control: Electronically adjustable
- Horizontal Milling Table Length: 1244 mm
- Horizontal Milling Table Width: 230 mm
- Distance Vertical Spindle to Horizontal Table Min.: 57 mm
- Distance Vertical Spindle to Horizontal Table Max.: 463 mm
- Horizontal Table T-Slot Size: 16 mm
- Horizontal Table T-Slot Number: 3
- Horizontal Table T-Slot Distance: 63 mm
- Horizontal Table Max. Load Capacity: 230 kg
- Number of Coolant Pumps: 800 mm automatic
- Vertical Spindle Continuous Duty S1 Drive Motor Power: 1.5 kW
- X-Axis Travel Automatic: 24 mm
- Y-Axis Travel Automatic: 20 mm
- Spindle Speeds: Stepless speed control
- Drilling/Milling Head Inclination: Tiltable ± 45°
- Reach / Throat: 215 - 533 mm MF 2Vario DPA
- Drilling Depth Stop: Adjustable with millimeter scale, readable from the front
- Protective Shield: Height-adjustable, large dimensions
- X-Axis: Motorized table feed, stepless speed control, rapid traverse, right/left rotation, cross table
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
