ALPHA LASER - ALV 150 SMIE-LAS-ALP-2010-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Sheet Metal Machinery
- Alpha laser ALV 150 SM Laser welding machine
Show in original language

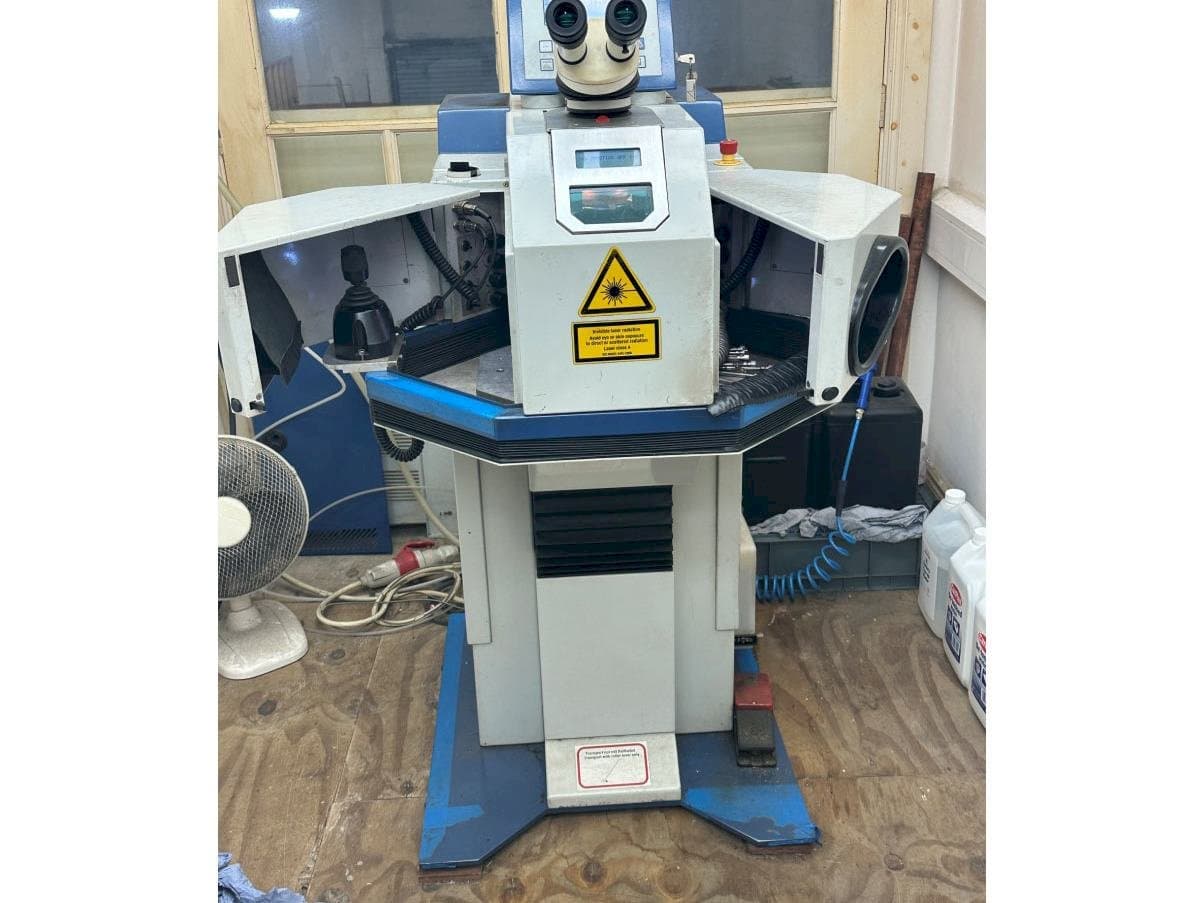

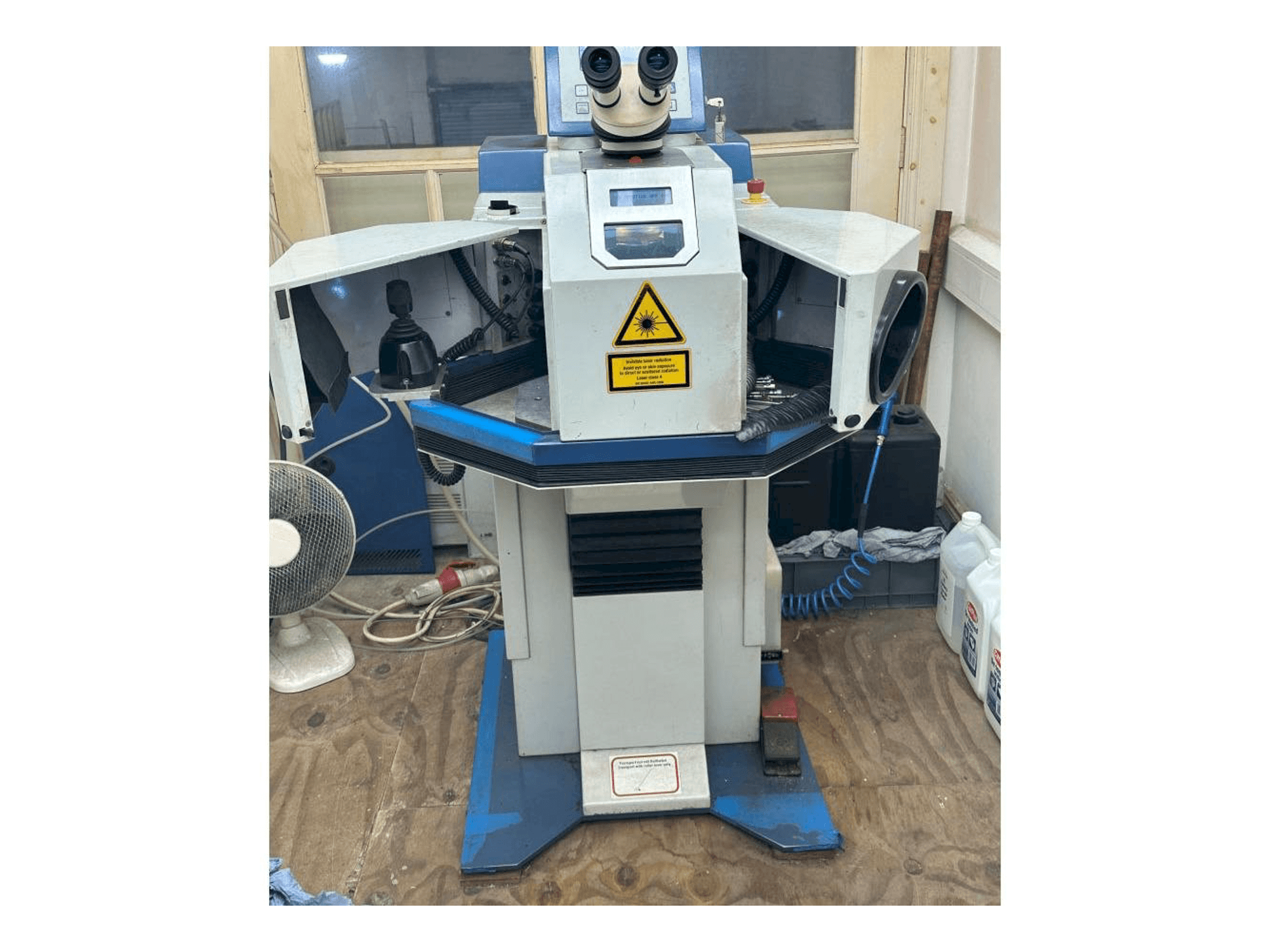

This Alpha laser ALV 150 SM Laser welding machine was made in 2010 in Germany. It is equipped with an Alpha laser control unit. The machine has a laser power of 0,16 kW, is in very good condition and well maintained.
Overview
- brand: ALPHA LASER
- year: 2010
- MODEL: ALV 150 SM
- application type: Welding
- Location: Ireland
- machine type: Laser Welding Machine
Technical Information - ALPHA LASER ALV 150 SM
Dimensions
- Machine Depth: 995 mm
- Machine Height: 1200 mm
- Machine Weight: 260 kg
Technical Specification
- Laser Power: 0.16 kW
Additional Information
Additional equipment
- Rotary axis module with chuck
Machine Benefits
Qualitative Machine Benefits
- Very good condition
- Cooling: integrated water-air heat exchanger
- Working chamber inside dims: 590 x 450 x 550mm
Technical Machine Benefits
- Compact machine
- Versatile machine
- Laser wavelength: 1064nm
- Max avg power: 160w
- Pulse energy: 0. 15 - 75ws
- Peak pulse power: 0. 15 - 9. 0kw
- Pulse duration: 0. 5 - 20ms
- Pulse frequency: single pulse - 20hz
- Diameter of focal spot: 0. 3 - 2. 2mm
- Focus setting: motorised
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
