ALPHA LASER - ALM 300PL-WEL-ALP-2019-00001

£ 81,502
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

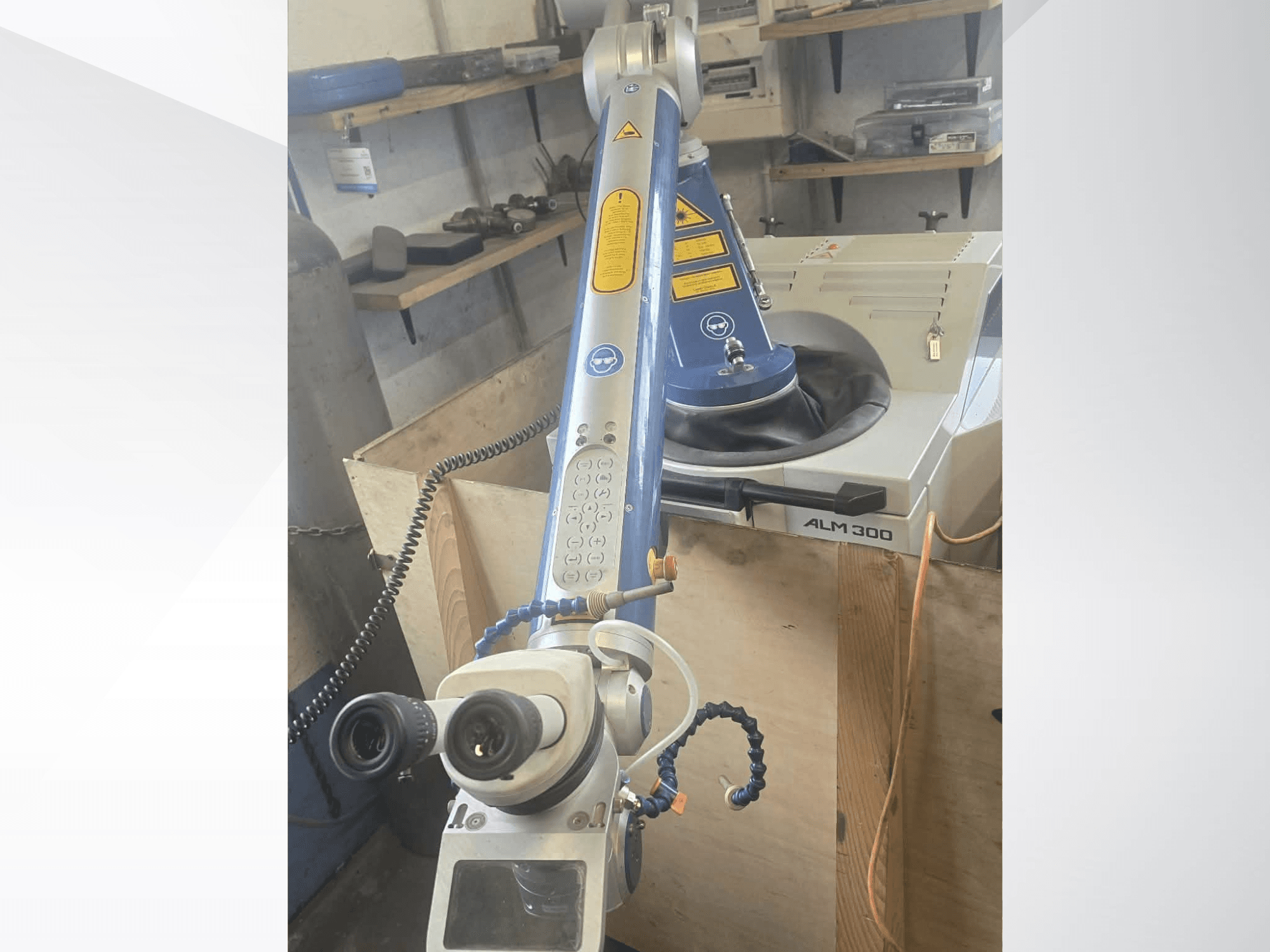

This 3-axis ALPHA LASER ALM 300 was manufactured in 2019. It features a powerful Nd:YAG laser with an average power of 300 W and a peak pulse power of 9 kW. The movement range is 120 × 110 × 800 mm, allowing for versatile applications. If you are looking to get high-quality laser welding capabilities, consider the ALPHA LASER ALM 300 machine we have for sale. Contact us for further details.

Overview

  • brand: ALPHA LASER
  • year: 2019
  • MODEL: ALM 300
  • production hours: 380
  • application type: Welding
  • Location: Poland
  • machine type: Laser Welding Machine

Technical Information - ALPHA LASER ALM 300

Dimensions

  • Machine Height: 1585 mm
  • Machine Weight: 300 kg
  • Machine Width: 730 mm

Technical Specification

  • Laser Power: 0.3 kW

Additional Information

  • Laser type / wavelength: Nd:YAG, 1,064 nm

  • Operating mode: Pulsed

  • Average power: 300 W

  • Peak pulse power: 9 kW

  • Pulse energy: 90 J

  • Pulse duration: 0.5–20 ms

  • Pulse frequency: Single pulse up to 100 Hz

  • Welding spot diameter: 0.2–2.0 mm

  • Focusing objective: 150 mm (further lenses per lens data sheet)

  • Work area / axes:

    • Movement speed (X/Y/Z): 0–25 mm/s

    • Movement range (X/Y/Z): 120 × 110 × 800 mm

    • Lowest working point: 530 mm

    • Highest working point: 1590 mm

    • Arm deflection: 1300 mm

  • Observation lens / ergonomics: Microscope attachment with eyepieces for glasses wearers 10×

  • Electrical connection: 3 × 400 V / 50–60 Hz / 3 × 16 A

  • Condition: Demo/showroom use only; excellent technical and visual condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
