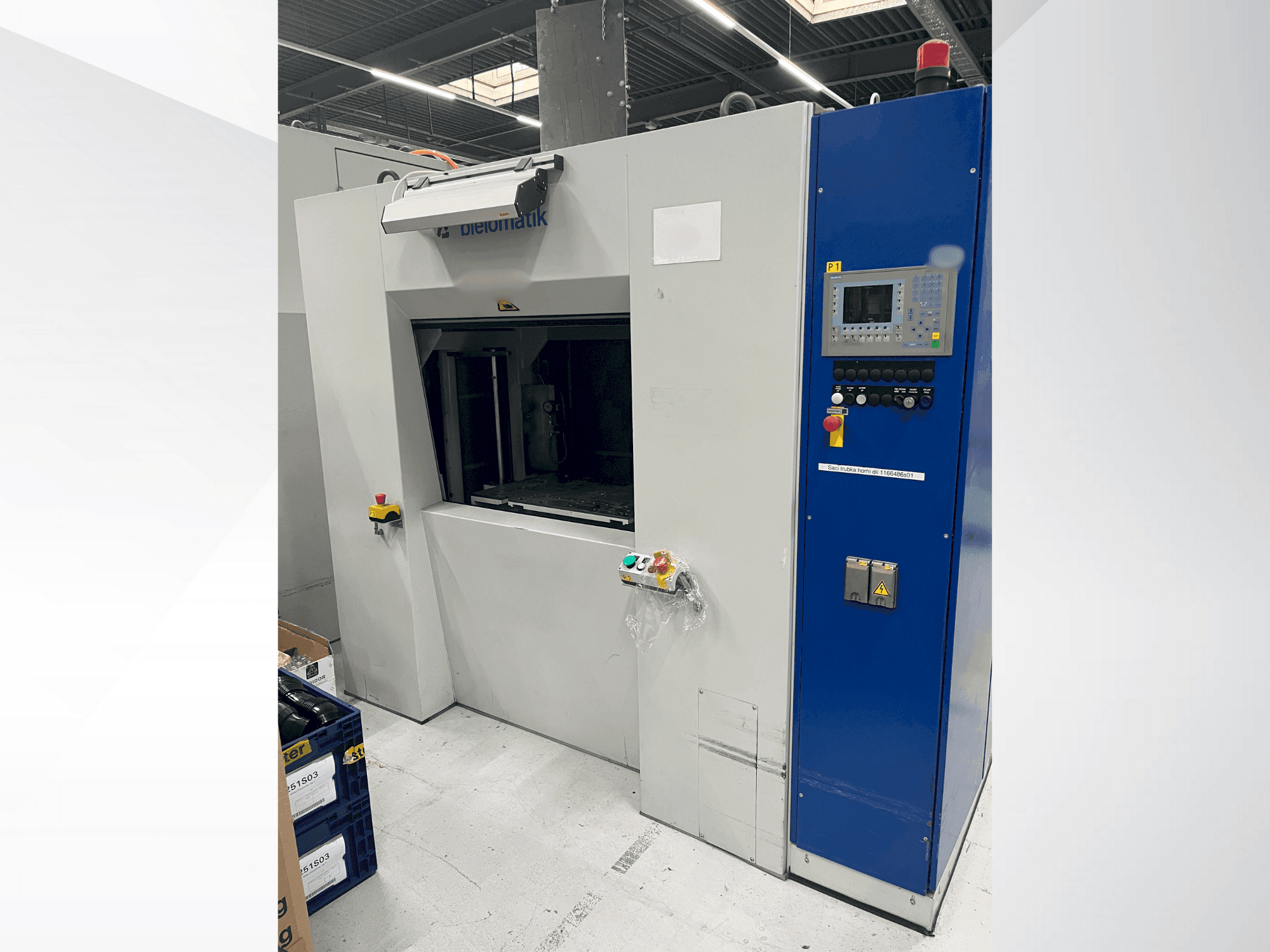

bielomatik - K3212DE-OTH-BIE-2014-00002

Machine Benefits

Qualitative Machine Benefits

• Clamping area of the lift table: max. 920 mm x 530 mm
• Clamping area of the vibration unit: max. 900 mm x 540 mm
• Amplitude (setpoint): 0. 3–1. 2 mm with a resolution of ± 0. 01 mm
• Tolerance, adjustable in steps: ± 0. 1 mm to ± 0. 4 mm
• Frequency range: approx. 170 hz – 240 hz
• Welding force: max. 11400 n
• Drive forces: up to max. 2 x 10700 n
• Amplitude must be set approximately 0. 2 mm smaller than the minimum clearance of the welding parts to prevent damage to the vibration unit.
• Cycle times depend on several factors, including the quality and uniformity of the welding parts, machine maintenance, and the availability of welding parts.

Technical Machine Benefits

• Rated voltage: 3 phases / 380 v
• Frequency: 50 hz
• Full-load current: 25 a
• Fuse protection power supply: 32 a
• Short circuit breaking capacity: 10 ka
• Power equipment: 17 kva
• Control voltages: ac 230 v / dc 24 v
• Floor space required: approx. 5600 x 4800 mm
• Lift table (vertical stroke): max. 500 mm
• Opening width: max. 705 mm

Extra Information

Machine still under power
