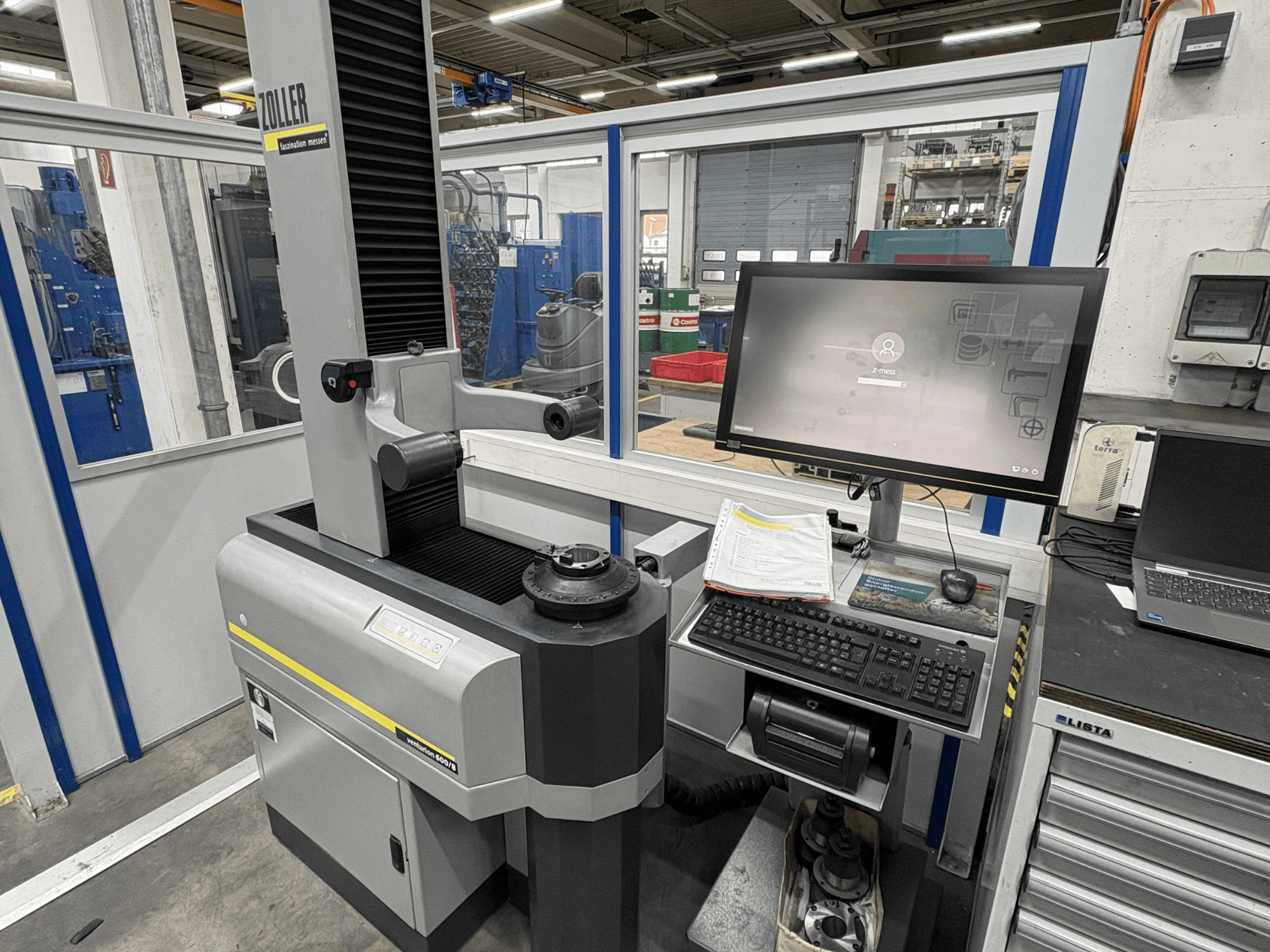

Optical measurement machine manufactured in 2009. This Zoller Venturion 600/8 features a maximum tool length of 800 mm and a maximum tool diameter of 440 mm. It is equipped with a tool holder for SK50 and SK40. With a maintenance contract in place and annual calibration performed, this machine is in good condition. If you are looking to get high-quality optical measurement capabilities, consider the Zoller Venturion 600/8 machine we have for sale. Contact us for further details.
Overview
- brand: Zoller
- year: 2009
- MODEL: Venturion 600/8
- application type: Measuring
- Location: Germany
- machine type: Optical Measurement Machine
- control unit brand:
Technical Information - Zoller Venturion 600/8
Dimensions
- Machine Weight: 900 kg
Movement
- Number of Axes: 2
Additional Information
Condition: Good
Maintenance: Annual calibration performed
Maintenance contract: Yes
Operating shifts: 2
Tool holder: SK50 and SK40
Max tool length: 800 mm
Max tool diameter: 440 mm
Venturion 600/8 Pilot 3.0 CNC
CNC-Based Joystick Control
Max Tool Length Z = 800 Mm
Max Tool Diameter D = 440 Mm
Measuring Diameter D = 200 Mm
Power Supply 230 V
High Precision Spindle A.C.E. (I)
Runout Accuracy 0.002 Mm
Universal Tool Clamping For Steep Taper/ANSI/CAT/MAS-BT/HSK/Capto/KM
Autofocus System For Venturion 600
Rotary Encoder For Venturion 600
Presetter For Shrinking Devices (SK 50)
Presetter For Shrinking Devices (SK 40)
ZOLLER Insert D 78/VSH Size 1
IPC Electronics 2-Axis Pilot 3.0 CNC Version
Operating System Windows XP
Control Unit Cockpit Pilot 3.0 With 17" TFT Color Display Touchscreen Keyboard Mouse Storage For Labels And
Laser PrinterStandard Functions Pilot 3.0
Tool Management Standard
Data Output DNC With 3 Selectable Output Formats Included
Output Format Siemens 840D
Output Format Heidenhain TNC (TNC 407/410/415/415B/426/430/530/124)
Automatic Read/Write Station With Height Adjustment
NC1 Read/Write System Software
Automatic Positioning WZI Autofocus And Edge Detection Required
NC1 Drawing System Standard Data Interface
Manual Venturion/Pilot 3.0
Electrical Connection 230 V 50/60 Hz
Pneumatic Connection 6 Bar
Complies With DIN EN 61010 Safety Standards
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
