Zayer BF2200 Milling Machine

Show in original language

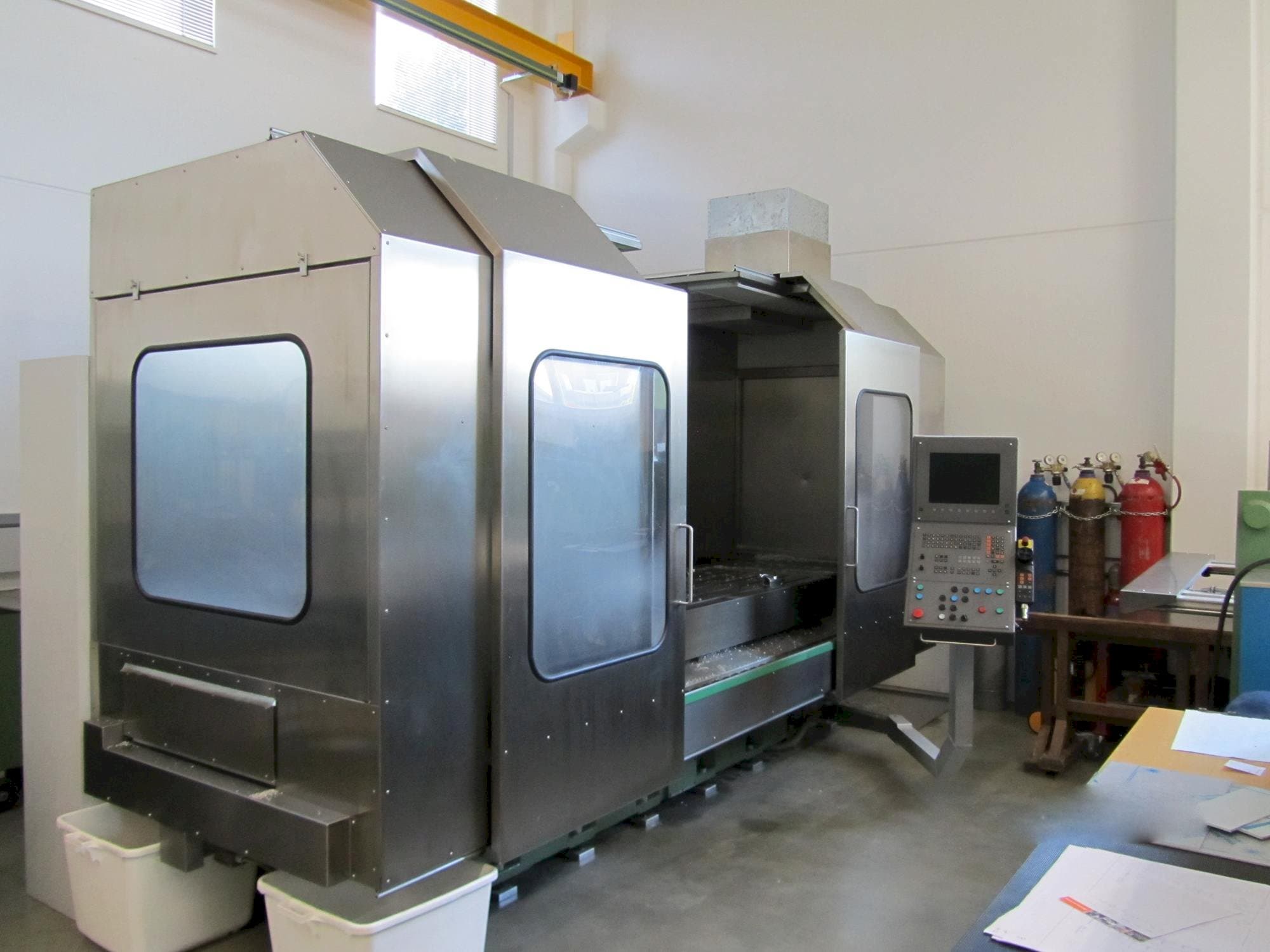

This Zayer BF2200 Milling Machine was built in 1991 and completely renovated in 2005. This machine has a working record of 7145 hours. It is operated through a HEIDENHAIN TNC426 control unit. This 3 axis machine can work with a spindle speed up to 6000 rpm and a table size 2200 x 800 mm. It includes manual books with electrical wiring diagrams.

Overview

brand: Zayer
year: 1991
MODEL: BF2200
production hours: 7145
application type: Milling
Location: Hungary
machine type: Gantry Milling Machine
control unit brand: HEIDENHAIN

Technical Information - Zayer BF2200

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC426

Dimensions

Machine Depth: 2400 mm
Machine Height: 3000 mm
Machine Weight: 15000 kg
Table Length: 2200 mm
Table Load: 4000 kg
Table Width: 800 mm

Movement

Number of Axes: 3
X-axis Travel: 1890 mm
Y-axis Travel: 1016 mm
Z-axis Travel: 1000 mm

Technical Specification

Spindle Power: 15 kW
Spindle Speed: 6000 RPM

Additional Information

Additional equipment

SK40 vertical head
SK50 HURON head (can be rotated at an angle)
Along with a couple of SK50 tool holders
Minimal lubrication
Measuring rods on all three axes
Electric handwheel
Slippers
Brand new, acid-proof enclosure system with integrated LED lighting
Backup winchester and data backup

Machine Benefits

Qualitative Machine Benefits

Completely renovated in 2005 (new drive system, new universal head, ball screws, acid-proof casing system and new controller)
It was only used for dry machining since their renovation

Technical Machine Benefits

Spindle cone: iso50
High speeds x / y / z = 35/35/30 m/min
Spiral chip conveyor
Machine manual, electrical wiring diagrams included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
